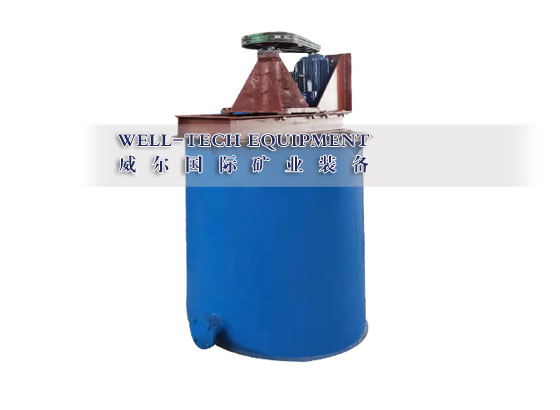

RJ Single Impeller Agitation Tank

RJ Single impeller agitation tank is the most popular model at present.


Description
RJ Single impeller agitation tank is the most popular model at present. The impeller is located in the bottom of the cycle barel in order to mix the ore pulp with chemical. By experiment, our new design will replace I II model agitation tank to improve the mixing efficiency.

Remark
1. The type of products like rubber impeller and nylon impeller shall be carried out according to the suer's demand. Please specify it when ordering.
2. The position of the motor, feed port and the outlet shall be installed according to customer’s requirements. Generally, relevant parts are assembled at the time of on-site installation.
3. There are two kinds of RJ agitation tanks: cone bottom and flat bottom. Please specify which type is demanded.

Main Technical Parameters

Model

Tank Diameter

(mm)

Tank Height

(mm)

Effective Volume

(m3)

Impeller Diameter

(mm)

Impeller Speed

(r/min)

Motor Model

Motor Power

(kw)

Weight

(kg)

RJ05

500

500

0.078

240

530

Y80M2-4

0.75

160

RJ07

750

750

0.26

240

530

Y80M2-4

0.75

228

RJ10

1000

1000

0.58

240

530

Y90S-4

1.1

350

RJ12

1200

1200

1.14

400

320

Y112M-6

2.2

765

RJ15

1500

1500

2.2

400

320

Y132S-6

3

1360

RJ20

2000

2000

5.5

550

230

Y132M2-6

5.5

1800

RJ25

2500

2500

11

625

230

Y160M-6

7.5

2270

RJ30

3000

3000

19.1

800

200

Y225S-8

18.5

4296

RJ35

3500

3500

29.5

850

190

Y225M-8

22

5580

RJ40

4000

4000

46

1000

160

Y250M-8

30

8036
