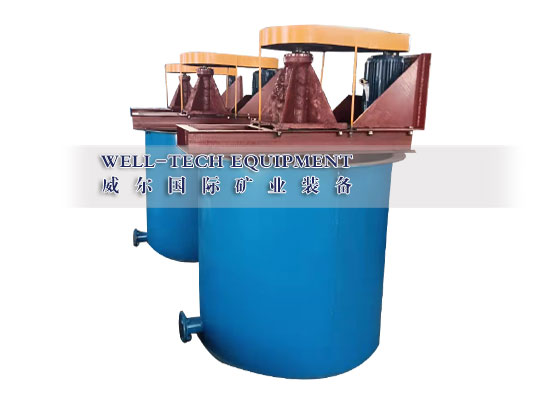

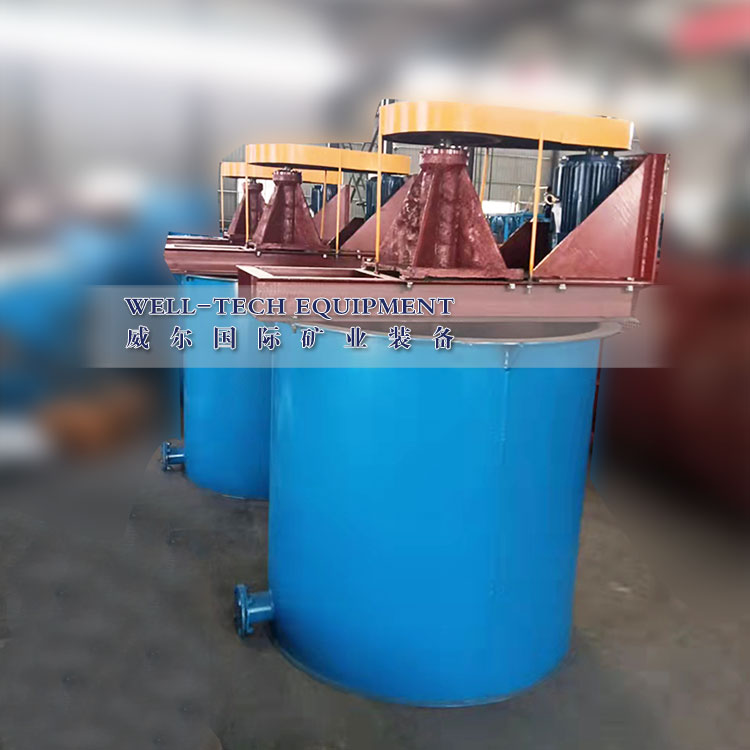

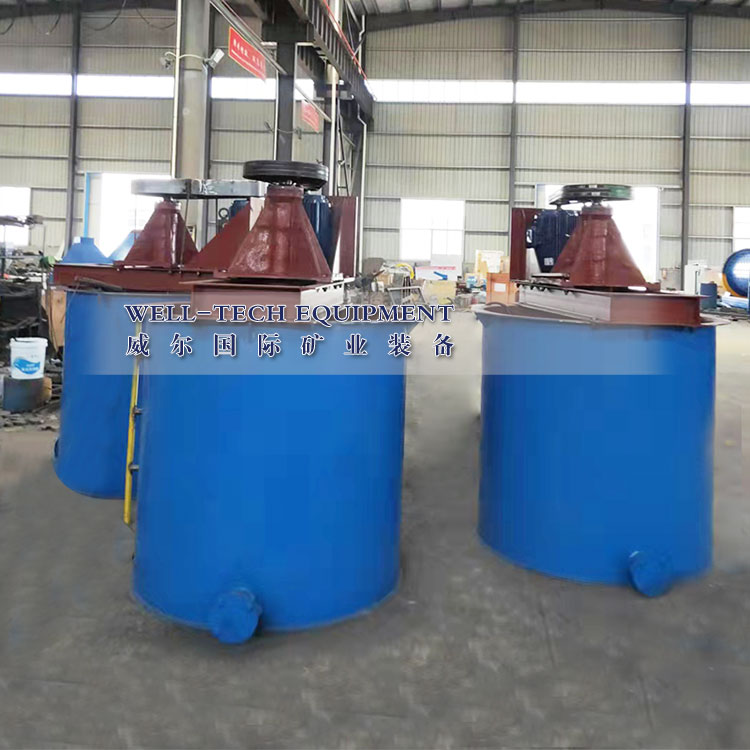

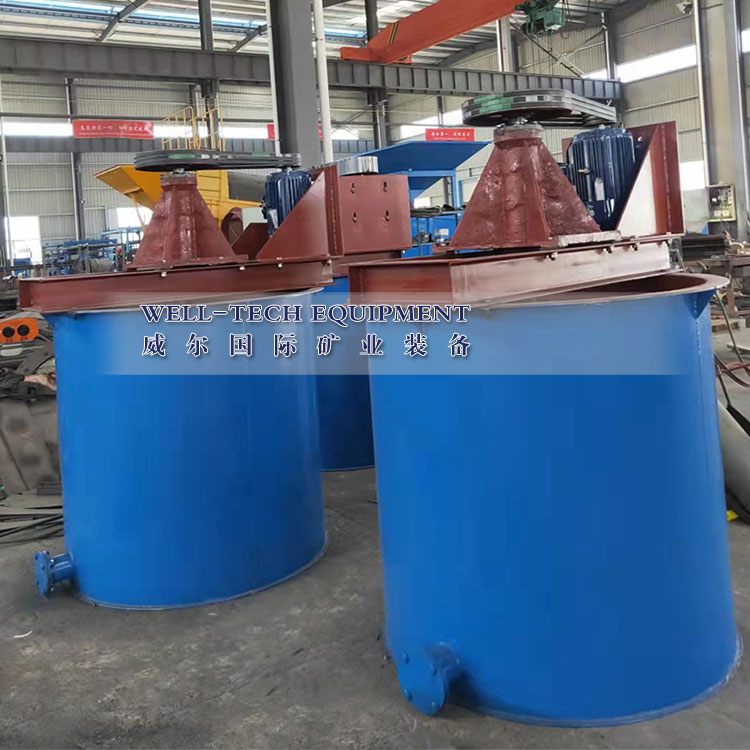

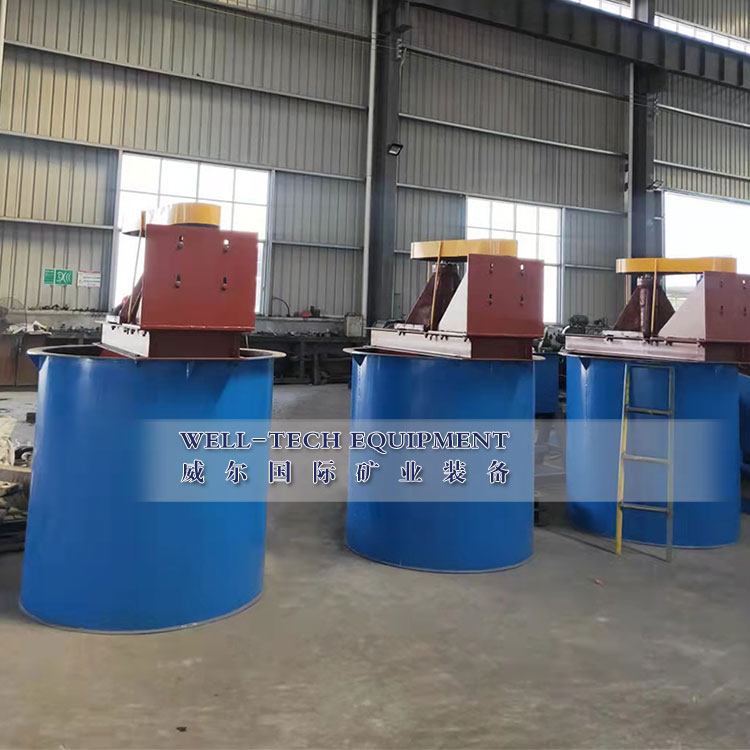

RJW Chemical Agitation Tank

With only paddle wheel and dam-board settled in it, according to the unique design of impeller, stiring and mixing become more effective. It is suitable for the factories that need stuff dissolution, ore pulp store and gold leaching. In addition, the product can also be applied to construction and chemical industries.


DescriptionParameter

Description

With only paddle wheel and dam-board settled in it, according to the unique design of impeller, stiring and mixing become more effective. It is suitable for the factories that need stuff dissolution, ore pulp store and gold leaching. In addition, the product can also be applied to construction and chemical industries.

Remark
The non-standard product shall be designed and made for the customer’s need, if there is no special requirement, the normal models shall be provided.

Main Technical Parameters

Model

Effective Capacity

(m3)

Impeller Rotating Speed

(rpm)

Impeller Diameter

(mm)

Motor Model

Motor Power

(kw)

Weight

(kg)

BJW-500x500

0.074

525

240

Y80M2-4

0.75

142

BJW-750x750

0.25

530

240

Y80M2-4

0.75

280

BJW-1000x1000

0.58

513

230

Y90S-4

1.1

420

BJW-1200x1200

1.4

401

380

Y112M-6

2.2

700

BJW-1500x1500

2.2

320

400

Y132S-6

3

1265

BJW-2000x2000

5.46

230

550

Y132M2-6

5.5

1850

BJW-2500x2500

12.26

230

630

Y160M-6

7.5

2681

BJW-3000x3000

17.5

200

800

Y225S-8

18.5

4620

BJW-3500x3500

29.5

190

850

Y225M-8

22

5380

BJW-4000x4000

46

200

1000

Y250M-8

30

7850
