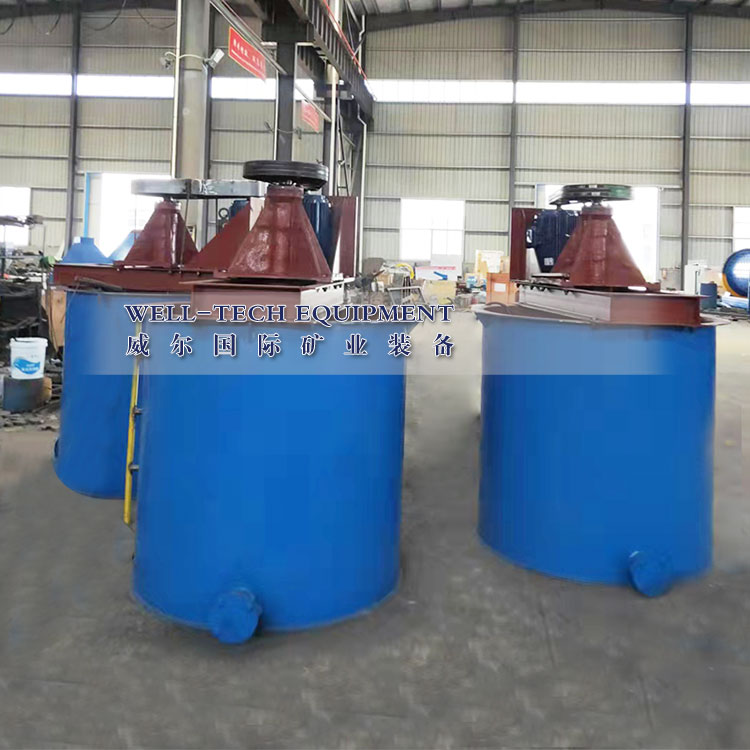

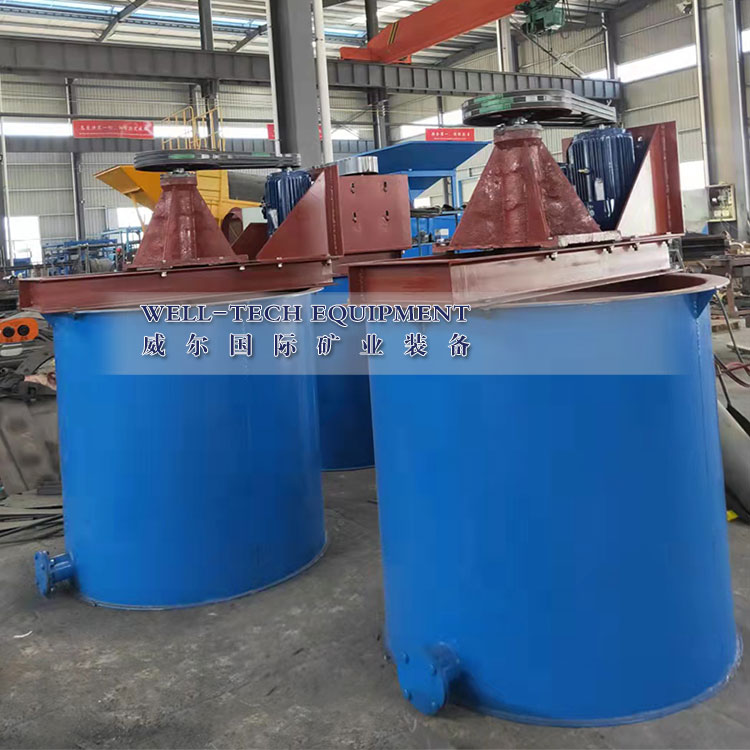

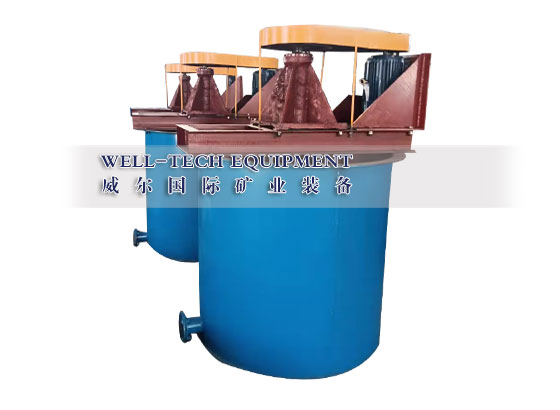

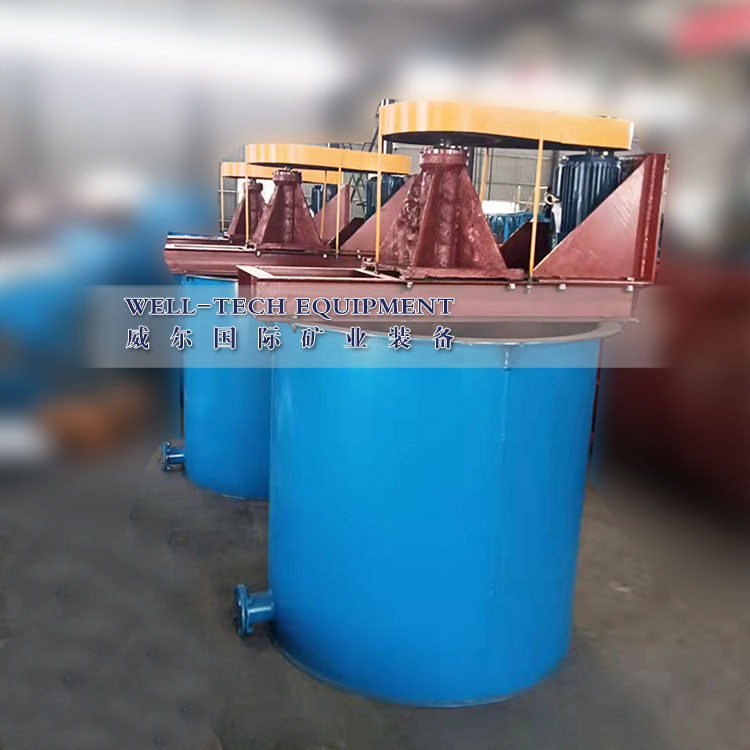

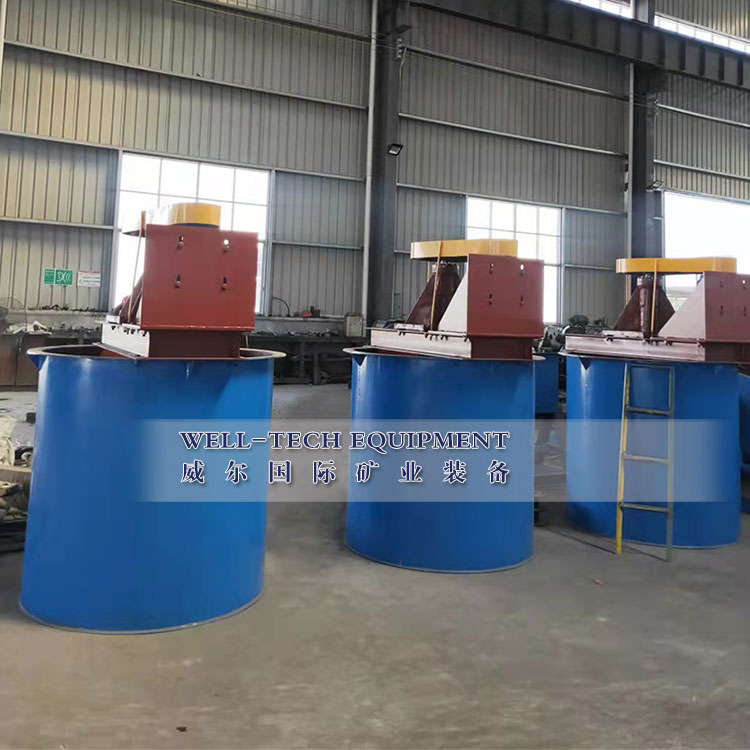

Description
This product is used in carbon paste flow and cyanidation process. The carbon-immersing tank should match other auxiliary devices like carbon-separating screen, and recessed impeller pump, etc. The structure features are as the following:
The upper and lower impeller adopt steel plate encapsulation type and bolt connection, which have good balance and long service life. The main shafts are divided into the upper andlower layers, which are connected by means of locating flanges, able to reduce sling height; multippint dispersion aeration has good gas mixing property.
Model |
Tub specifications
(mm) |
Effective volume
(m3) |
Impeller speed
(r/min) |
Impeller diameter
(mm) |
Ore removal pipe diameter
(mm) |
Ore removal diameter
(mm) |
Planetary cycloid reducer |
Weight
(kg) |
||
Model |
Speed ratio |
Power |
||||||||
Ф2.5*2.5 |
2500*2500 |
10.5 |
49.6 |
800 |
2-Ф133 |
2-Ф133 |
XLD2.2-4-29 |
29 |
2.2 |
2800 |
Ф2.5*3.15 |
2500*3150 |
13 |
49.6 |
935 |
2-Ф125 |
2-Ф125 |
XLD2.2-4-29 |
29 |
2.2 |
3120 |
Ф3.0*3.15 |
3000*3150 |
18.93 |
41 |
1130 |
2-Ф150 |
2-Ф150 |
XLD4-5-35 |
35 |
4 |
5300 |
Ф3.15*3.55 |
3150*3550 |
24 |
41 |
1260 |
2-Ф150 |
2-Ф150 |
XLD4-5-35 |
35 |
4 |
5488 |
Ф3.5*3.5 |
3500*3500 |
29 |
41 |
1310 |
2-Ф150 |
2-Ф150 |
XLD4-5-35 |
35 |
4 |
6646 |
Ф3.55*4.0 |
3550*4000 |
35 |
41 |
1310 |
2-Ф150 |
2-Ф150 |
XLD4-5-35 |
35 |
4 |
7820 |
Ф4.0*4.5 |
4000*4500 |
50 |
33.5 |
1500 |
2-Ф150 |
2-Ф150 |
XLD7.5-7-43 |
43 |
7.5 |
8285 |
Ф4.5*5.0 |
4500*5000 |
71.67 |
33.5 |
1750 |
2-Ф159*6 |
2-Ф159*6 |
XLD7.5-7-43 |
43 |
7..5 |
10800 |
Ф5.0*5.6 |
5000*5600 |
98 |
31 |
1900 |
2-Ф159*8 |
2-Ф159*8 |
XLD11-8-47 |
47 |
11 |
13340 |
Ф5.5*6.0 |
5500*6000 |
112 |
31 |
2100 |
2-Ф159*8 |
2-Ф159*8 |
XLD11-8-47 |
47 |
11 |
18745 |
Ф7.5*8.0 |
7500*8000 |
268.6 |
21 |
2900 |
2-Ф159*8 |
2-Ф159*8 |
XLD22-10-47 |
47 |
22 |
32796 |
Ф8.0*8.5 |
8000*8500 |
342 |
16.4 |
3200 |
2-Ф159*8 |
2-Ф159*8 |
XLD22-11-59 |
59 |
22 |
42467 |
Ф8.0*9 |
8500*9000 |
395 |
18.5 |
3300 |
2-Ф219*8 |
2-Ф219*8 |
Y250M-8 |
|
30 |
46623 |
Ф9.5*10 |
9500*10000 |
648 |
16.6 |
3750 |
2-Ф273*8 |
2-Ф273*8 |
Y250S-8 |
|
37 |
59786 |
Ф10.5*11 |
10500*11000 |
900 |
13.28 |
4400 |
2-Ф325*8 |
2-Ф325*8 |
Y315S-8 |
|
55 |
72647 |
Ф11.5*12 |
11500*12000 |
1190 |
12.1 |
4600 |
2-Ф325*8 |
Y315M-8 |
Y315M-8 |
|
75 |
95669 |
Ф12.*13 |
12000*13000 |
1414 |
13.4 |
4600 |
2-Ф377*8 |
Y315L1-8 |
Y315L1-8 |
|
90 |
10235 |
Ф13.*14 |
13000*14000 |
1740 |
10.7 |
5200 |
2-Ф377*8 |
JR125-8 |
JR125-8 |
|
95 |
148666 |
