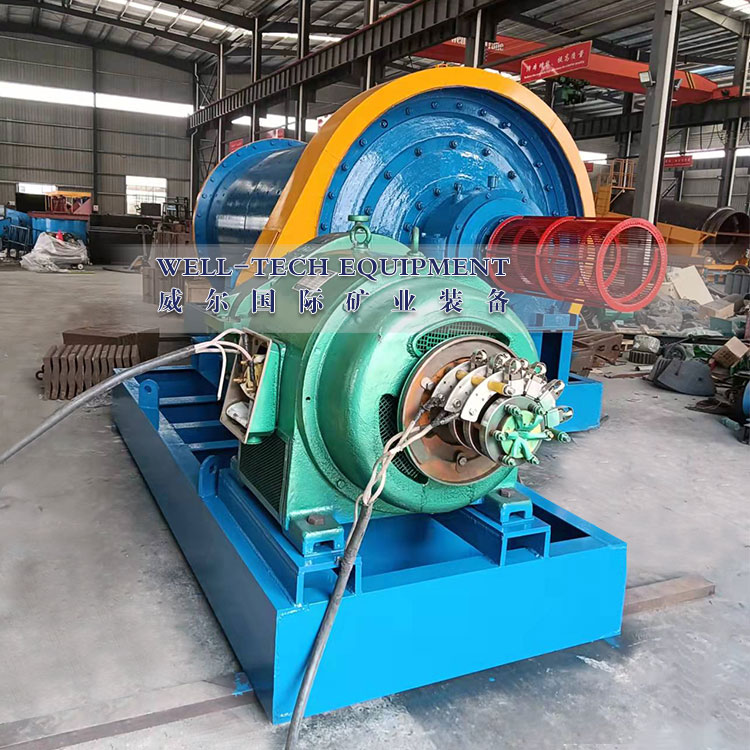

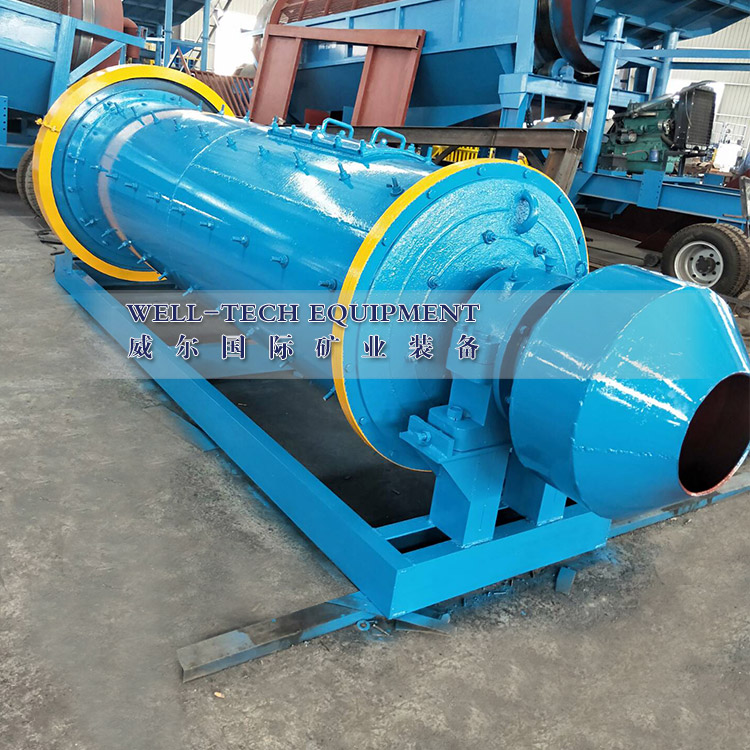

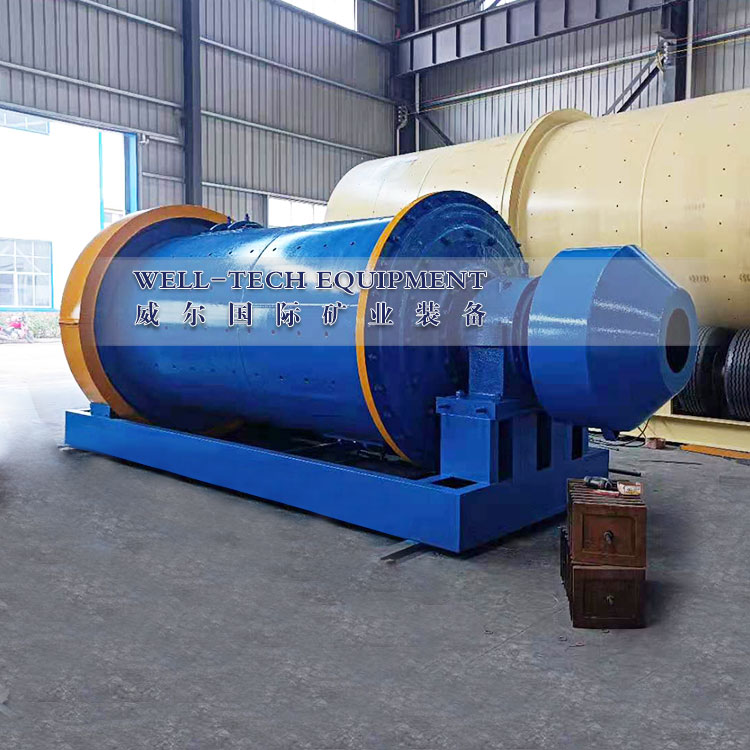

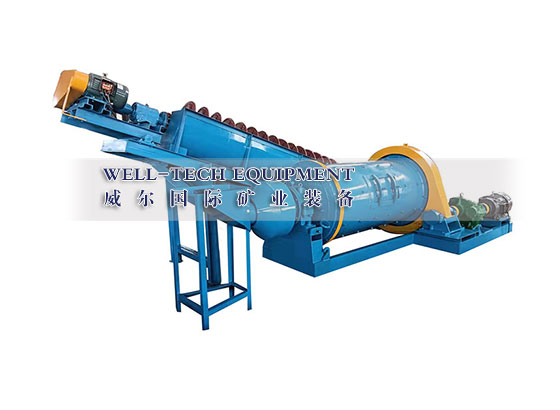

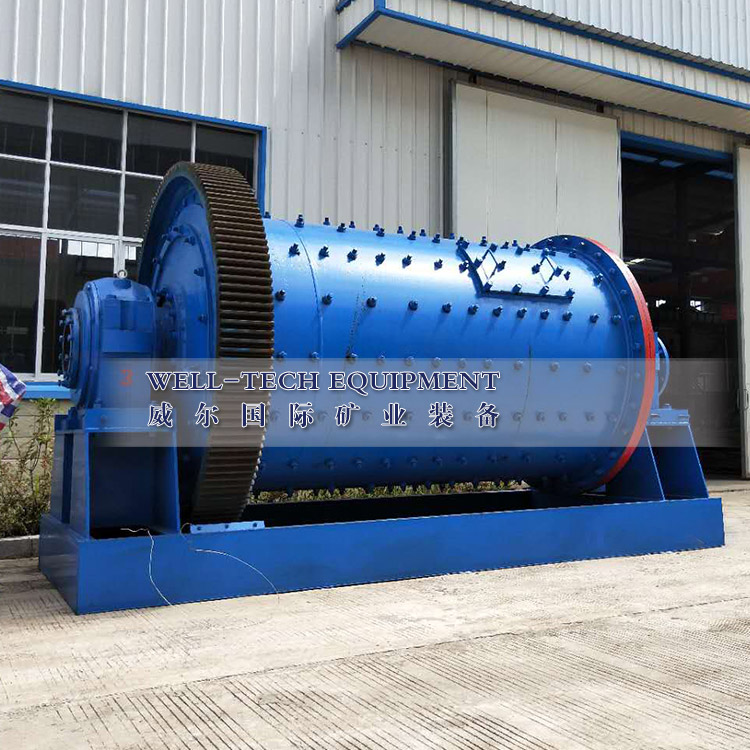

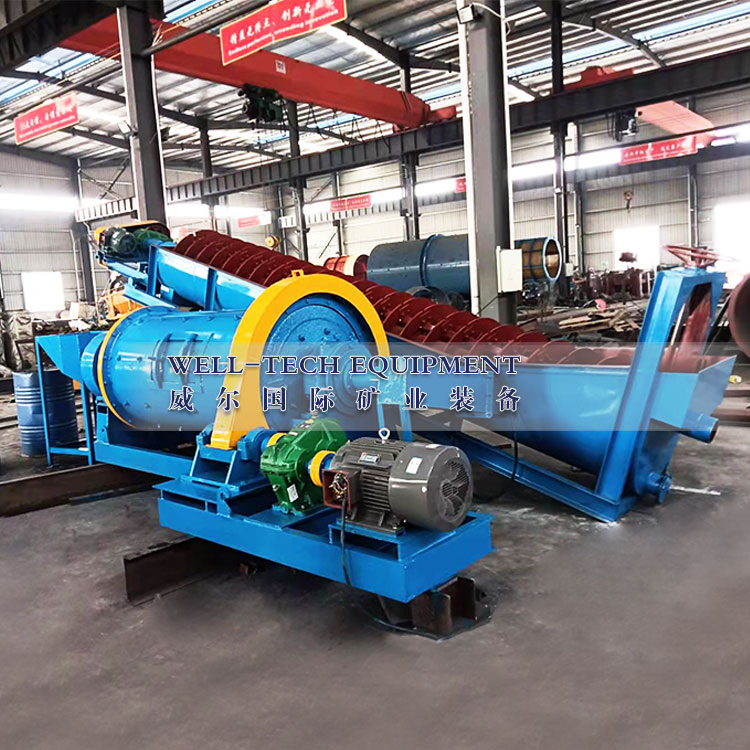

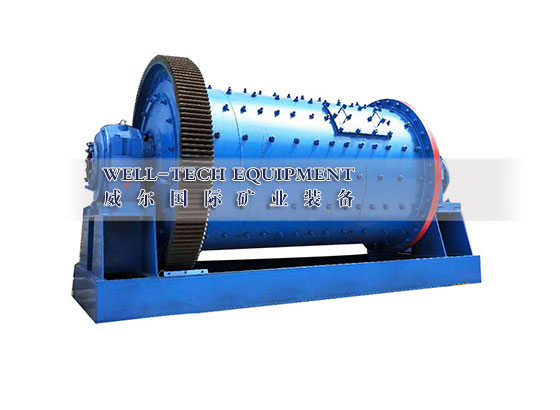

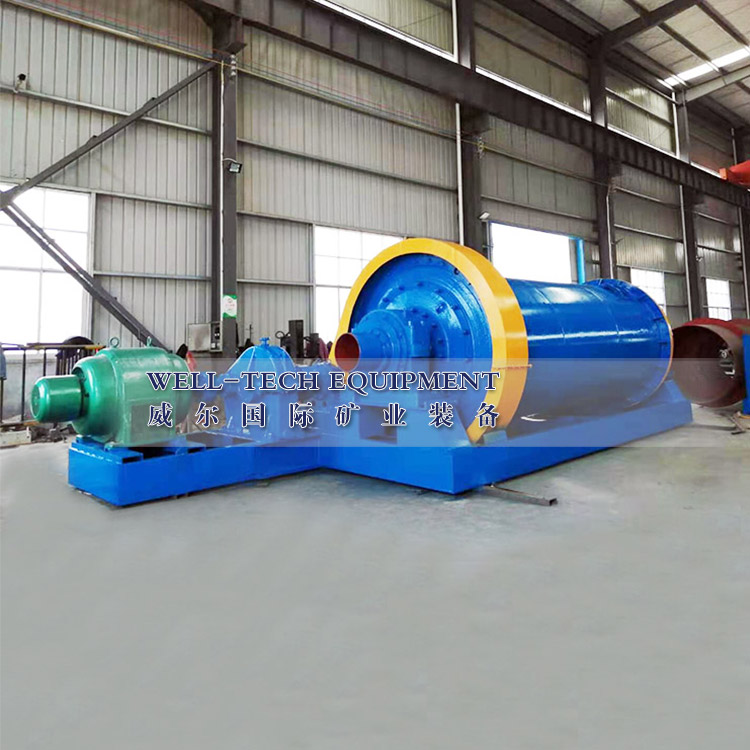

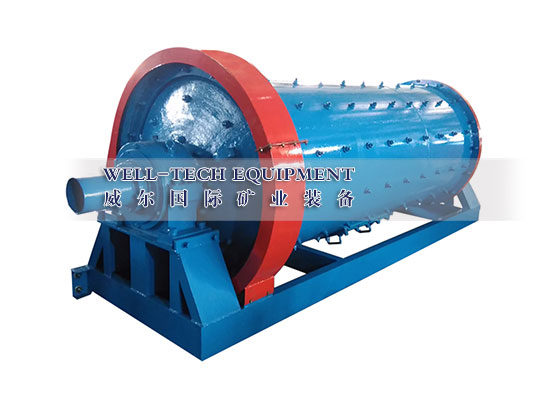

Ball Mill

The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.


Description
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. According to discharge in different ways, the ball mill can be divided into gate ball mill and overflow ball mill. The gate ball mill is enforced discharging, relatively the discharge would be coarser, but the capacity would be higher, usually the gate ball mill used for primary grinding, the overflow ball mill used for secondary grinding.
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Main Technical Parameters

Model

Shell rotation speed

(r/min)

Max ball load

(t)

Feeding size

(mm)

Capacity

(t/h)

Motor

Overall dimension

L×W×H

(mm)

Weight

(kg)

Model

Power

(Kw)

Φ900×1200

41.6

1.1

25

0.3~0.9

Y180L-8

11

3843×1850×1400

4210

Φ900×2100

41.6

1.8

25

0.6~1.5

Y180L-6

15

4743×1850×1400

6660

Φ900×3300

41.6

2.8

25

0.9~2.3

Y225M-6

30

5943×1850×1400

7770

Φ1200×2400

35.1

4.0

25

1.6~4.1

Y280S-8

37

5540×2300×1850

10020

Φ1200×2800

35.1

4.6

25

1.9~4.8

Y280M-8

45

5940×2300×1850

10935

Φ1200×3200

35.1

5.3

25

2.2~5.5

Y280M-8

45

6340×2300×1850

11230

Φ1200×4400

35.1

7.3

25

3.0~7.5

Y135S-8

55

7540×2300×1850

13210

Φ1300×2400

30.2

4.5

25

1.5~3.5

Y280S-8

37

5035×2370×1880

10210

Φ1300×2800

30.2

5.2

25

2.0~4.5

Y280M-8

45

5435×2370×1880

11290

Φ1300×3400

30.2

6.5

25

2.2~5.0

Y280M-8

75

6035×2370×1880

13117

Φ1500×2400

30.7

7.0

25

2.8~6.5

YR280S-8

55

6830×2930×2060

15430

Φ1500×3000

30.7

9.0

25

3.5~8.0

JR125-8

80

7430×2930×2060

16843

Φ1500×3300

30.7

10.0

25

4.0~9.0

JR125-8

95

7730×2930×2060

17849

Φ1500×3600

30.7

11.0

25

4.5~10.0

JR126-8

95

8030×2930×2060

18649

Φ1500×4000

30.7

11.11

25

4.8~10.5

JR126-8

110

9030×2930×2060

19103

Φ1500×4200

30.7

12.5

25

5.0~11.0

JR126-8

110

8630×2930×2060

19330

Φ1500×4500

30.7

13.5

25

5.5~13.5

JR127-8

130

8930×2930×2060

20000

Φ1500×5700

30.7

17.0

25

7.0~15.5

JR128-8

155

10130×2930×2060

23597

Φ1500×6300

30.7

19.0

25

8.0~17.0

JR127-8

155

10730×2930×2060

24390

Φ1830×3000

25.04

13.0

25

3.0~17.0

JR128-8

130

8456×3654×2250

29490

Φ1830×3400

25.04

14.0

25

3.3~20.0

JR128-8

155

8856×3654×2250

30390

Φ1830×3600

25.04

15.0

25

4.0~21.5

JR128-8

155

9056×3654×2250

31600

Φ1830×4000

25.04

17.0

25

4.5~24

JR128-8

155

9456×3654×2250

32700

Φ1830×4200

25.04

18.0

25

5.5~25.0

JR136-8

180

9656×3654×2250

33490

Φ1830×4500

25.04

19.0

25

5.2~26.0

JR136-8

180

9856×3654×2250

34210

Φ1830×5200

25.04

21.0

25

6.5~32.5

JR138-8

210

10040×3654×2250

37715

Φ1830×5600

25.04

21.9

25

7~35

JR138-8

245

10956×3754×2250

39290

Φ1830×6400

25.04

27.0

25

8.0~40.0

JR137-8

210

10220×3754×2250

42440

Φ1830×7000

25.04

27.3

25

8.5~45.0

JR138-8

320

10820×3754×2250

45590

Φ2100×2200

23.8

15.0

25

3.0~22.0

JR127-8

155

7775×4060×3400

38793

Φ2100×3000

23.8

20.0

25

4.0~30.0

JR136-8

180

8475×4060×3400

41965

Φ2100×3500

23.8

20.7

25

4.5~35.0

JR136-8

180

8820×4060×3400

44120

Φ2100×3600

23.8

21.0

25

5.0~37.0

JR137-8

210

9225×4060×3400

44551

Φ2100×4000

23.8

22.0

25

5.2~39.0

JR138-8

245

9475×4060×3400

46697

Φ2100×4500

23.8

23.8

25

5.2~40.0

JR138-8

245

9975×4060×3400

47000

Φ2100×5500

23.8

25

25

5.5~40.5

JR138-8

320

11135×4060×3400

50000

Φ2100×6000

23.8

28.5

25

5.8~40.5

JR138-8

380

11965×4060×3400

52000

Φ2400×3000

23.0

20

25

6~75

JR1413-8

280

9170×5005×3970

59850

Φ2400×3600

23.0

26.6

25

6.5~82

JR1413-8

280

9770×5005×3970

63684

Φ2400×4000

23.0

30

25

7.0~92

JR138-8

320

9966×5005×3970

67984

Φ2400×4500

23.0

32.5

25

8~100

JR158-8

320

10575×5005×3970

72284

Φ2400×6000

23

40

25

10~120

JR138-8

320

11175×5005×3970

73365

Φ2700×2100

21.7

24

25

7~78

JR1410-8

280

9962×5610×4500

63000

Φ2700×2700

21.7

29

25

8~100

JR148-6

310

10562×5610×4500

68530

Φ2700×3600

21.7

34

25

15~115

JR158-8

380

11162×5610×4500

88400

Φ2700×4000

21.7

40

25

17.5~135

JR1512-8

400

11175×5610×4500

90420

Φ2700×4500

21.7

42

25

19150

JR1510-8

475

11829×5610×4500

100000

Φ3200×3000

18.7

44

25

50~90

TDMK500-36

500

11000×7200×5700

124000
