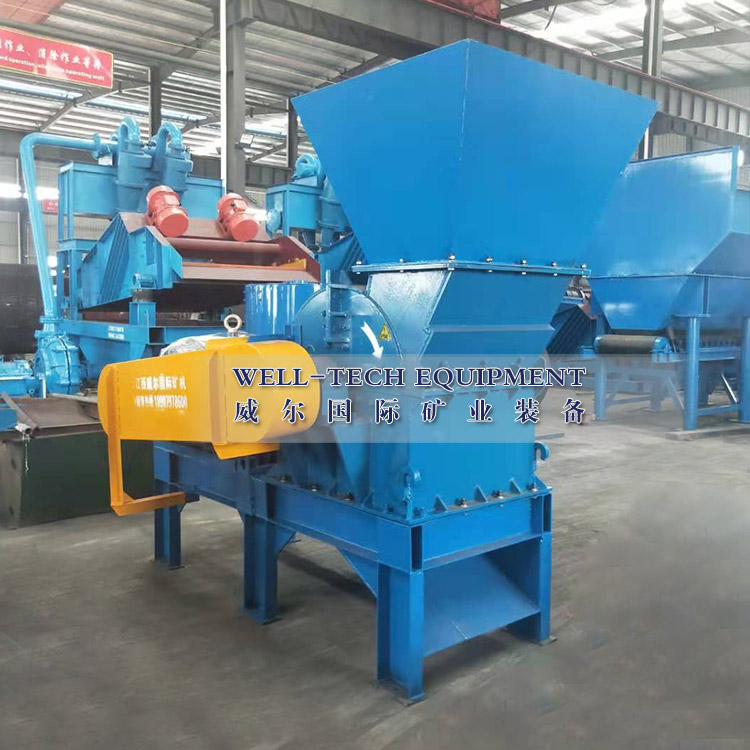

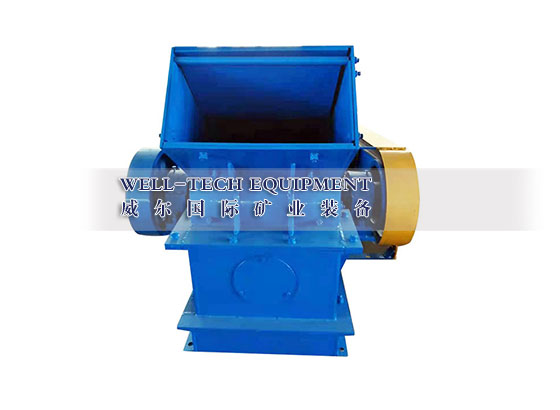

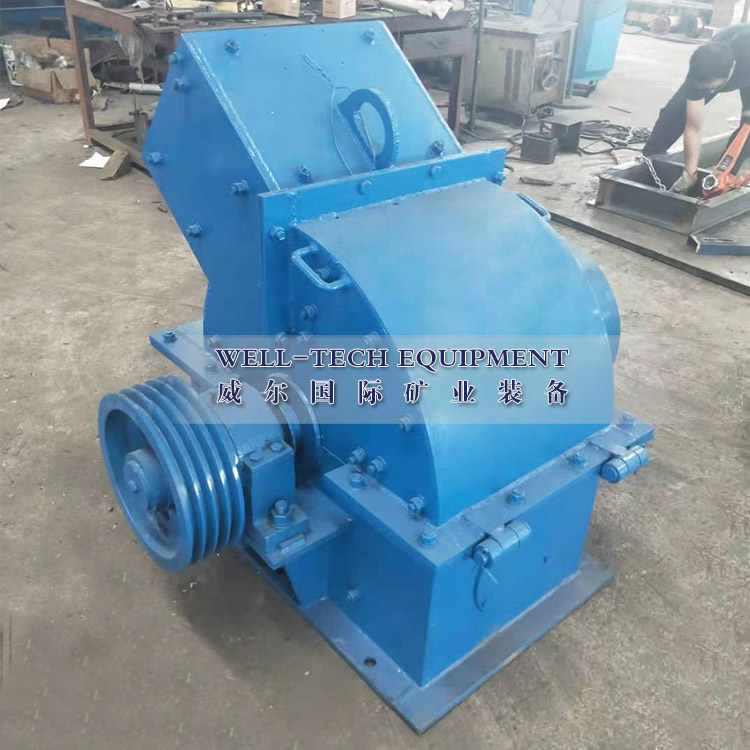

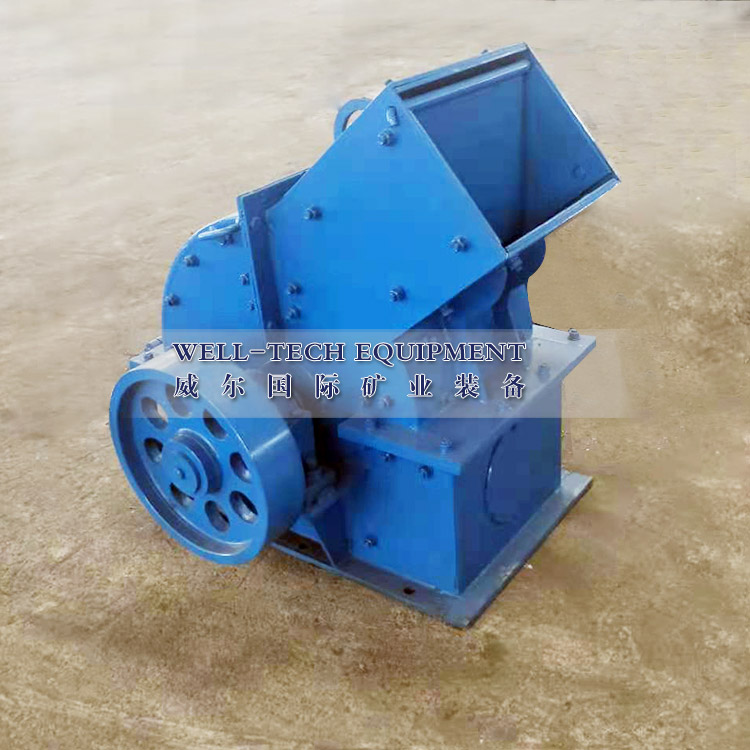

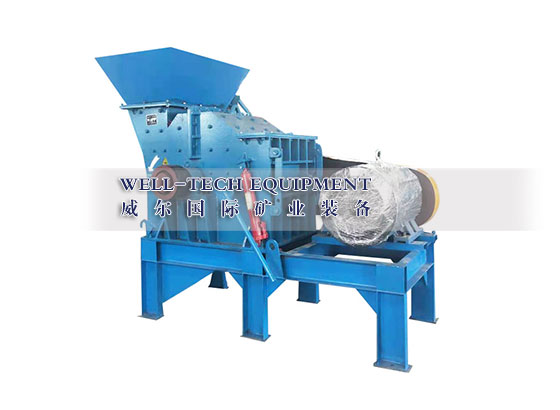

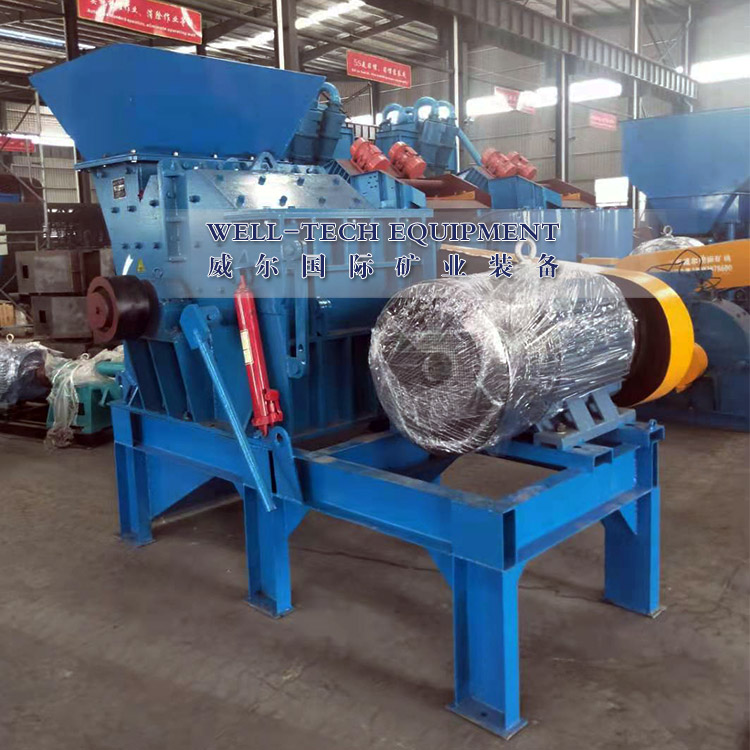

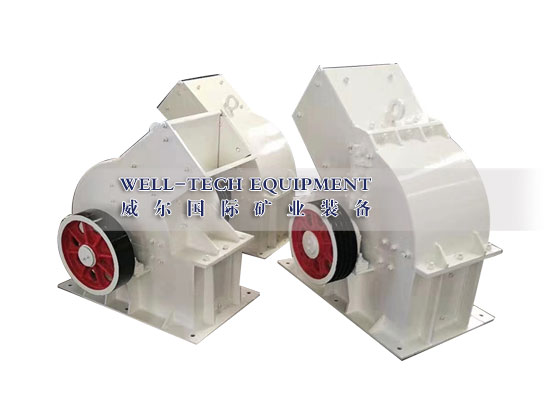

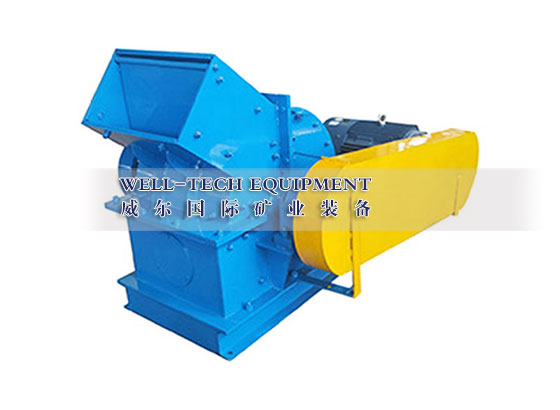

Hammer Crusher
This product breaks up materials through the collision of the fast rotating ram and materials. It has the simple structure, big crushing ratio, and high production efficiency, etc. The hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, highway, burning, etc.
Description
The hammer crusher was developed for the both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries. The crushers are applicable for crushing of brittle minerals, such as coal, salt, plaster, alum, brick, tile and limestone with compression strength no more than 100mpa and humidity no more than 15%. This equipment can adjust to the cleft and the discharging granularity as the customers request to satisfy different needs.
The motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.
Advantages and Characteristics
1 Simple structure, compact size, light weight;
2 High efficient, high crushing ratio, Finished product small and uniform;
3 Easy maintenance and reliable operation.
Main Technical Parameters
|
Model
|
Rotor speed
(r/min)
|
Feed opening
(mm)
|
Max feeding size
(mm)
|
Discharging size
(mm)
|
Capacity
(t/h)
|
Motor power
(kw)
|
Weight
(t)
|
Dimensions
L×W×H
(mm)
|
|
PC400×400
|
1500
|
145×450
|
100
|
0-30
|
5-8
|
7.5
|
0.9
|
844×942×878
|
|
PC600×400
|
1000
|
295×450
|
100
|
0-35
|
10-12
|
18.5
|
1.03
|
1054×972×1117
|
|
PC600×600
|
1000
|
295×570
|
100
|
0-35
|
12-18
|
45
|
2.14
|
1315×840×1501
|
|
PC800×600
|
1000
|
350×570
|
120
|
0-45
|
20-25
|
55
|
2.45
|
1515×2586×1040
|
|
PC800×800
|
1000
|
350×850
|
120
|
0-45
|
35-45
|
55
|
3.05
|
1515×2831×1040
|
|
PC1000×800
|
1000
|
580×850
|
200
|
0-45
|
25-40
|
110
|
6.5
|
3206×2210×1515
|
|
PC1000×1000
|
1000
|
580×1060
|
200
|
0-45
|
40-80
|
132
|
7.59
|
3514×2230×1515
|
|
PC1250×800
|
750
|
650×850
|
200
|
0-45
|
20-50
|
132
|
11.7
|
2630×1780×2050
|
|
PC1250×1250
|
750
|
650×1330
|
200
|
0-45
|
90-110
|
185
|
13.2
|
2630×2180×2050
|
|
PC1400×1400
|
750
|
1050×1540
|
250
|
0-45
|
120-170
|
280
|
17.2
|
2790×2800×2310
|
|
PC1600×1600
|
600
|
1500×1785
|
350
|
0-60
|
220-280
|
450
|
22.8
|
3350×3120×2660
|
