High pressure grinding roll suitable for compression strength less than 300Mpa, humidity less than 35% of the hard, medium hard and soft materials, fine and intermediate crushing. Can be widely used in mining, thermal power, cement, ceramics, metallurgy, chemicals, building materials, etc.
Descriptions
High pressure grinding roll suitable for compression strength less than 300Mpa, humidity less than 35% of the hard, medium hard and soft materials, fine and intermediate crushing. Can be widely used in mining, thermal power, cement, ceramics, metallurgy, chemicals, building materials, etc.
Features: low use and maintenance costs, high reliability, low dust , low noise.

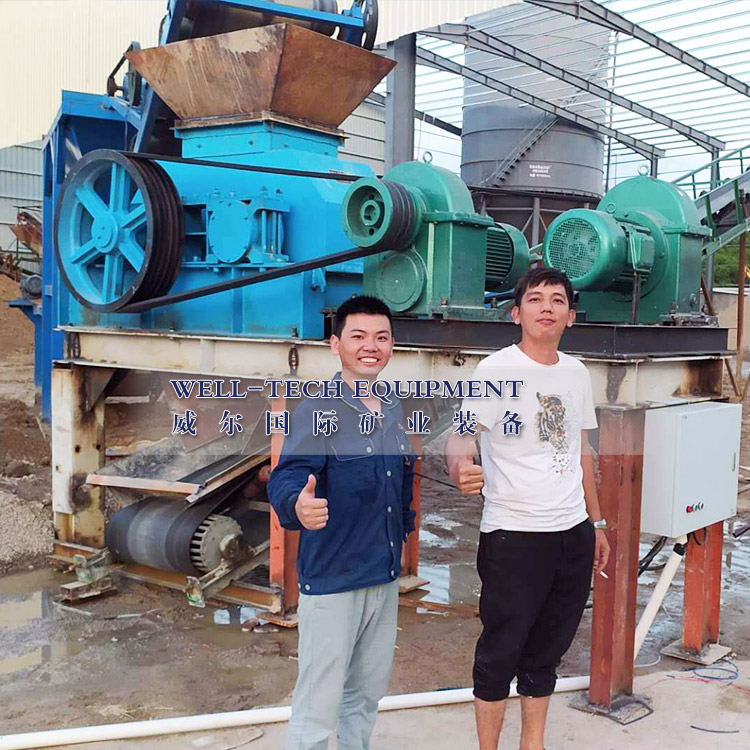

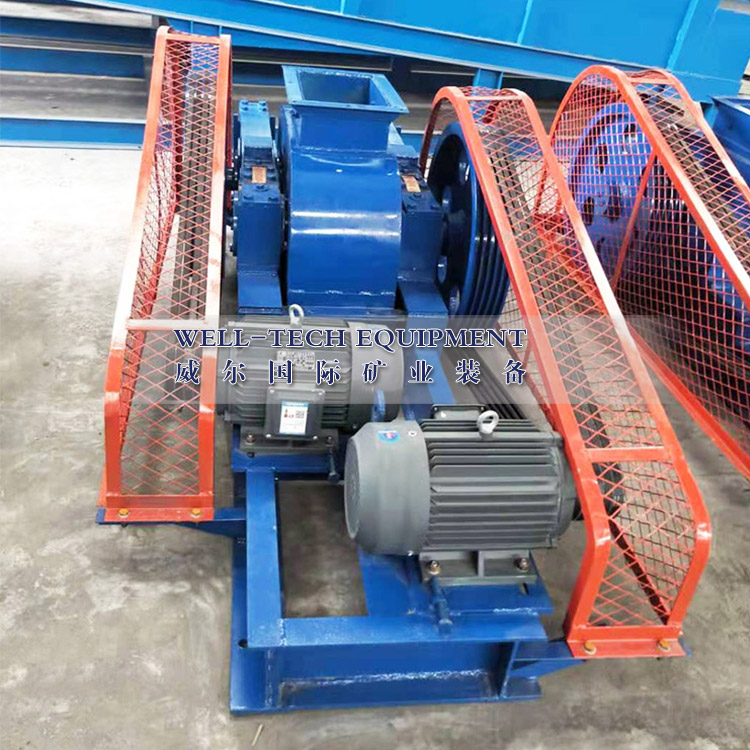

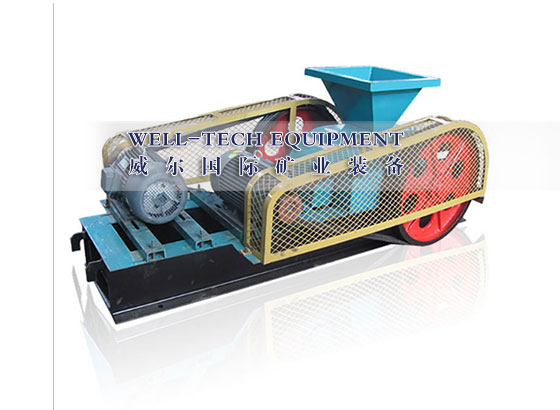

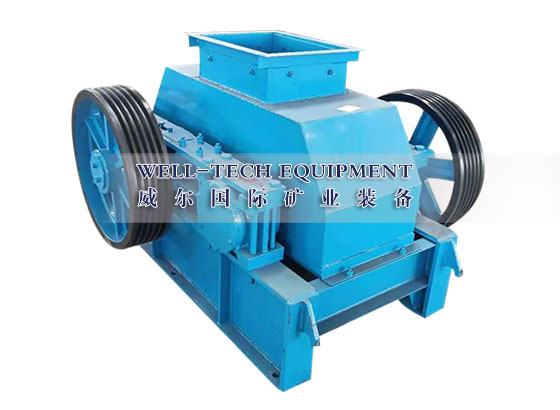

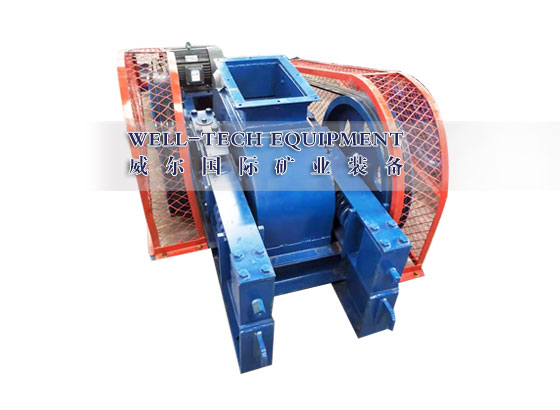

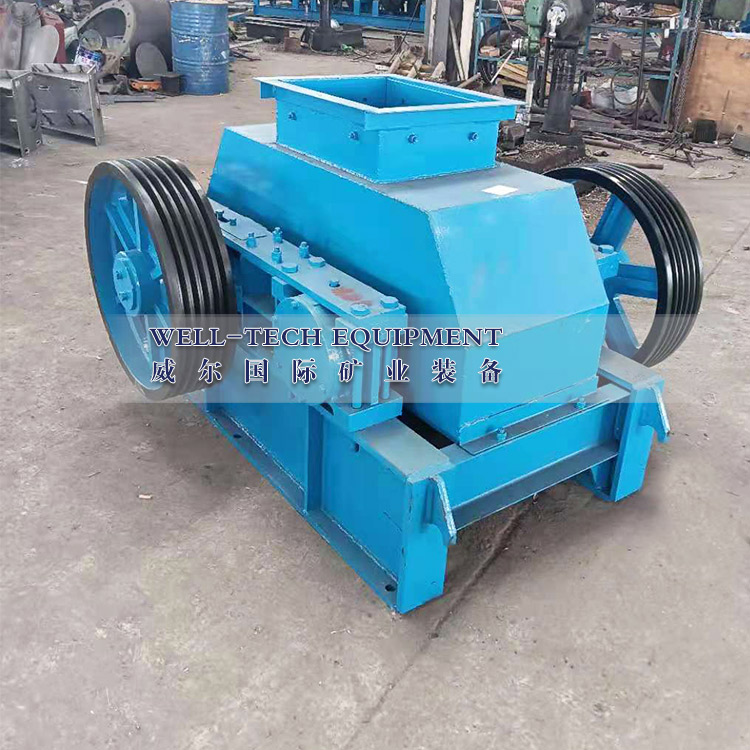

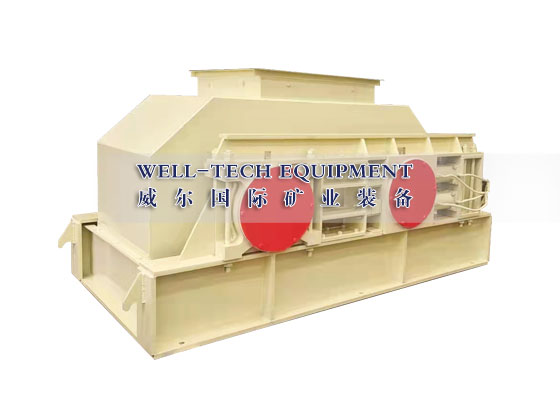

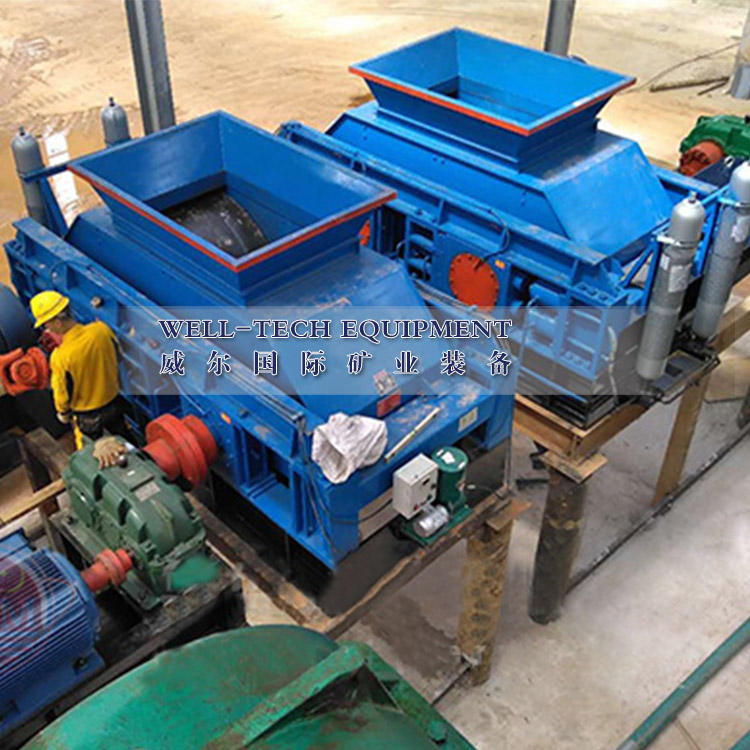

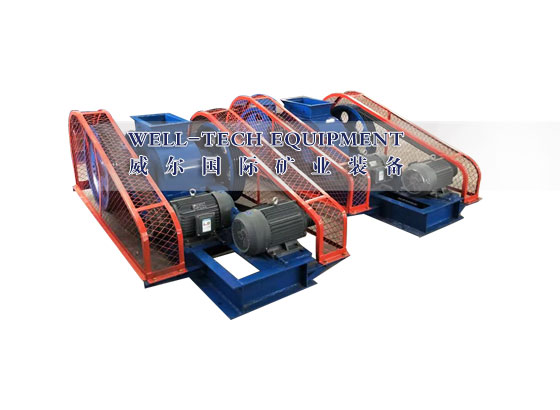

High pressure grinding roll has two abrasive rolls. According to the user`s demand, the roll surface is divided into flat surface and overlay welding surface of two models. If the material`s hardness is bigger than 200Mpa, heavier model is suitable.
The flat roll model is for the fine crushing which requires the maxium feeding 80mm, range of discharge 0.3-20mm. Such as making sand with pebbles and constructiong waste, mining crushing iron ore, quartz stone; ceramics crushing raw materials; metallurgical industry cushing coke, lime; coking coal crushing plant; chemical industry crushing all kinds of raw materials; or in the similar occasions.
The overlay welding roll model is for the medium fine crushing which requires the maxium feeding 110mm, range of discharge 3-30mm. For example, before the mill: cement industry pre-crushing cement clinker, limestone and composite materials; CWS industry pre-crushing coal; iron ore industry pre-crushing slag, iron ore, silica minerals; brick factory pre-crushing kinds of ore to produce unburned brick; thermal power plants crushing coal; or in the similar occasions.
Working principal
High pressure grinding roll is fixed with two high-strength wear-resistant alloy rolls. Their relative rotation generates high extrusion pressure which crushes the material. The material enters into the space between the two rolls, suffered both extrusion and shear force.In the crowd rolling, cutting and grinding, it is crushed into the required size and then sent by the transport equipment.
Main Technical Parameters
Model
Roller dia.
(mm)
Feed size
(mm)
Discharge size
(adjustable)
(mm)
Capacity
(t/h)
Feeding opening size
(mm)
Discharge opening size
(mm)
Power
(Kw)
Dimension
(mm)
2PGS800
Φ800
∠40
0-8
10-30
500*500
1600*600
22*2
2750*2580*935
2PGS1000
Φ1000
∠50
0-10
20-40
600*500
2000*700
45*2
3500*3200*1200
2PGS1200
Φ1200
∠60
0-10
30-60
700*600
2400*800
55*2
3500*3270*1440
2PGS1500
Φ1500
∠70
0-12
40-80
800*800
3000*900
75*2
3600*4200*1865
2PGS1800
Φ1800
∠90
0-15
80-120
800*720
3600*900
90*2
4800*4200*1865
2PGS2000
Φ2000
∠120
0-15
90-180
800*1000
4000*1200
132*2
5000*4800*2500
