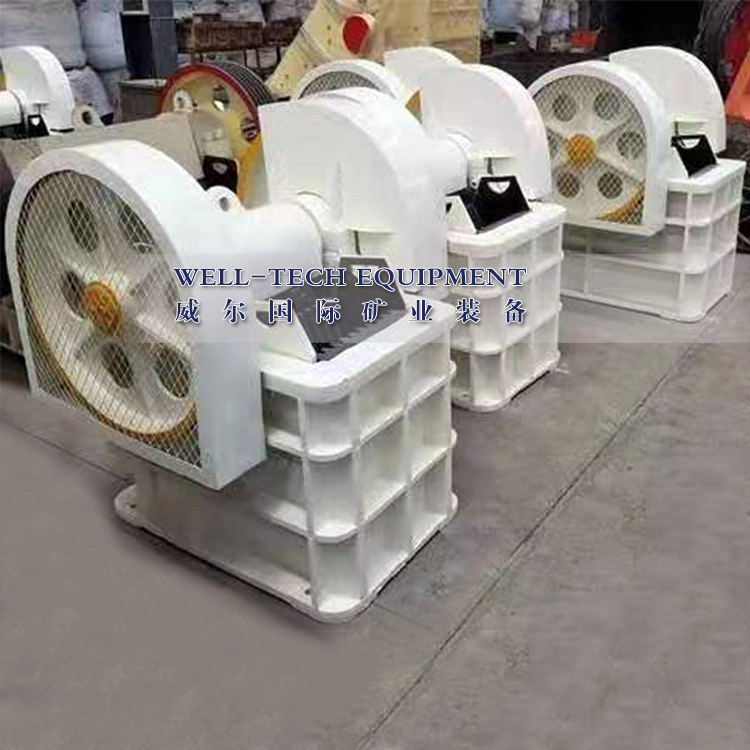

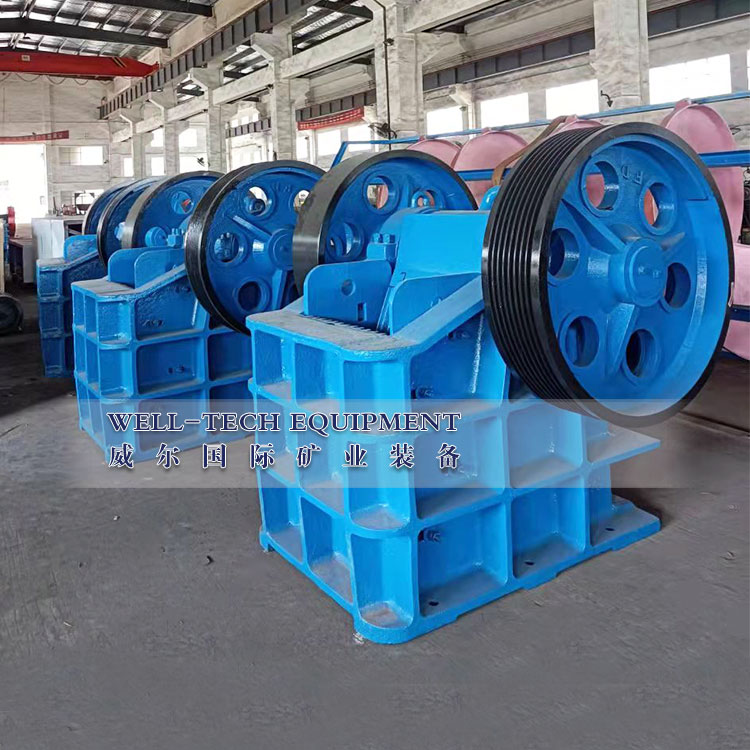

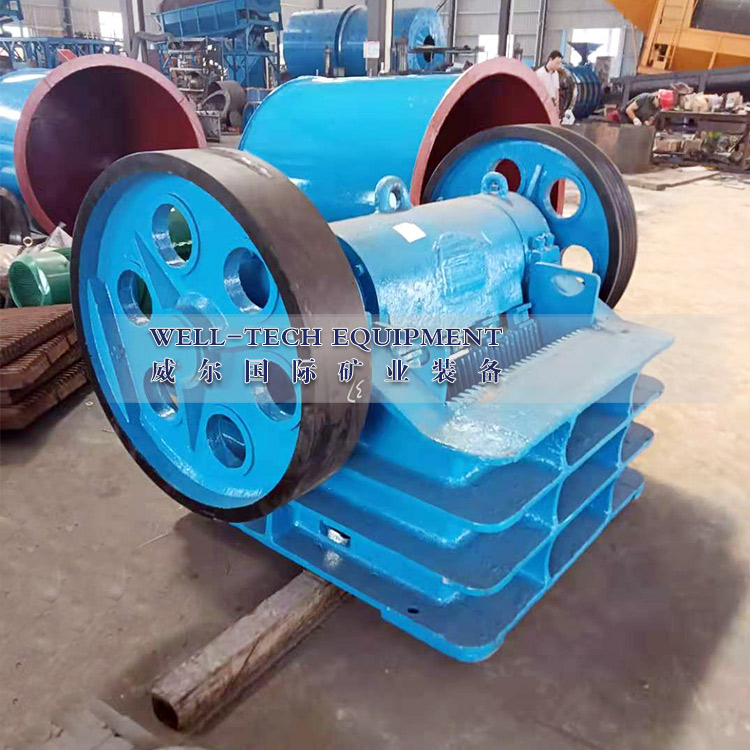

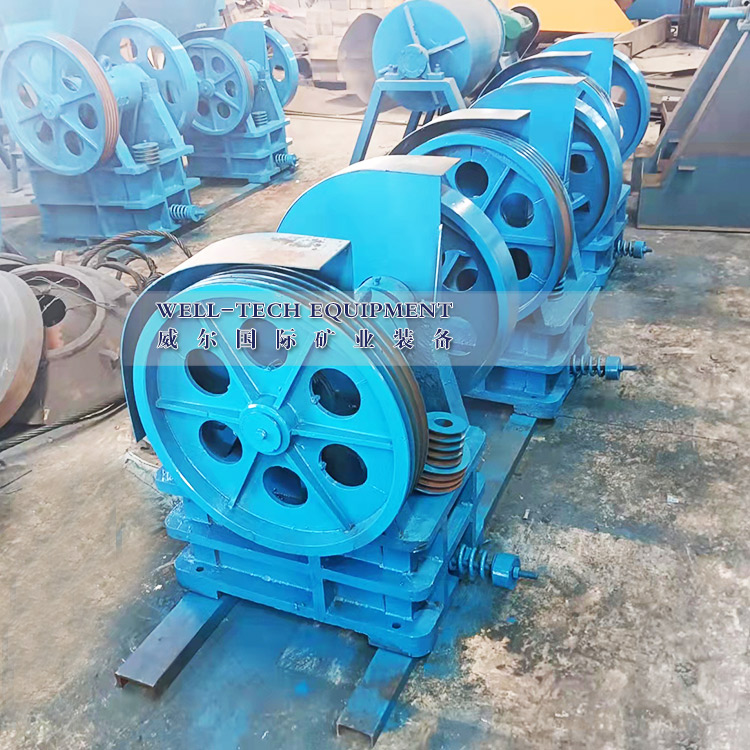

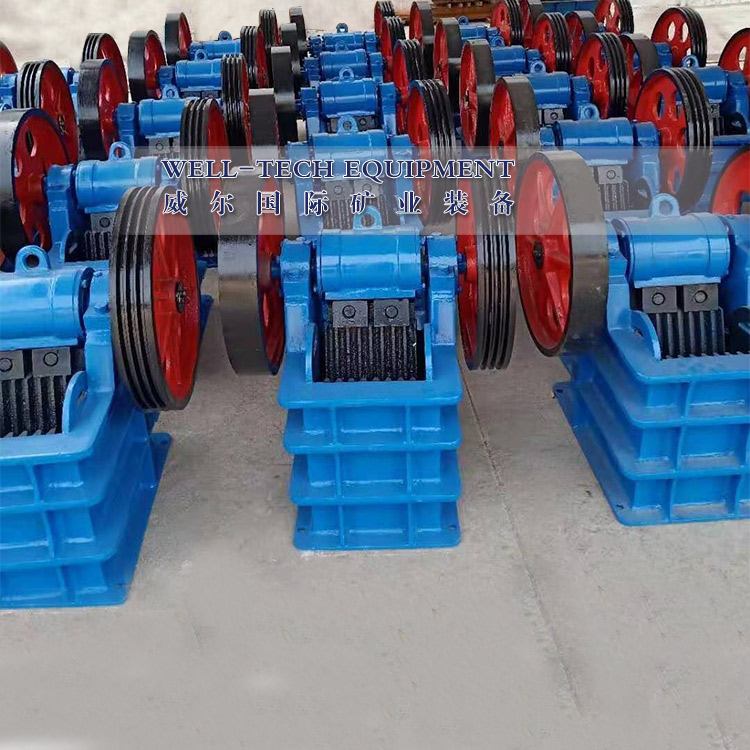

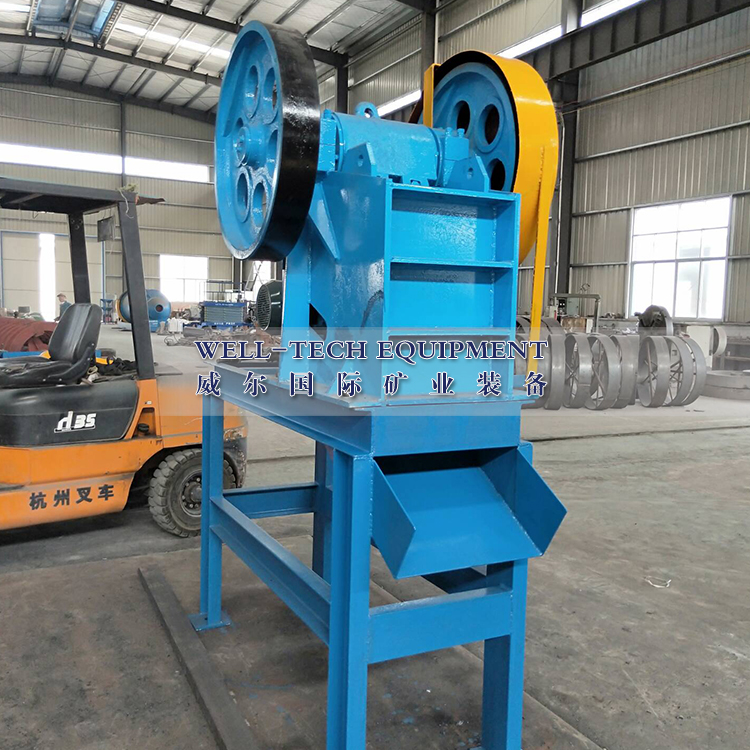

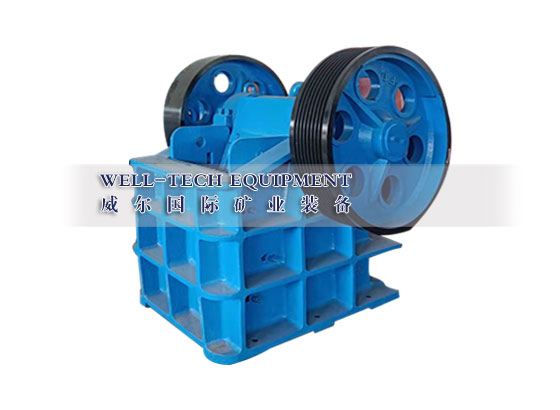

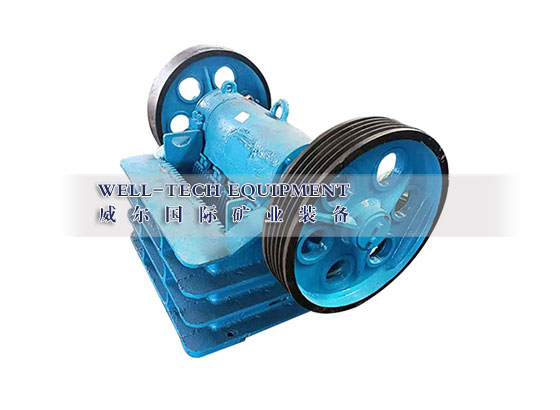

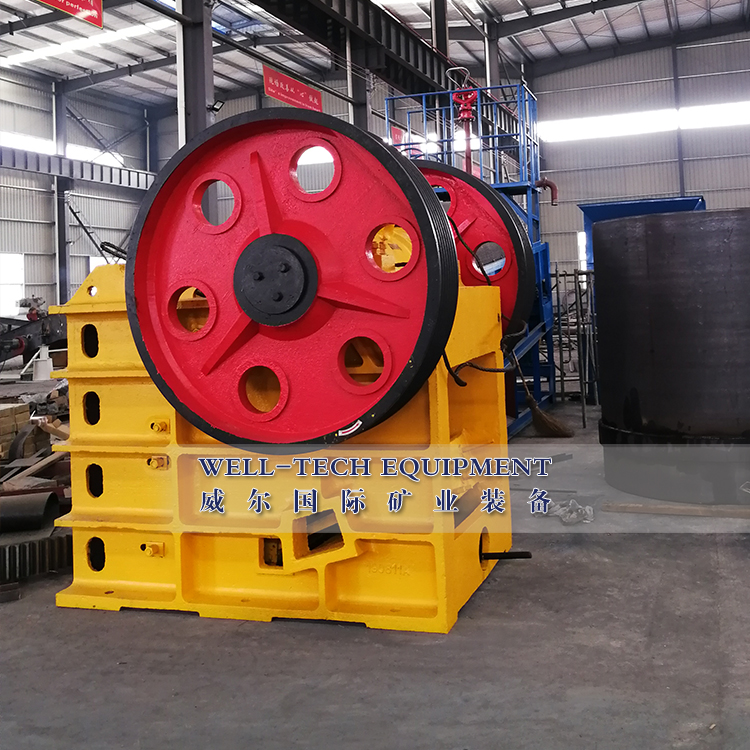

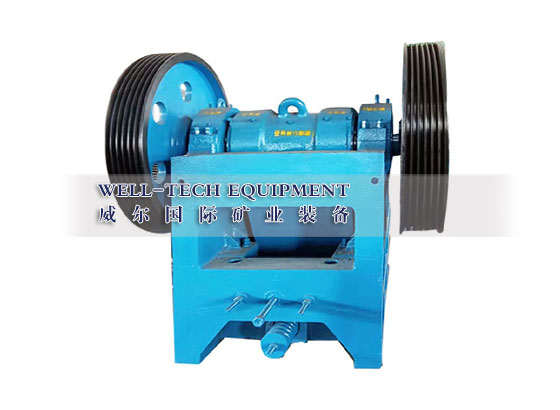

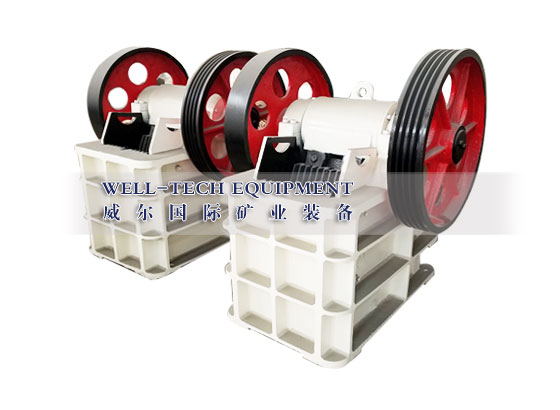

Jaw Crusher
Jaw crusher has the features of great crushing ratio, uniform size of products, it mainly used to crush kinds of mining stones primarily, it can be used to crush material its compressive resistance not more than 320MPa. The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway, and chemical industry.
Description
Jaw crusher has the features of great crushing ratio, uniform size of products, it mainly used to crush kinds of mining stones primarily, it can be used to crush material its compressive resistance not more than 320MPa. The jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway, and chemical industry.
The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher.
Advantages and Characteristics
1 Simple structure, easy operation and maintenance, the downtime is greatly reduced;
2 Moveable jaw assembly adopts high quality casting steel, heavy eccentric shaft adopts forging steel processing, the machine with transcendental stability;
3 Adopt more durable eccentric shaft bearing, so the bearing capacity is big.
Main Technical Parameters
|
Model
|
Feed
Opening
(mm)
|
Max.
Feeding
Size
(mm)
|
Adjusting
Range Of
Discharge
Opening
(mm)
|
Capacity
(t/h)
|
Rotation
Speed Of
Eccentric
Shaft
(r/min)
|
Motor
Power
(KW)
|
Total
Weight
(t)
|
Dimensions
(mm)
|
|
PE-150*250
|
150*250
|
125
|
10-40
|
1-3
|
250
|
5.5
|
0.6
|
720*660*850
|
|
PE-200*300
|
200*300
|
180
|
15-50
|
2-6
|
260
|
7.5
|
1
|
910*750*990
|
|
PE-200*350
|
200*350
|
180
|
18-70
|
3-10
|
260
|
11
|
1.3
|
1000*870*990
|
|
PE-250*400
|
250*400
|
210
|
20-60
|
3-13
|
300
|
15
|
2.8
|
1300*1090*1270
|
|
PE-400*600
|
400*600
|
340
|
40-100
|
15-40
|
275
|
30
|
5.7
|
1730*1730*1630
|
|
PE-500*750
|
500*750
|
425
|
50-100
|
20-70
|
275
|
55
|
10.3
|
1980*2080*1870
|
|
PE-600*900
|
600*900
|
520
|
65-130
|
50-150
|
250
|
75
|
15.5
|
2290*2290*2400
|
|
PE-750*1060
|
750*1060
|
630
|
80-140
|
80-220
|
250
|
110
|
28
|
2660*2430*2800
|
|
PE-870*1060
|
870*1060
|
660
|
200-260
|
290-336
|
250
|
110
|
31.5
|
2810*2430*2800
|
|
PE-900*1060
|
900*1060
|
685
|
230-290
|
160-400
|
250
|
110
|
33
|
2870*2420*2940
|
|
PE-900*1200
|
900*1200
|
860
|
230-290
|
200-250
|
200
|
132
|
31
|
3380*2870*3330
|
|
PE-1000*1200
|
1000*1200
|
850
|
195-265
|
315-500
|
200
|
110
|
55
|
3480*3876*3330
|
|
PE-1200*1500
|
1200*1500
|
1100
|
350-360
|
250-400
|
180
|
160
|
51
|
4200*3300*3500
|
|
PEX-150*750
|
150*750
|
120
|
18-48
|
8-25
|
320
|
15
|
3.8
|
1200*1530*1060
|
|
PEX-250*750
|
250*750
|
210
|
25-60
|
13-35
|
330
|
30
|
5.5
|
1380*1750*1540
|
|
PEX-250*1000
|
250*1000
|
210
|
25-60
|
16-52
|
330
|
37
|
7
|
1560*1950*1390
|
|
PEX-250*1200
|
250*1200
|
210
|
25-60
|
20-61
|
330
|
45
|
8.5
|
2140*1660*1500
|
|
PEX-300*1300
|
300*1300
|
250
|
20-90
|
16-105
|
300
|
75
|
11
|
2720*1950*1600
|
