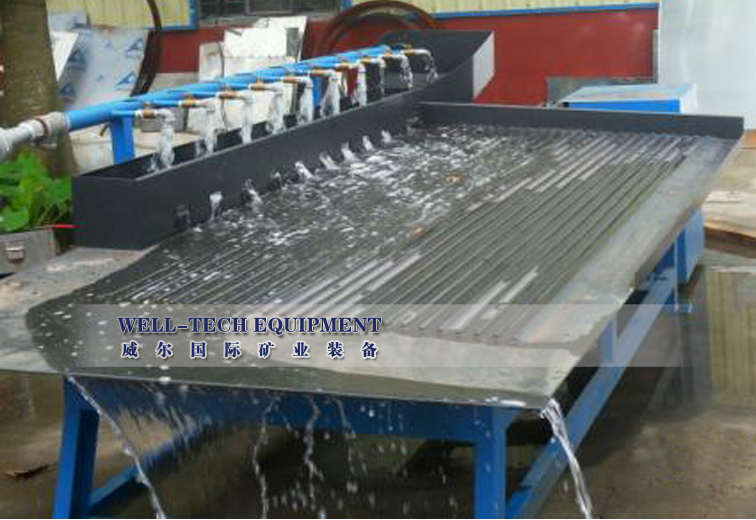

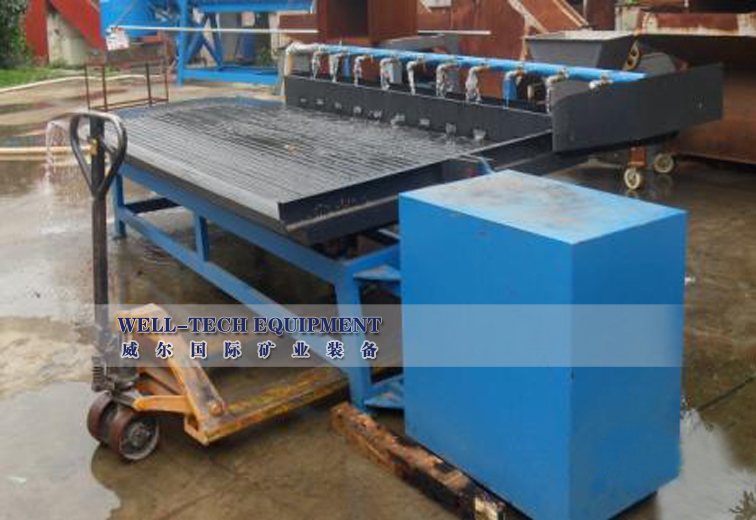

WL-6S copper sheet separating shaker

This copper sheet separating shaker’s the main idea of this sorting method from beneficiation. Wet sorting equipment’s main flow chart is: crushing and processing of water - gravity shaker - iron remover etc. due to use in the production process through the use of recycled water in order to avoid the secondary pollution to the environment. Copper wire separating machine mainly adopted to process Polyamine (PVC) Auto’s electrical route or bottom line, Motorcycle’s electric line, computer case’s line and all kinds of mixer cable, and mixer wire / cable is not suitable for processing by wire stripping machine.


DescriptionParameter
Descriptions
This copper sheet separating shaker’s the main idea of this sorting method from beneficiation. Wet sorting equipment’s main flow chart is: crushing and processing of water - gravity shaker - iron remover etc. due to use in the production process through the use of recycled water in order to avoid the secondary pollution to the environment. Copper wire separating machine mainly adopted to process Polyamine (PVC) Auto’s electrical route or bottom line, Motorcycle’s electric line, computer case’s line and all kinds of mixer cable, and mixer wire / cable is not suitable for processing by wire stripping machine.

Features
  •      High recovery, High enrichment ratio
  •      Easy installation, Simple operation
  •      Fiberglass deck, Seven different deck optional
  •      Long service life
Structure Drawing
1、head of shaker 2、tank of supply copper wire 3、surface of shaker 4、tank of supply water
5、mechanism of adjusting gradient 6、mechanism of oiling 7、strip of shaker  8、motor

Technical Specifications

Model

6-S 7.6

6-S 4.08

6-S 1.95

6-S 0.5

Deck type

Coarse ore Deck

Fine sand
Deck

Slime Deck

Three different kinds of decks are available

Beneficiation area (m2)

7.6

7.6

7.6

4.08

1.95

0.5

Deck Size

Length (mm)

4500

4500

4500

3000

2100

1100



Transmission end width (mm)

1850

1850

1850

1320

1050

500



Concentrate end width (mm)

1550

1550

1550

1100

850

430

Maximum feeding size (mm)

2

0.5

0.074

Sand -2

Slime -0.1

Sand -2

Slime -0.074

Sand -2

Slime -0.074

Capacity (t/h)

1-1.8

0.5-1

0.3-0.5

0.4-1.5

0.3-0.8

0.05-0.2

Feeding density (%)

20-30

18-25

15-20

10-30

Stroke (mm)

16-22

11-16

8-16

6-30

12-28

9-17

Frequency of stroke (r/min)

220

250

280

210-320

250-450

280-460

Water consumption (t/h)

0.7-1

0.4-0.7

0.4-0.7

0.3-1.5

0.2-1

0.1-0.5

Groove shape of deck

Rectangular

Saw-tooth

Triangle

Available Rectangular, Saw-tooth, Triangle

Power (Kw)

1.1

1.1

1.1

1.1

1.1

0.55
