Descriptions

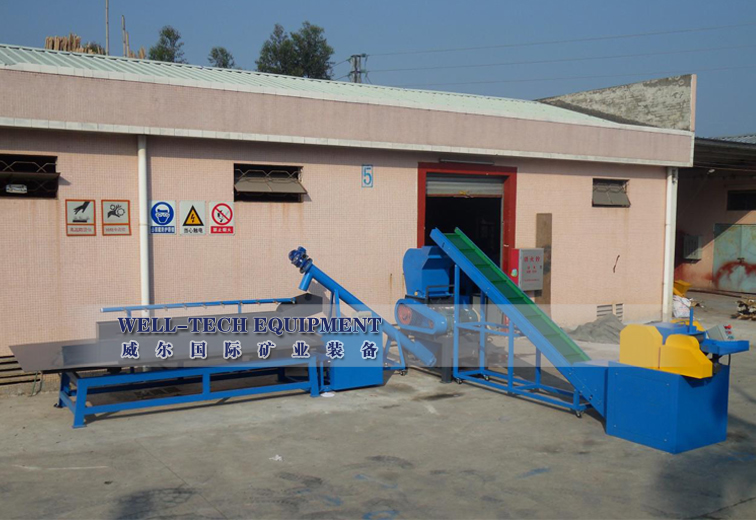

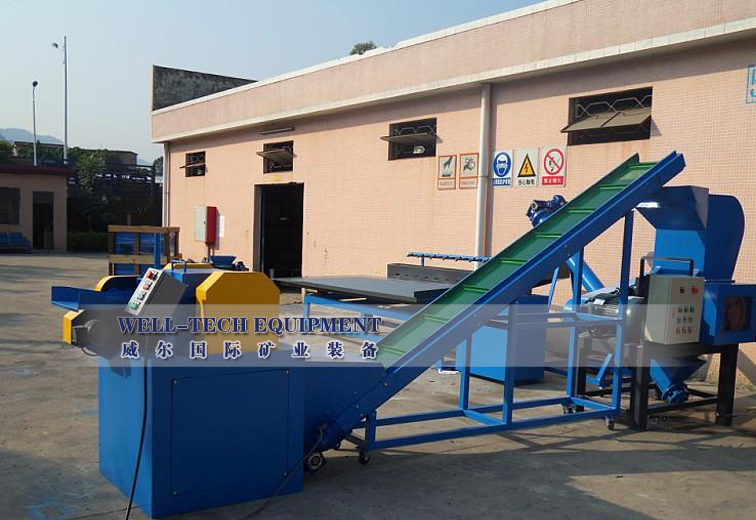

This copper wire separating machine’s the main idea of this sorting method from beneficiation. Wet sorting equipment’s main flow chart is: crushing and processing of water - gravity shaker - iron remover etc.due to use in the production process through the use of recycled water in order to avoid the secondary pollution to the environment. Copper wire separating machine mainly adopted to process Polyamine (PVC) Auto’s electrical route or bottom line, Motorcycle’s electric line, computer case’s line and all kinds of mixer cable, and mixer wire / cable is not suitable for processing by wire stripping machine.
Function of operating system:
(1) Cabinet of star delta starter
(2) Motor protection device of dynamo-thermal
It’s easy to operation, can throw material at one time, after crush processing. Water type copper meters machine’s dedicated shaker equipment mechanical separation. Thorough separate to copper and plastic, also reach aim of complex utilization. Without dust and second pollution, and have higher recycling economic effectiveness, and have fast deal with recycling of copper / plastic way.
Simple operation, convenient maintenance
Automatic process, stable balance
High metal recovery rate and high purity
Technical Specifications
|
主机技术参数（TXECHNICAL PARAMETER）
|
WL-450
|
WL-650
|
|
加工范围
|
Processing diameter
|
< Φ20mm
|
< Φ20mm
|
|
机器尺寸：长X宽X高
|
Overall dimension(L*W*H)
|
1600*1000*1200
|
1820*1290*1510
|
|
机器重量
|
Weight (Kg)
|
850
|
1350
|
|
电机功率
|
Power(KW)
|
30
|
30/37
|
|
电机电压
|
Voltage
|
380
|
380
|
|
日/产量
|
Capacity 10 hr/day
|
1500-3500
|
2000-4000
|
|
摇床技术参数（SHAKING TABLE PARAMETER）
|
|
摇床尺寸：长X宽X高
|
Shaker dimension(L*W*H)
|
5600*1825*1560
|
|
电机功率
|
Power(W)
|
1100
|
|
电机电压
|
Voltage
|
380
|
|
冲程
|
Stroke (mm)
|
16-22
|
|
冲次
|
Frequency of stroke (r/min)
|
240-380
|
Note: Internal structure of cutting tool (10 moving knifes+4 fixed knifes) total 14
