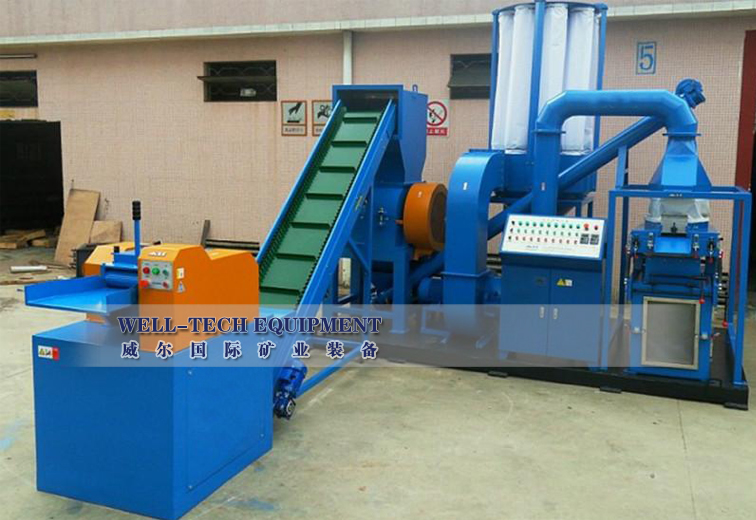

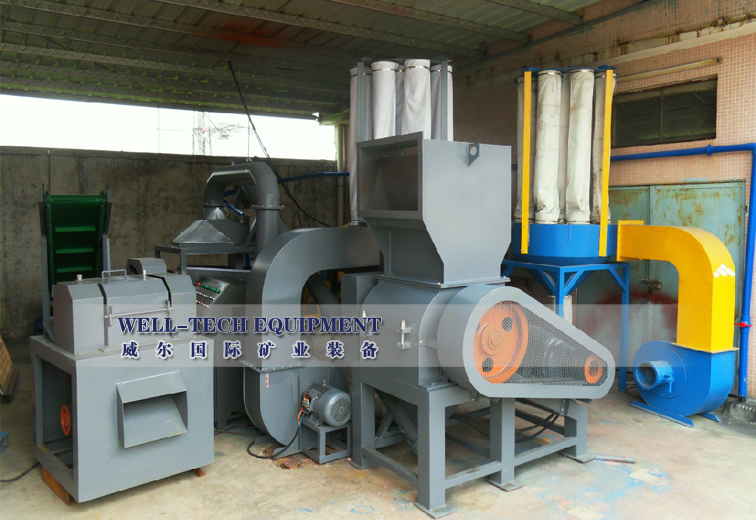

Automatic dry-type copper recycling production line
Dry-type copper recycling production line widely used for separation of copper and plastic achieve the waster wire and cable recycle. For example: old car circuit wire, communication cables, and waste miscellaneous material wire (various civil wires) which stripper is not suitable for processing. The whole production line is available for various wire and cables, has unique structure, big process capacity and low power consumption. With high separation rate, controlled by PLC, the separation is conducted by several parts in the domestic leading level.
Descriptions
Dry-type copper recycling production line widely used for separation of copper and plastic achieve the waster wire and cable recycle. For example: old car circuit wire, communication cables, and waste miscellaneous material wire (various civil wires) which stripper is not suitable for processing. The whole production line is available for various wire and cables, has unique structure, big process capacity and low power consumption. With high separation rate, controlled by PLC, the separation is conducted by several parts in the domestic leading level.
The successful development of the machine, which solves the burning method for copper recovery problems, while not only improved the purity of copper and plastic recycling, but also reduced the pollution to the environment.
Features
After the waste wire and cable crushing process, automatic mechanical separation of copper and plastic to achieve waste recycling with high profitable. While no dust, no secondary pollution. In addition, the machine is integrally combined structure, easy installation & commissioning and transportation (After connecting with electricity, this machine can work continuously, all things that customer can do is only normal checking), stable performance.
Advantages
Suitable structure and layout, easy to install;
Using PLC control, uniform feed, intelligent operation, maximum guarantee machine 's stable work;
The crusher adopts double roller，low speed, high tear produces big output while little noise;
The design of separator and dust collector is handy for movement or transport;
lThe rotor of the grinder is alternating，leading to more efficiency，faster discharging，lower noise and more steady running;
The separation rate of air separator can reach at least 99%;
Feedback system will do the second crushing to the unfinished material, which guarantee the totally separation of metal and non-metal;
Dust-collector can prevent the leak of dust, the dust-cleaning rate can reach 99.99%.
|
Technical Specifications
|
Model
|
Processing diameter
(mm)
|
Overall dimension(LxWxH)
(mm)
|
Capacity
(10 hr/day)
|
Weight
(Kg)
|
Motor voltage
(V)
|
Power
(KW)
|
|
WL-400A
|
Φ0.5-Φ20
|
3400*2100*2150
|
1500-3000 Kg
|
2800
|
380 / 220
|
22-25
|
|
WL-400B
|
< Φ20mm
|
1600*1500*1700
|
800-1500 Kg
|
1800
|
380 / 220
|
15
|
|
WL-600A
|
Φ0.5-Φ20
|
4200*2000*2850
|
4000-6000 Kg
|
5500
|
380 / 220
|
67
|
|
WL-600B
|
Φ0.5-Φ20
|
4200*2000*2850
|
3000-6000 Kg
|
4500
|
380 / 220
|
56
|
|
WL-600C
|
Φ0.5-Φ20
|
3900*2000*2200
|
3000-4000 Kg
|
3200
|
380 / 220
|
39.1
|
|
WL-600E
|
Φ0.3-Φ20
|
3500*2300*2800
|
3000-6000 Kg
|
3000
|
380 / 220
|
38
|
|
WL-1200A
|
Φ0.5-Φ20
|
10000*8700*3100
|
9000-13000 Kg
|
11200
|
380 / 220
|
133
|
