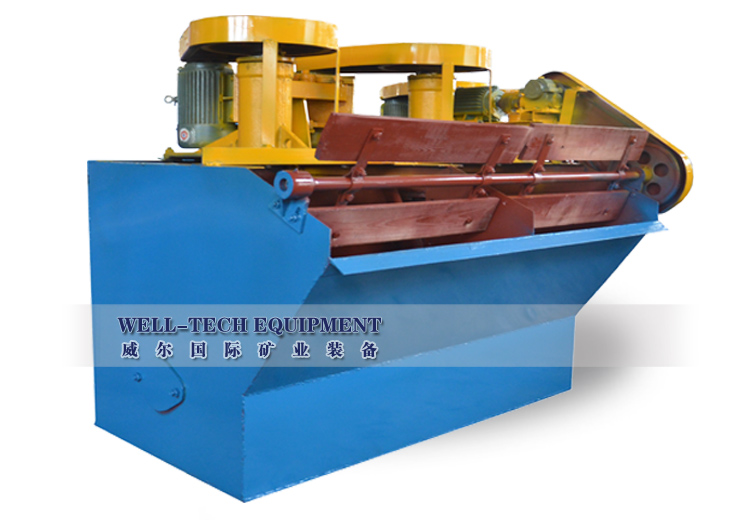

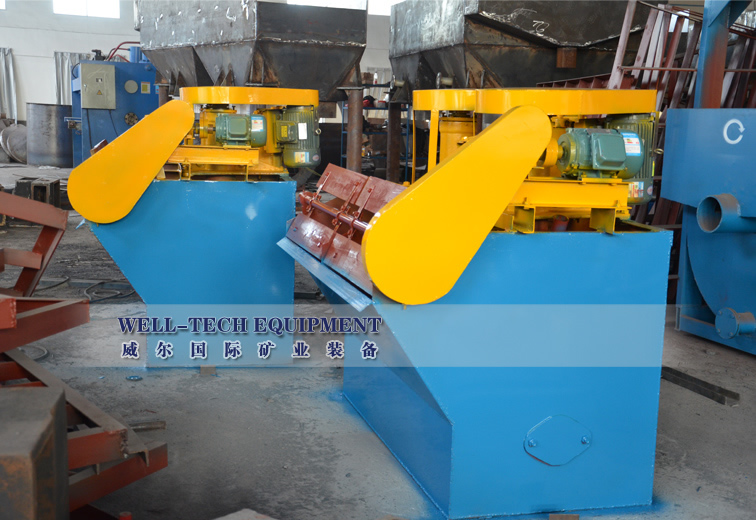

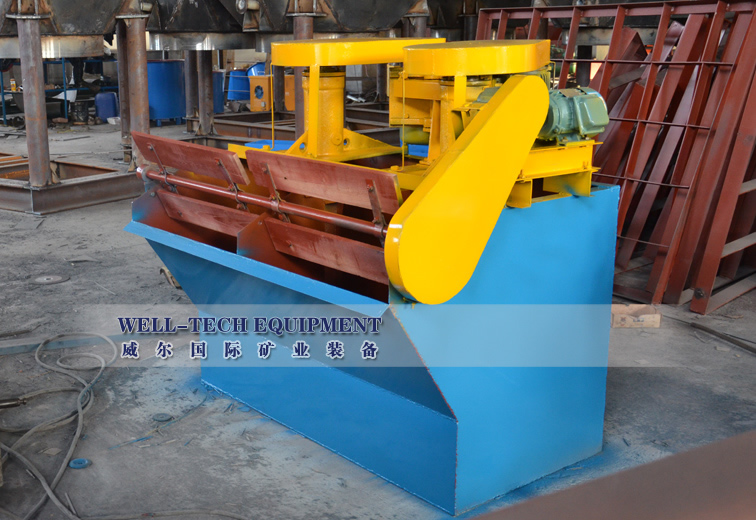

Description
It can be used for non ferrous metals like copper, lead, zinc, molybdenum and gold, black metals and non-metals for roughing and cleaning flotation.
XJK-1, XJK-2, XJK-4 are four cells and six cells as the basic cell. Two cells of the XJK-1 and XJK-2 as the motor body. XJK-3A, 4A, 5A and 6A are two cells, four cells and six cells as the basic cell. XJK-11 is one cell, two cells and four cells as the basic cell and combining some cells for the roughing, scavenging and cleaning concentration.
Working Principle:

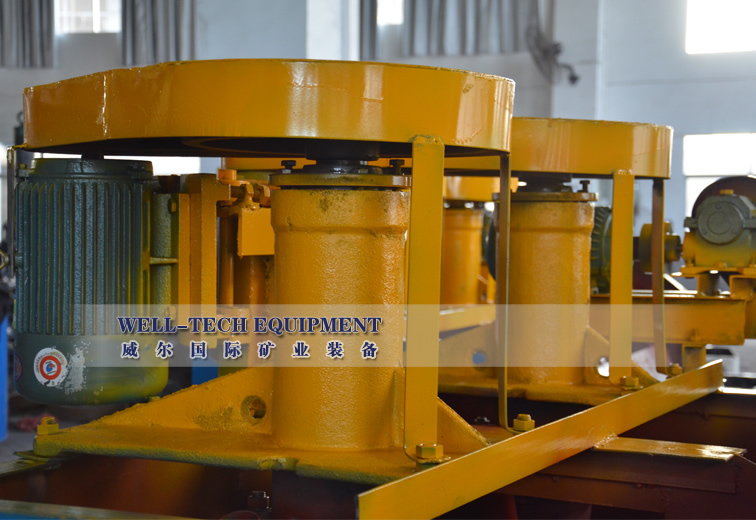

The motor drives belt pulleys to make the impeller moving by triangle belt. One is to mix the air and pulp sufficient, the other side is to agitate the pulp with chemical reagents as well as thinning the bubbles. The ore particles stick on the bubbles by the chemical reagents and float to the surface of the pulp and then become the forth and scraped by the scrapper.
Structure and Material:
When the flotation machine is working, the inlet ore pipe feed the pulp to the center of the cover and then swi out the pulp by the revolving impeller of the centrifugal force. Meanwhile, there is a negative pressure zone in the space of the impeller and cover so air can be inhaled from the air inlet pipe automatically. The strong agitation of the impeller mixes the pulp and air sufficient and then be made to many small bubbles. The bubbles go up to the forth and be scrapped out to be forth product.
Application:
It can be used for non ferrous metals like copper, lead, zinc, molybdenum and gold, black metals and non-metals for roughing and cleaning flotation.
Main Technical Parameters
|
Model
|
Effective Volume
(m3)
|
Diameter of impeller
(mm)
|
Capacity
(m3/min)
|
Impeller rotation
(r/min)
|
Scrapper
rotation
(r/min)
|
Impeller motor
|
Scrapper motor
|
Dimension of four cells
(mm)
|
Weight of each cell
(Kg)
|
|
Power
(Kw)
|
Power
(Kw)
|
|
XJK-0.13
|
0.13
|
200
|
0.05-0.16
|
600
|
17.5
|
1.5
|
0.55
|
2100×865×900
|
0.35
|
|
XJK-0.23
|
0.23
|
250
|
0.12-0.28
|
500
|
17.5
|
1.5
|
0.55
|
2625×1130×1290
|
0.41
|
|
XJK-0.35
|
0.35
|
300
|
0.15-0.5
|
470
|
17.5
|
2.2
|
0.55
|
3012×1350×1327
|
0.45
|
|
XJK-0.62
|
0.62
|
350
|
0.3-0.9
|
400
|
16
|
3
|
1.1
|
3798×1464×1530
|
0.85
|
|
XJK-1.1
|
1.1
|
500
|
0.6-1.6
|
330
|
26
|
5.5
|
1.1
|
4679×1820×1942
|
1.24
|
|
XJK-2.8
|
2.8
|
600
|
15-3.5
|
280
|
26
|
11
|
1.1
|
7750×1600×1100
|
2.43
|
Warm reminding:
1. Please inform the product name, model and specification when you order.
2. Please inform the ore feeding direction; otherwise, we make from the left feeding.
3. We won’t offer and install the middling and discharging pipes if customers don’t tell the requirements and offer the flow sheet.
