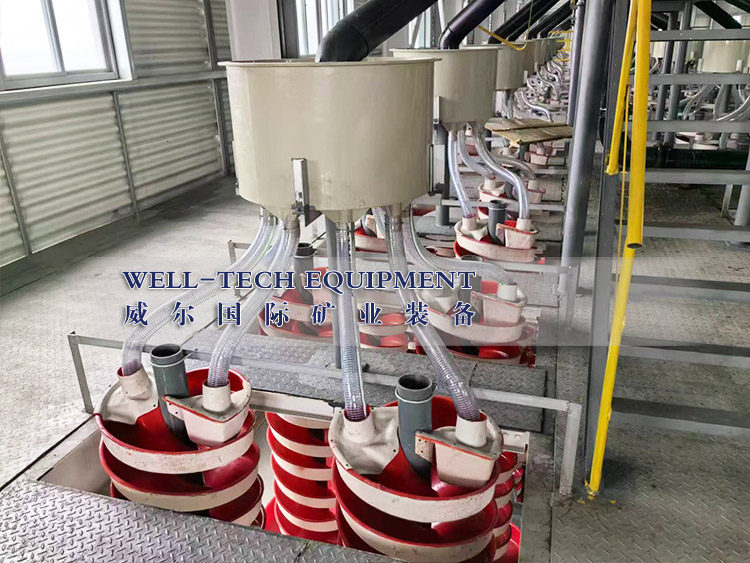

Plastic Spiral Chute Separator With Polyurethane(PU)

It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal , monazite, rutile, zircon and other low-grade ores. Especially very excellent for silica sand washing







DescriptionParameter

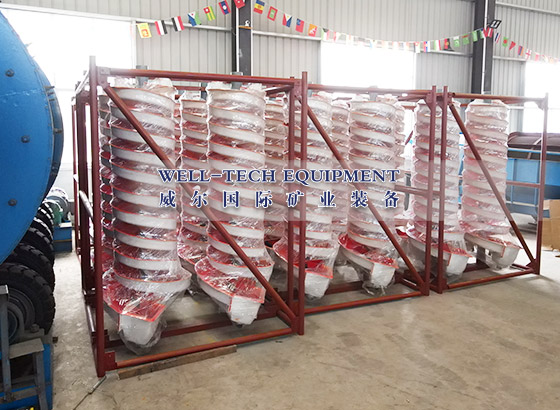

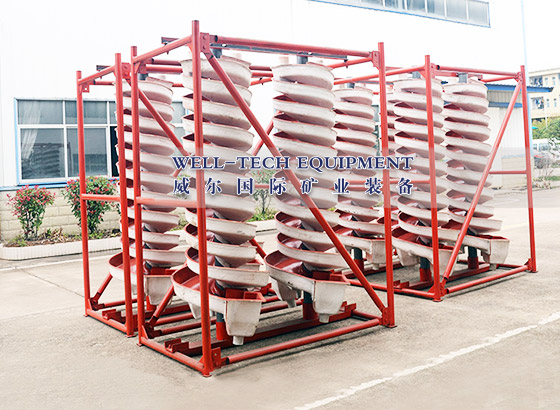

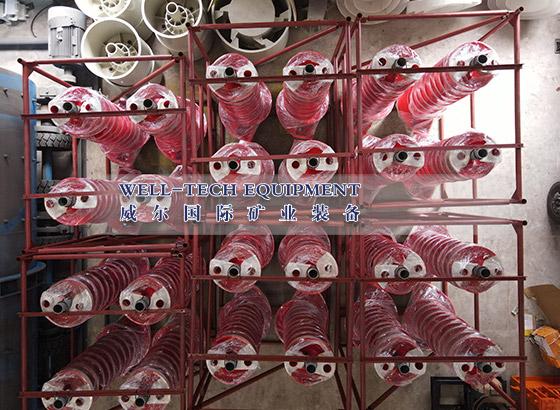

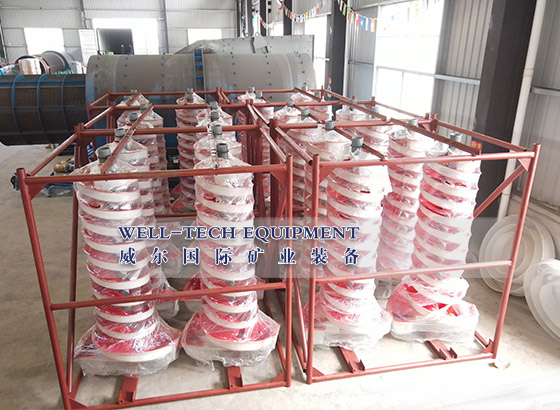

Plastic spiral concentrator


Descriptions

It has been used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal , monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.

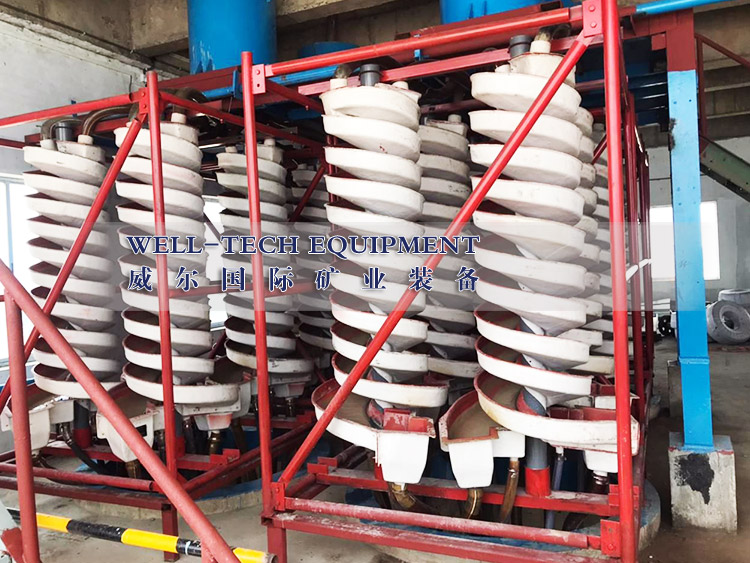

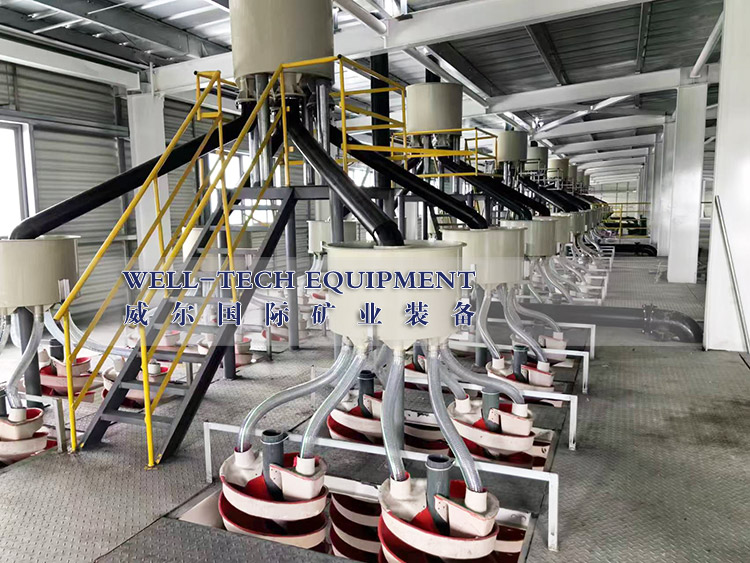

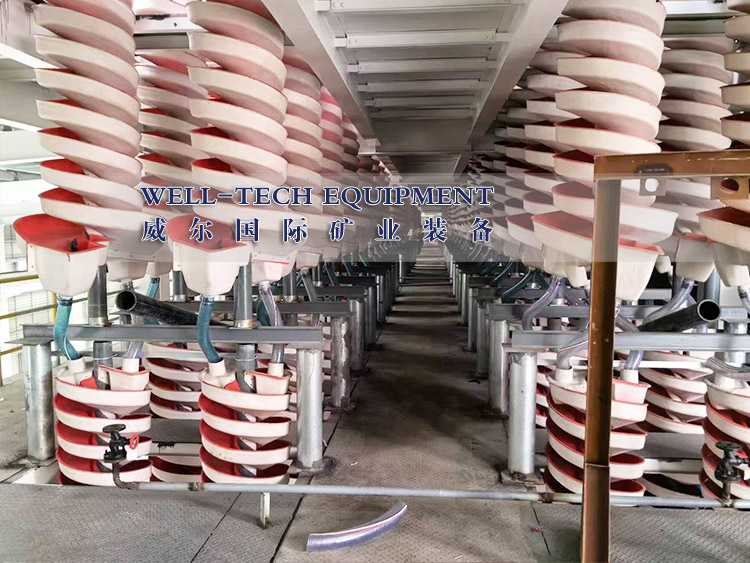

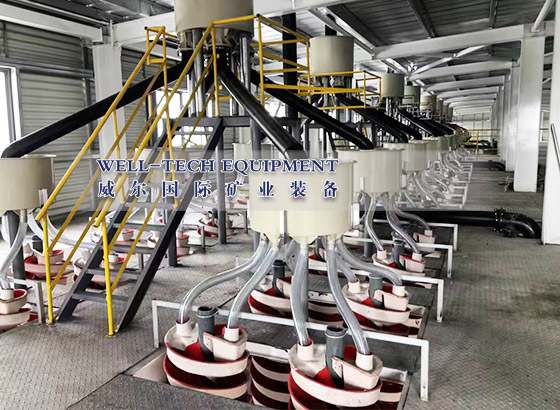

Extremely good performance and effects in processing silica sand washing plant.


Model

GD-600

GD-1200

Outer Diameter

600mm

1200mm

Spiral Pitch

320-430mm

600-630mm

Starts

2

2

Feeding Size

0.02-0.3mm

0.03-0.5mm

Feeding Density

25%-50%

25%-55%

Capacity

0.8-1.2tph

2-4tph

Dimension

600*600*2650mm

1200*1200*3500mm

Weight

70kgs

132kgs
