Descriptions

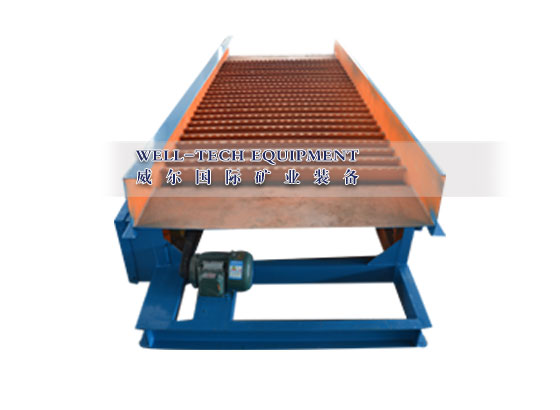

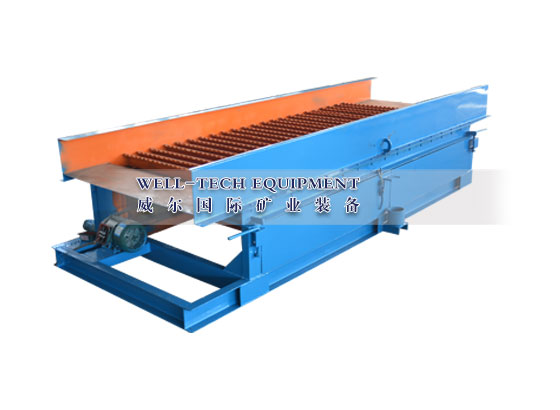

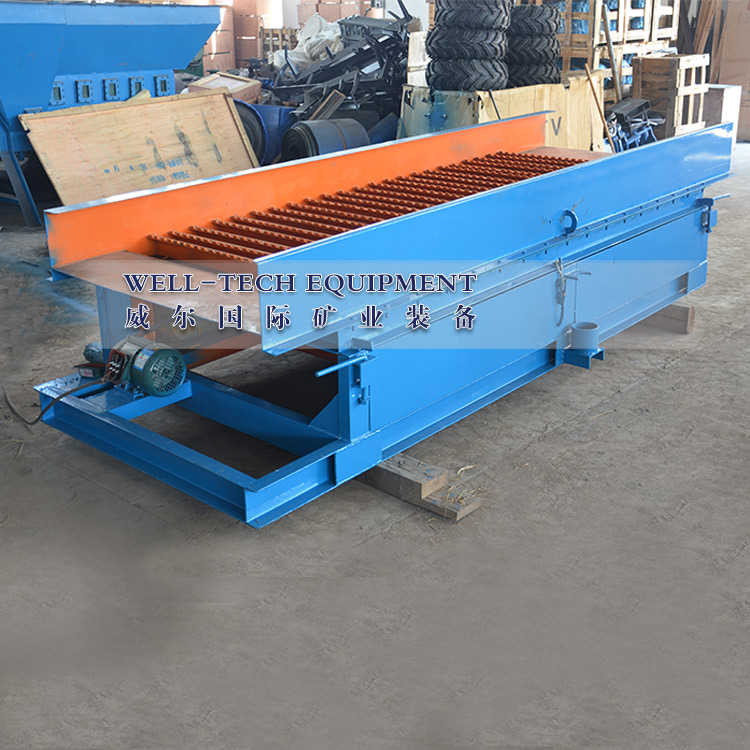

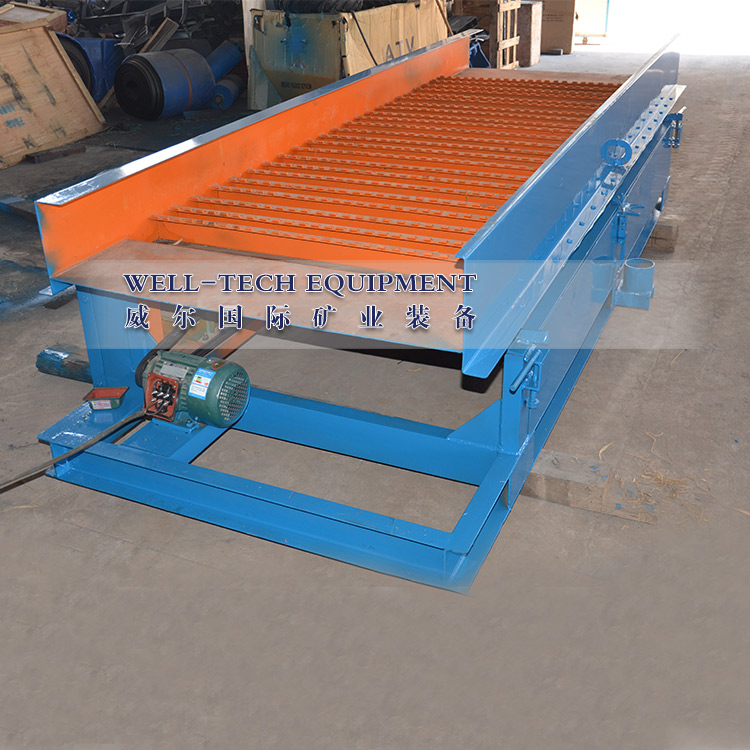

The vibrating gold sluice is composed by the mine tank,sluice box,rubber plate,push frame,lifting device,transmission and motor etc.
Most of gold exists as the micro fine gold in the nature. The fixed sluice box and gold rush grass are suitable for coarse gold,but not the micro fine gold.The fine gold is easy to floating on the water and discarded as tailings.
How to recycling the micro fine gold effectively? Vibrating sluice has motor power,vibrating frequency with 28-30 per minutes,small angle installation slope,water flow is lower,thus micro fine gold easily deposition. Grooved sluice box has new designed grid and riffles,causing lots of eddy currents increasing the gold separation time as well as polishing and washing the gravel and solids.
Application:
1.Reasonable structural design, convenient for transporting;
2.High degree of automation, Multi-machine joint workinghigh gold handling capacity with the daily capacity up to 2,000m3
3.Suitable for various areas, washing and separation are excellent in muddy areas of mines; It can also be suitable for processing minerals that may contain gravels and boulders;
4.Applicable to recycling bar gold, nuggets,slices and gold particles;
5.High degree of washing and recovery rate.
|
Product Name
|
Vibrating Sluice
|
|
Modle
|
FGS-12
|
FGS-15
|
|
Dimension(mm)
|
3200x1200x730
|
4000*1500*730
|
|
Capacity（m³/h)
|
20-25
|
30-35
|
|
Feeding size(mm)
|
<20
|
<20
|
|
Slurry density(%)
|
30
|
30
|
|
Water required(m³/h)
|
40-50
|
60-80
|
|
Motor power(KW)
|
1.1kw lifting device: 0.8KW
|
2.2kw lifting device: 0.8KW
|
|
Recovery（%）
|
90
|
90
|
|
Frequency(shift/min)
|
28-30
|
28-30
|
|
Slope angle for installation
|
6°-7°
|
6°-7°
|
|
Concentration Cleaning Up Cycle (h)
|
4
|
4
|
|
Weight(kg)
|
750
|
1100
|
Main Technical Parameters
