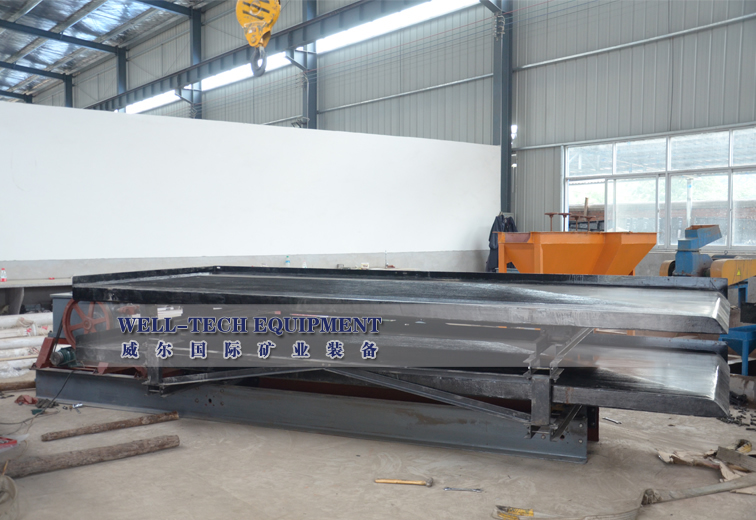

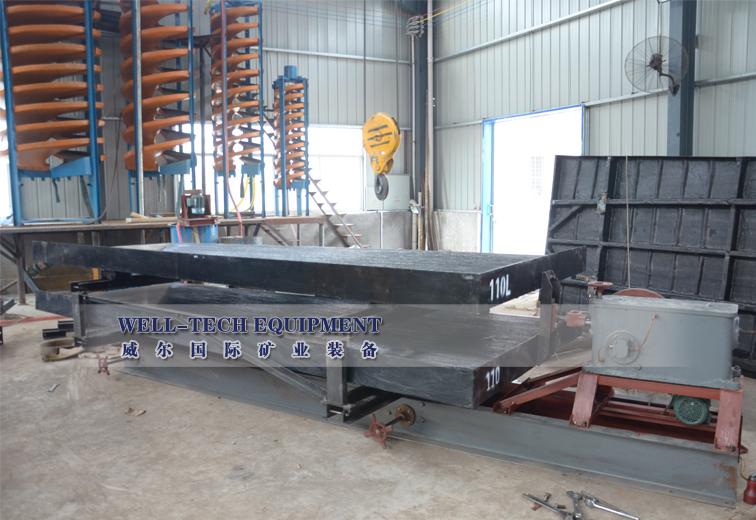

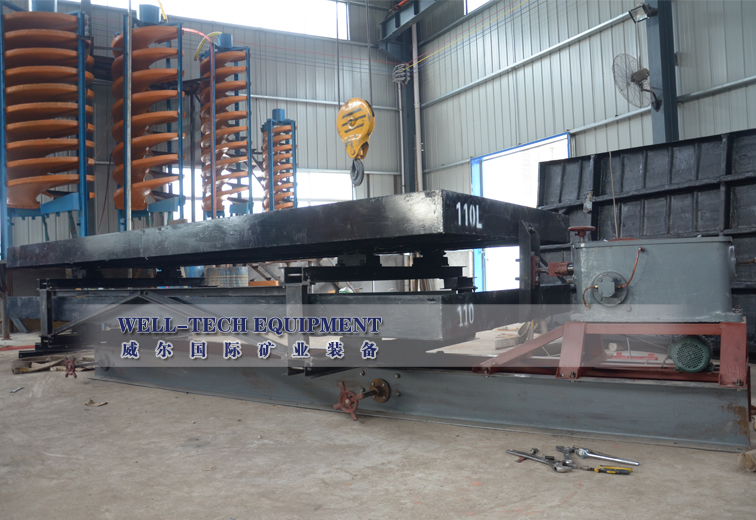

Double-deck shaking table
Double deck shaking table is widely used for tungsten, tin, tantalum and niobium, gold, iron, manganese and other metals, ferrous metals, nonferrous metals, precious metals and other minerals and coal sorting.
Descriptions
Double deck shaking table is widely used for tungsten, tin, tantalum and niobium, gold, iron, manganese and other metals, ferrous metals, nonferrous metals, precious metals and other minerals and coal sorting.
Traditional shaker covers an area of large, relatively low processing capacity,cost increases, double-shaker covers an area of inconvenience to deal with a large amount of equipment, low cost, Shaker is available in the double-sweep the election, featuring various operations, sorting coarse sand (2-0.5 mm), fine sand (0.5-0.74), sludge (0.074) different grain level, The same bed with hyperbolic rocker mechanism, the spring box in the shaker box, the crankshaft, rod, springs, rocker and so increase the size, material unchanged. The lower bed sharing a set of lower bed slope adjustment device used in shake liner support.
Technical Specifications
|
Model
|
Unit
|
DL4500/1850
|
DL3000/1320
|
|
Bed Size
|
mm
|
4500/1850/1560
|
3000/1320/1100
|
|
Stroke
|
mm
|
6-8
|
6-8
|
|
Frequency of stroke
|
/min
|
240-380
|
210-320
|
|
Slope
|
o
|
0-10
|
0-10
|
|
Feed size
|
mm
|
0.02-2
|
0.02-2
|
|
Feed density
|
%
|
10-30
|
10-30
|
|
Water
|
t/h
|
0.8-1.4
|
0.6-1.2
|
|
Power
|
kw
|
1.5
|
1.5
|
|
Capacity
|
t/h
|
2.5-3.5 (coarse sand)
|
2.5-3 (coarse sand)
|
|
t/h
|
1.6-2.5 (find sand)
|
0.8-2.5 (find sand)
|
|
Overall dimensions
|
mm
|
5600/1850/1560
|
4100/1320/1560
|
|
Weight
|
kg
|
1650
|
1550
|
