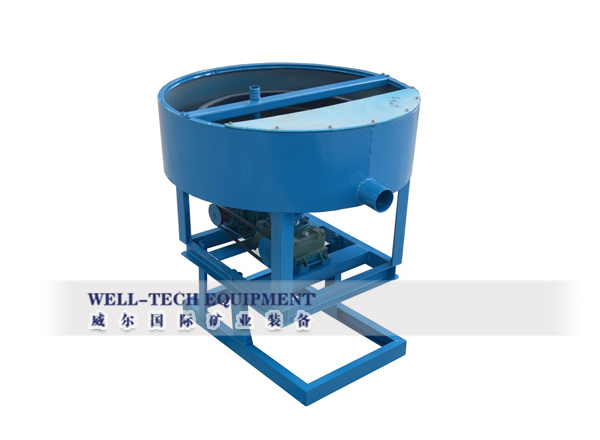

Gold Panning Machine

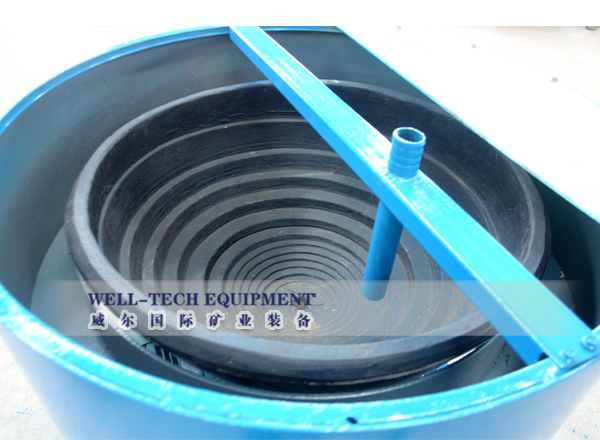

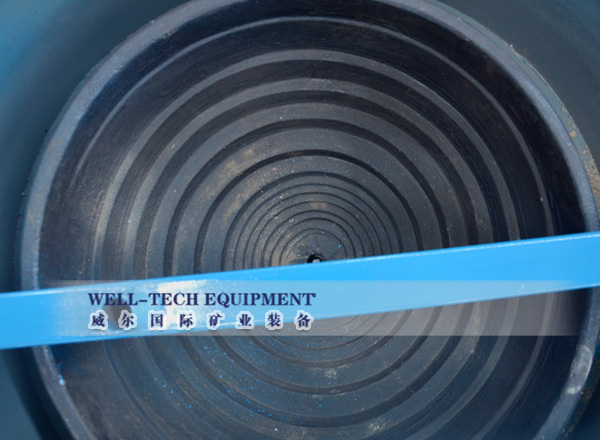

Gold panning machine is made of glass fiber reinforced formula manufacturing washing disc, which is better coefficient of friction in water medium. The gold panning machine   is available 15 μm above the natural gold particles, Enrichment ratio and strong, long used wear-resistant; has the advantages of simple structure, can be single or multi machine assembly, and grading equipment joint operation.


DescriptionParameter
Gold panning machine is made of glass fiber reinforced formula manufacturing washing disc, which is better coefficient of friction in water medium. The gold panning machine   is available 15 μm above the natural gold particles, Enrichment ratio and strong, long used wear-resistant; has the advantages of simple structure, can be single or multi machine assembly, and grading equipment joint operation.

Model

GD-Φ600A

GD-Φ600B

capacity (m3/h)

3~7

3~7

Fluidization Water Required (m3/h)

0.8-2

0.8-2

Feeding Density (%)

15~25

15~25

Feeding Size (mm)

3~0.074

3~0.074

Equipment Plate Size(mm)

Φ600

Φ600

Power Requirements (Kw)

0.75~1.1

0.75~1.1

Power Unit

Electric power

Gasoline powered

Center of rotation（rpm）

100~180

100~180

Equipment Weight (Kg)

100

100
