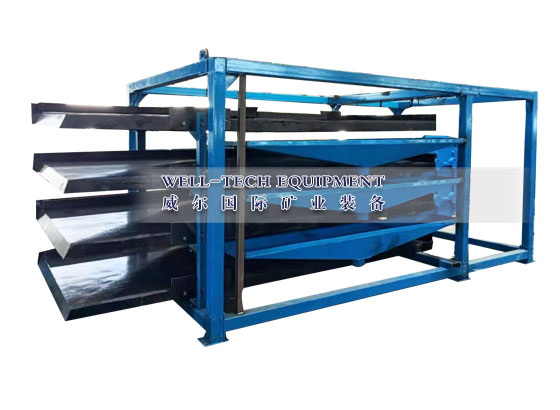

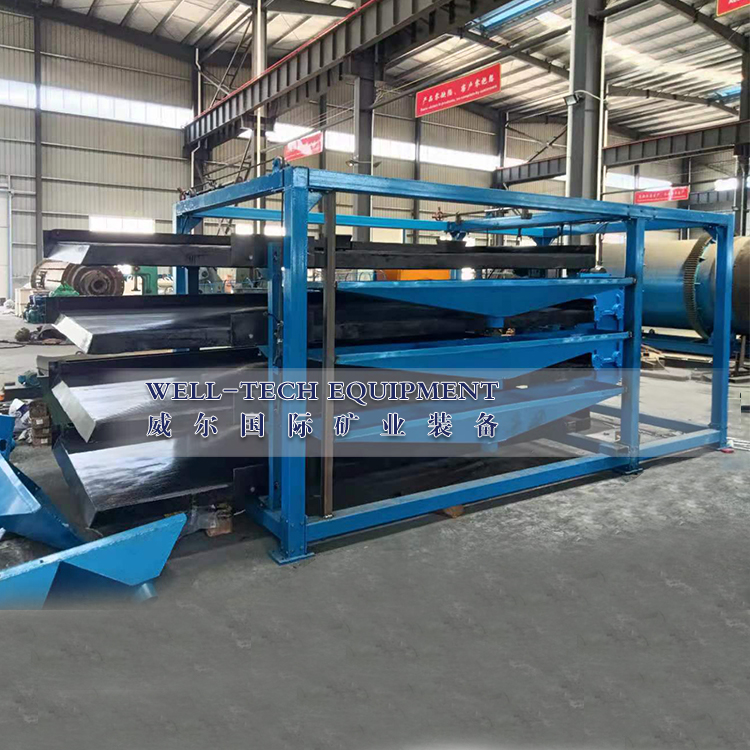

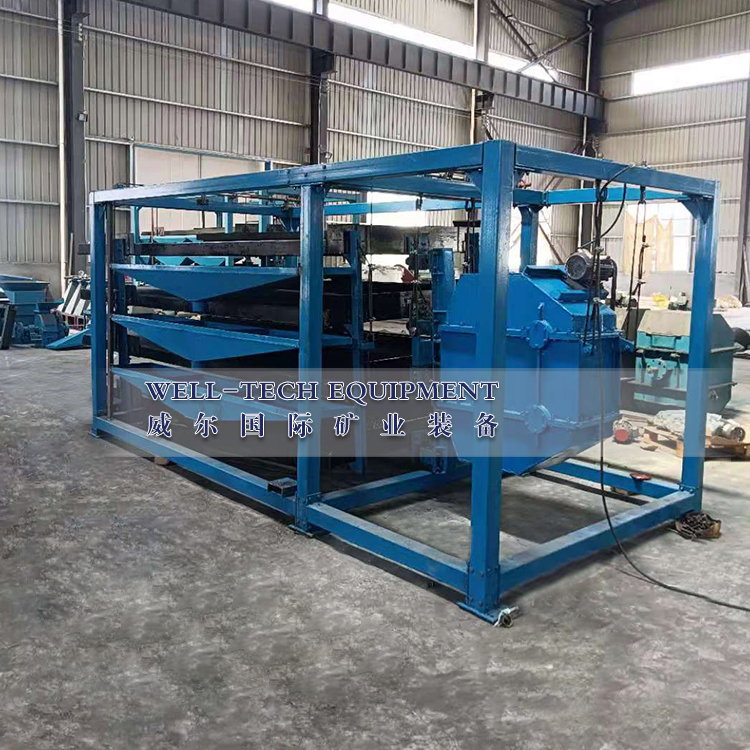

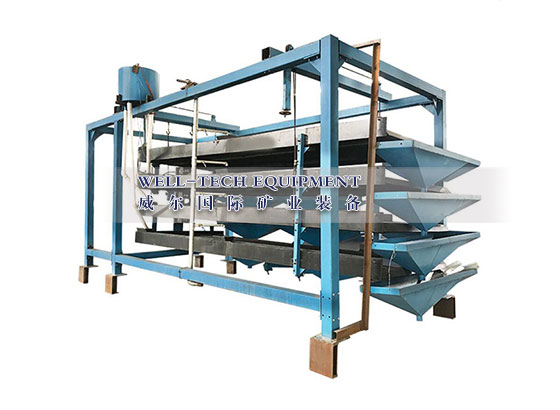

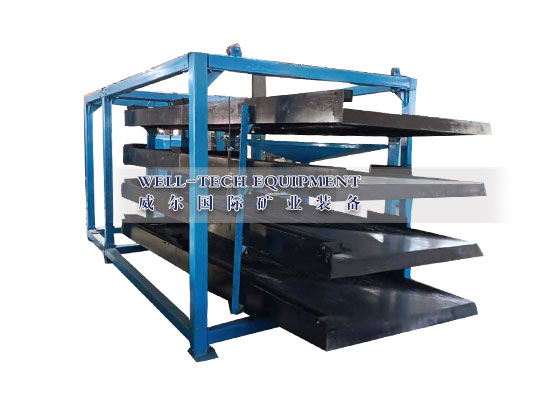

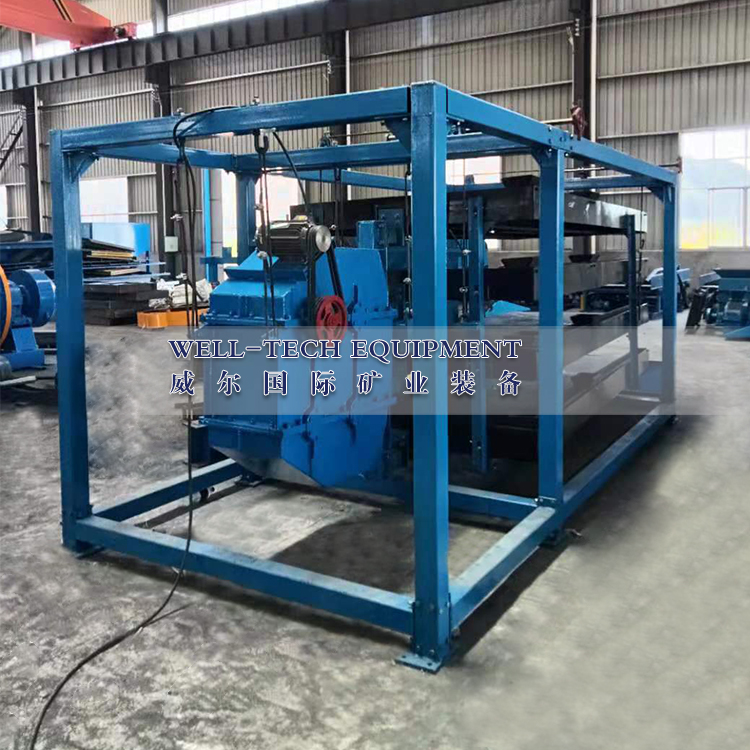

Multideck Lift Type Shaking Table

Shaking table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.


Descriptions
Shaking table which is also called table concentrator, it's effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The range of effective separating particle size of shaking table is 2 to 0.022 mm.

Advantages and Characteristics
1 Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating force. It can be installed on the building floor, or on the bracket
2 Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible installation
3 It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less maintenance, long service life
4 The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area. Replace different weight blocks can change the stroke of shaking table
5 It adopts variable-frequence governor, easily change frequency of stroke to adapt different material with different particle size and feature

Main Technical Parameters

Model

3LYG

4LYG

Deck type

Coarse ore Deck

Fine sand
Deck

Slime Deck

Coarse ore Deck

Fine sand
Deck

Slime Deck

Beneficiation area (m2)

7.6 X 3

7.6 X 3

7.6 X 3

7.6 X 4

7.6 X 4

7.6 X 4

Deck Size

Length (mm)

4500

4500

4500

4500

4500

4500

Transmission end width (mm)

1850

1850

1850

1850

1850

1850

Concentrate end width (mm)

1550

1550

1550

1550

1550

1550

Maximum feeding size (mm)

2

0.5

0.074

2

0.5

0.074

Capacity (t/h)

4-5

2-3

1.5-2.5

5-6.5

3-5

2-3.5

Feeding density (%)

20-30

18-25

15-20

20-30

18-25

15-20

Stroke (mm)

8101215182022

 Frequency of stroke (r/min)

270—360variable-frequence

Water consumption (t/h)

0.7-1

0.4-0.7

0.4-0.7

0.7-1

0.4-0.7

0.4-0.7

Groove shape of deck

 Available Rectangular, Saw-tooth, Triangle

Power (Kw)

1.5Kw

Dimensions (mm)

6330×2450×2660
