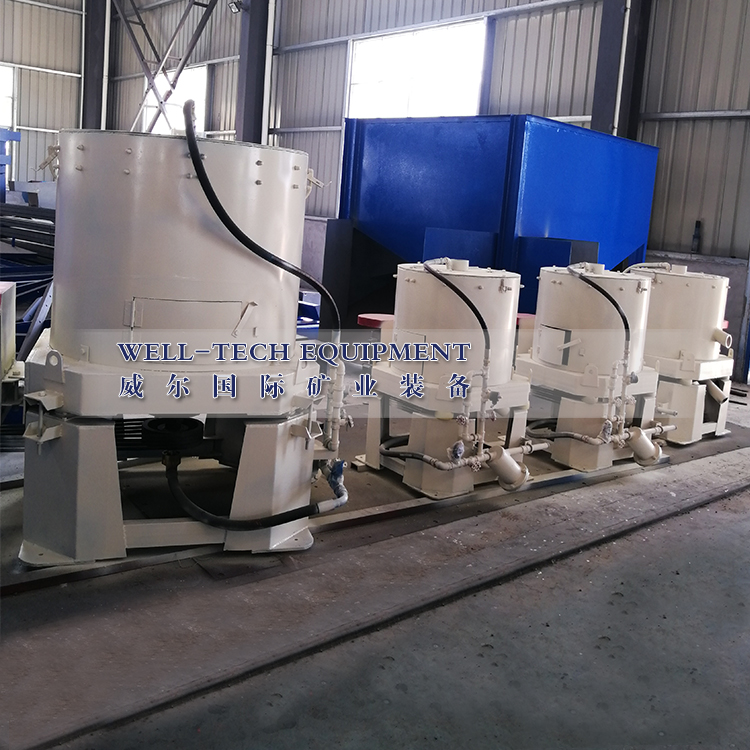

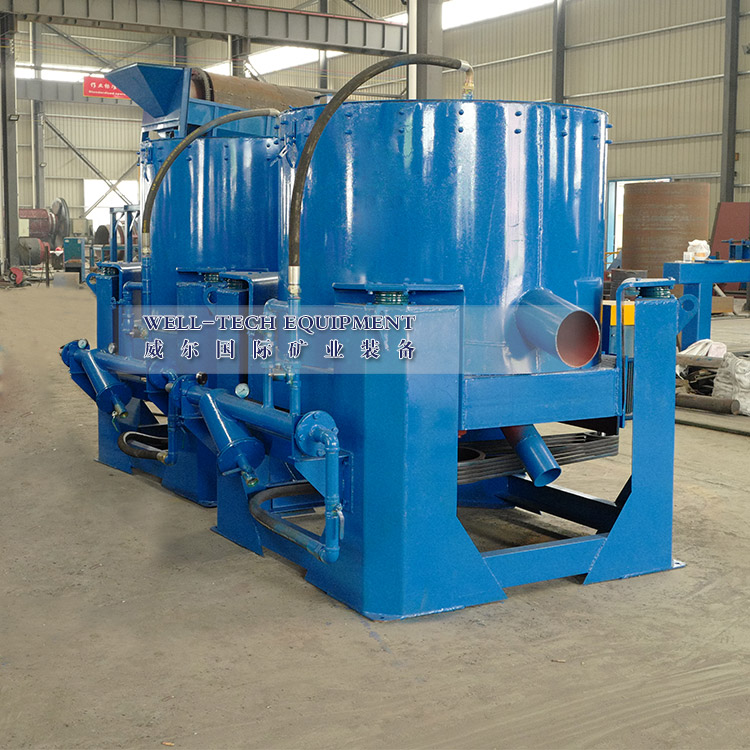

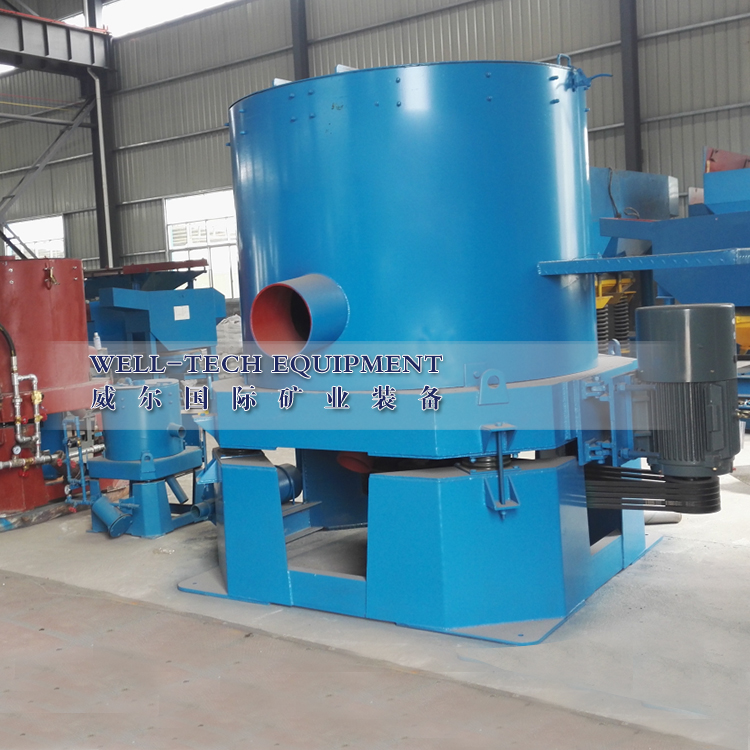

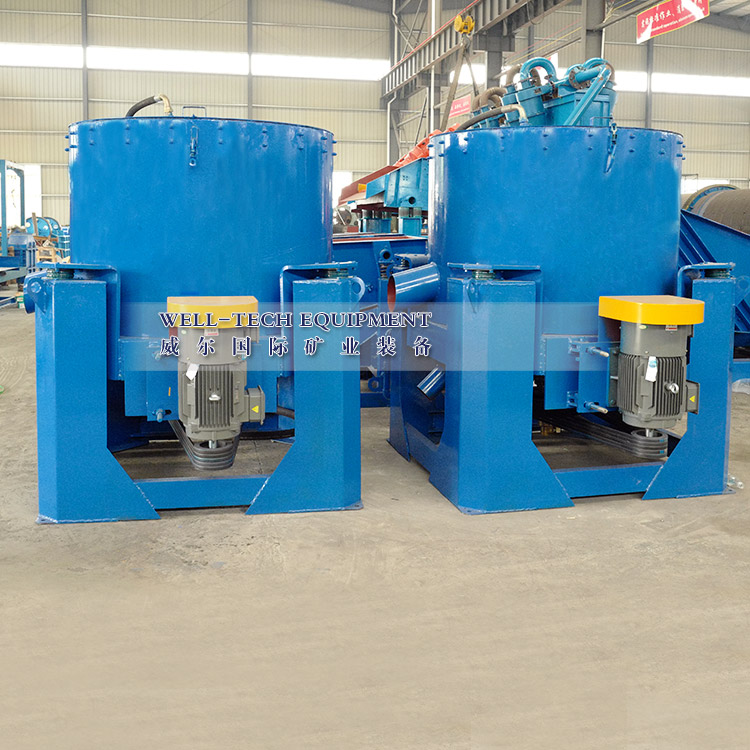

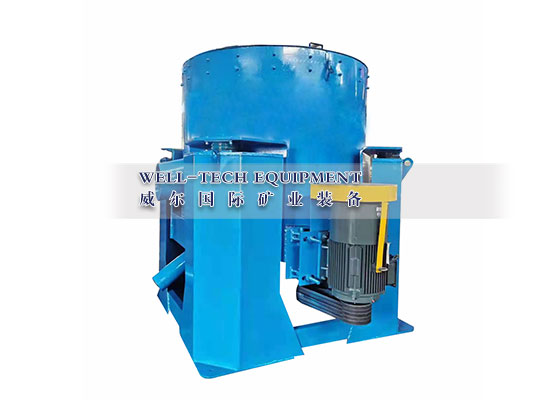

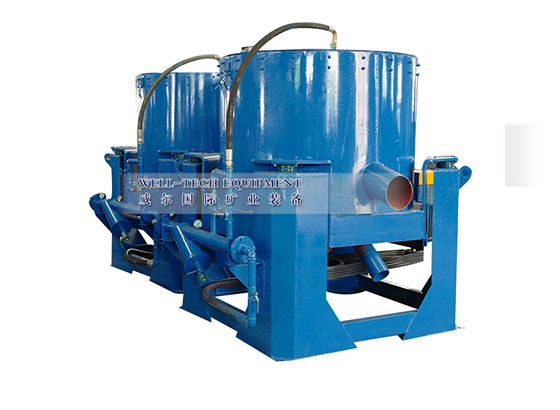

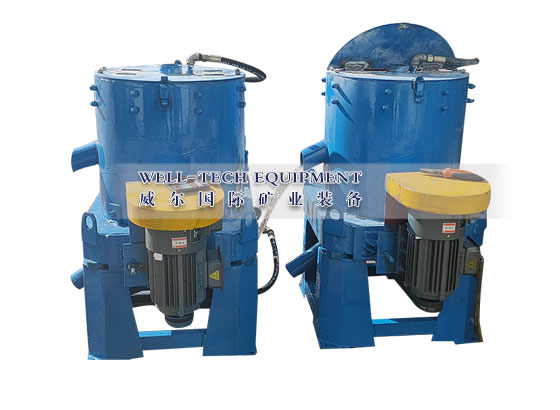

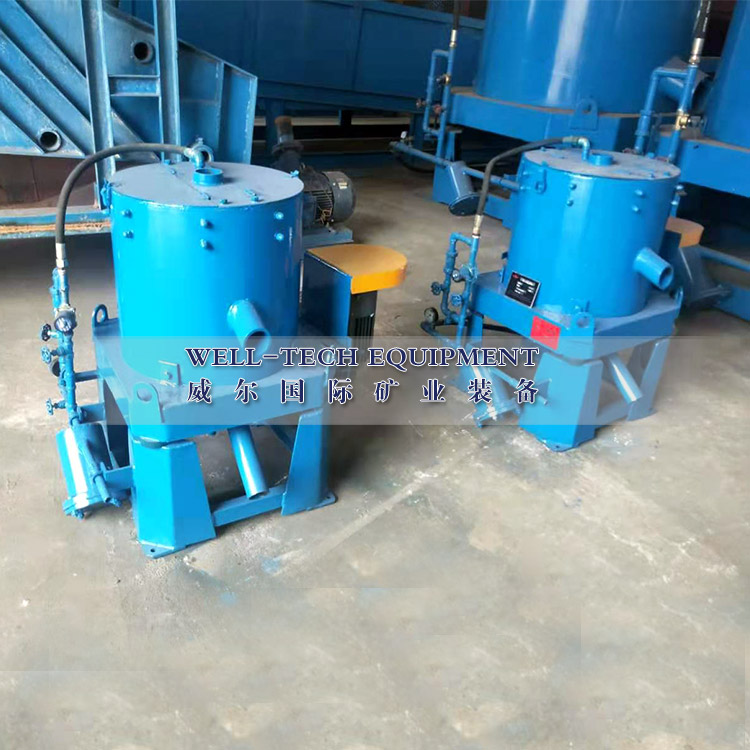

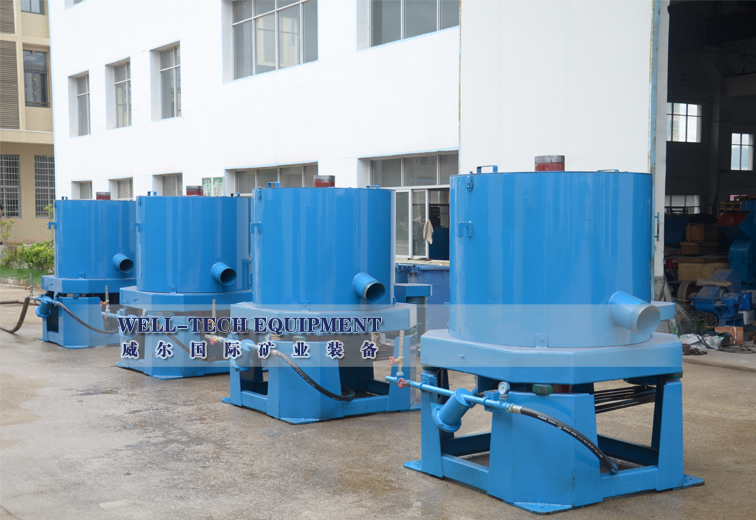

Centrifugal Gold Concentrator

Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges,specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for recover the natural gold from hard rocks, to replace amalgamation, and recover gold from the tailings.


Descriptions
Centrifugal gold concentrator is a relatively new type of gravity concentration apparatus. The machines utilise the principles of a centrifuge to enhance the gravitational force experienced by feed particles to effect separation based on particle density. The key components of the unit are a cone shaped "concentrate" bowl, rotated at high speed by an electric motor and a pressurized water jacket encompassing the bowl. Feed material,typically from a ball mill discharge or cyclone underflow bleed, is fed as a slurry toward the centre of the bowl from above.The feed slurry contacts the base plate of the vessel and due to its rotation, is thrust outward.The outer extremities of the concentrate bowl house a series of ribs and between each pair of ribs is a groove. During operation the lighter material flows upward over the grooves and heavy mineral particles (usually of economic value) become trapped within them. Pressurized water is injected through a series of tangential water inlets along the perimeter of each groove to maintain a fluidized bed of particles in which heavy mineral particles can be efficiently concentrated.

Centrifugal gold concentrator was patented in China. It is an efficient equipment for recovering free gold in all particle size ranges,specially for recovery of fine gold which is lost during the operation of the gravitational concentrators(sluice boxes and jigs). It can be used not only for placer gold mining, but also for recover the natural gold from hard rocks, to replace amalgamation, and recover gold from the tailings.

Application shows that the recovery can be as high as 99%, and the concentrating ratio is up to 1,000 times. In recovering the natural gold in lode ore with size -0.074mm, the gold is up to 98%, For 0.004mm in particle size, the gold recovery is 97%.

Advantages and Characteristics

1 High concentrating ratio and high recovery;
2 Steady recovery performance;
3 Center discharge design for fast,secure concentrate removal;
4 Environmentally friendly(requires no chemical additives or reagents);
5 Low water and electricity requirements;
6 Low production costs, durable wear parts, minimal maintenance requirements;
7 Compact design requiring less space, easy merged into the existing mining processing;
8 Quick payback on investment, typically lass than half year.


Our company developed automatic discharging system, now our new concentrators can be fully automated for washing. No longer needed wash concentrates by manpower, only needed push start and stop buttion on the antomatic control system to complete all works. Because whole process is closed operation, it can avoid man-made concentrate loss. Besides, our concentrator adopt soft materials at shock-absorbing places, it can effectually decrease negative effects issued from the vibration, and increase of service life.

Main Technical Parameters

Model

STLB20

STLB30

STLB60

STLB80

STLB100

Feeding Capacity (T/h)

0-0.6

2-3

8-12

40-45

60-80

Fluidization Water Required (m3/h)

2-3

3-5

7-10

30-36

50-60

Slurry Water Required (m3/h)

1.5-4

5-7

8-12

40-45

60-80

Feeding Density (%)

0-50

0-50

0-50

0-50

0-50

Feeding Size (mm)

0-3

0-3

0-5

0-5

0-6

Concentration Cleaning Up Cycle

Vein gold 1-3 Hours  Placer gold:2-6 Hours

Concentrate Weight (Kg)

2

3-5

10-20

40-50

70-80

Power Requirements (Kw)

0.75

1.5

4

11

18.5

Approximate Shipping Weight (Kg)

205

380

1100

2300

3700

Approximate Crated Shipping Dimensions (mm)

914×700×900

1160×885×1165

1820×1450×1700

2476×2032×2018

2849×2085×2426
