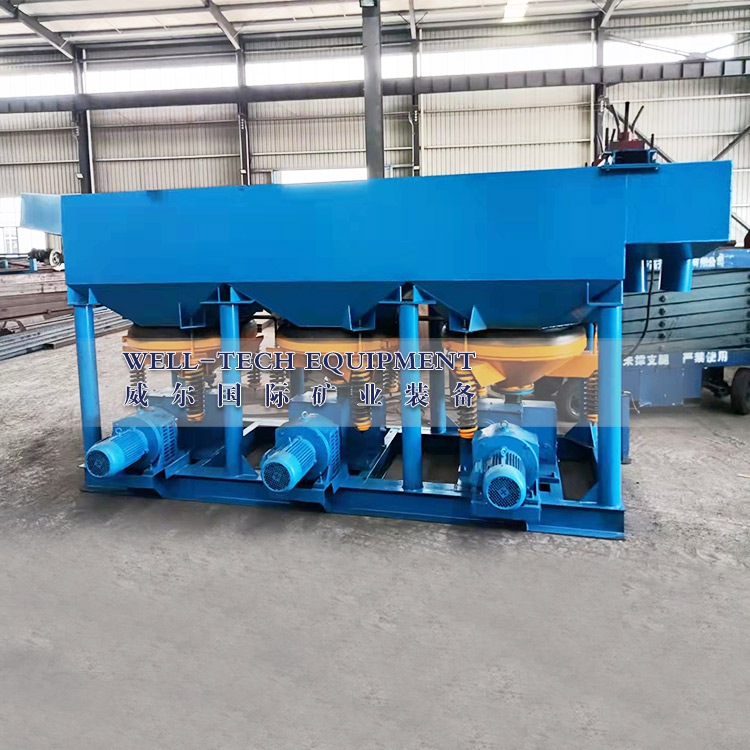

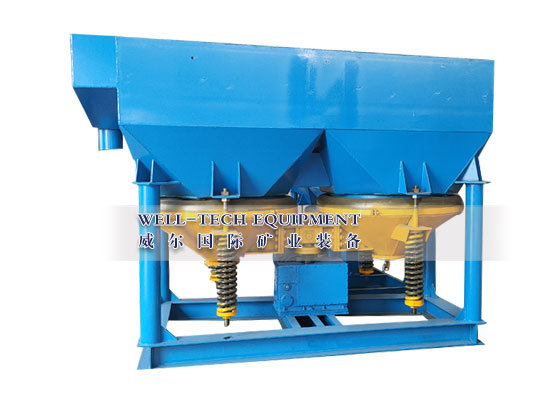

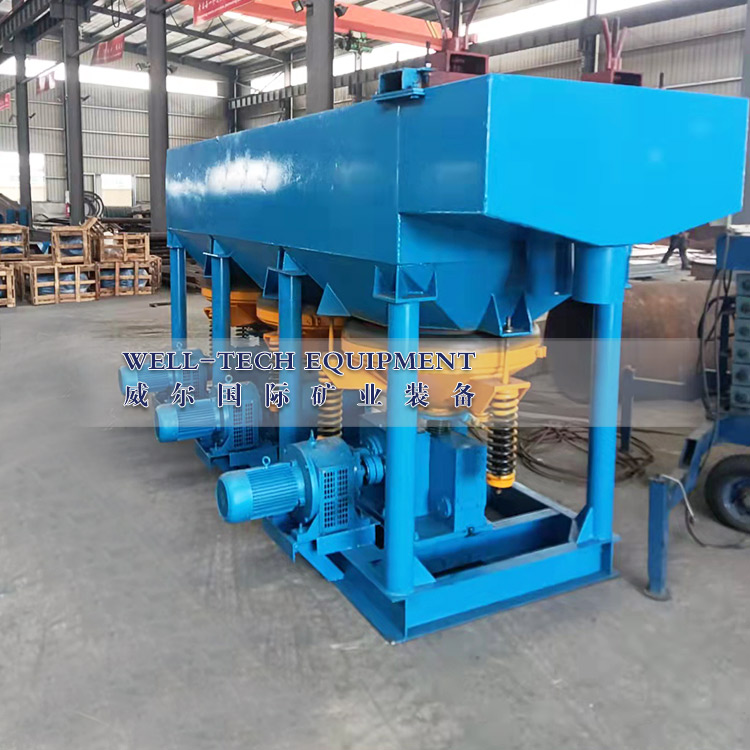

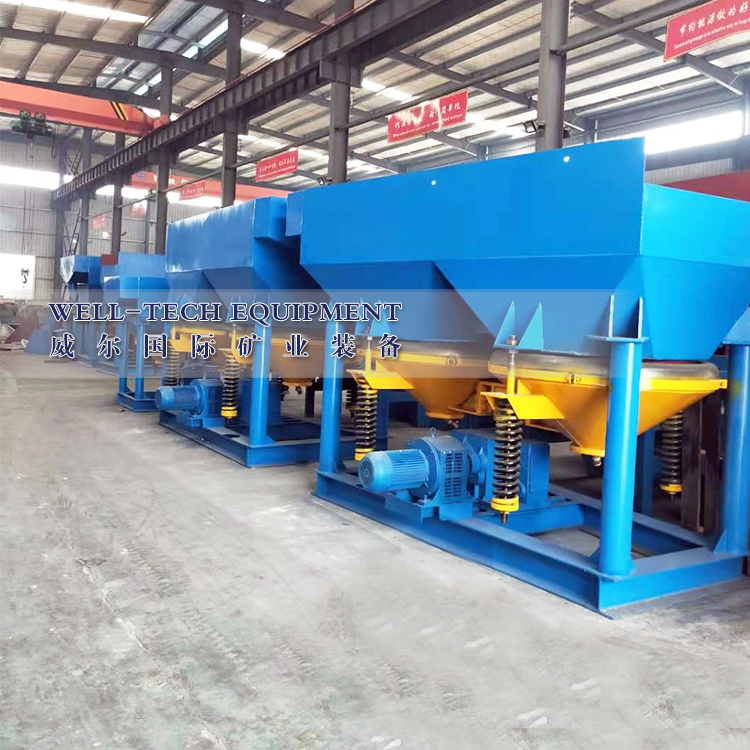

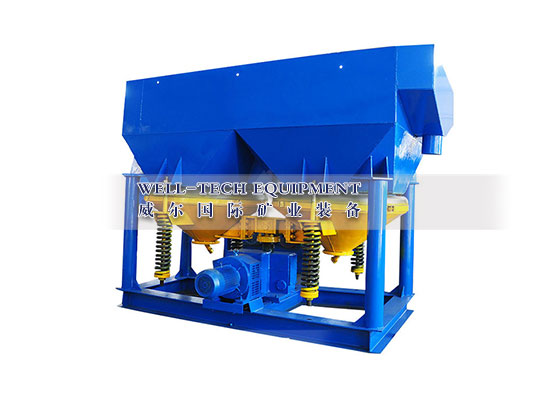

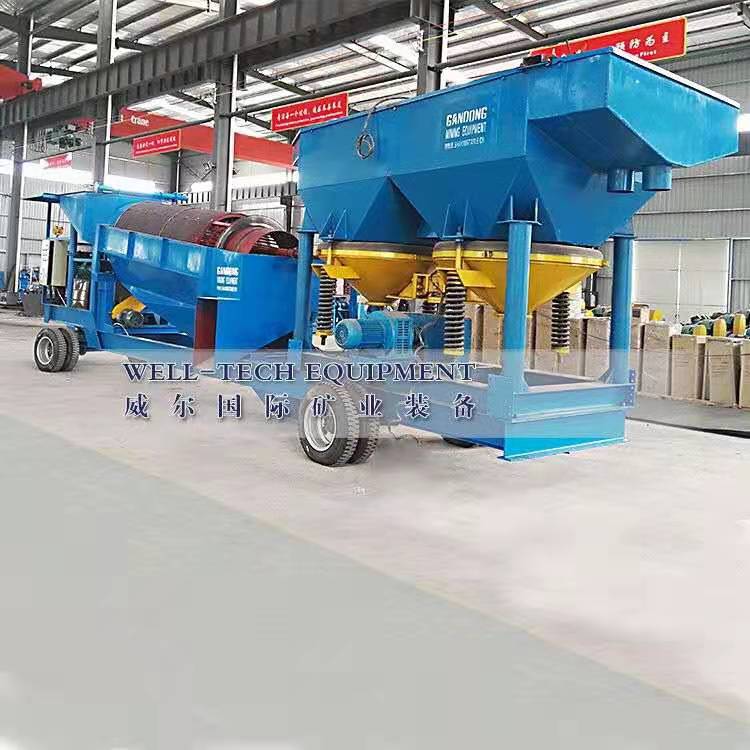

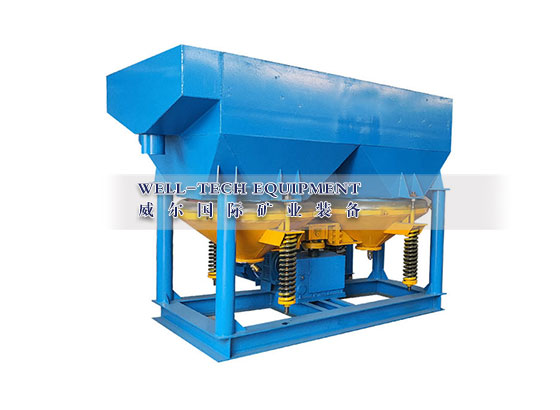

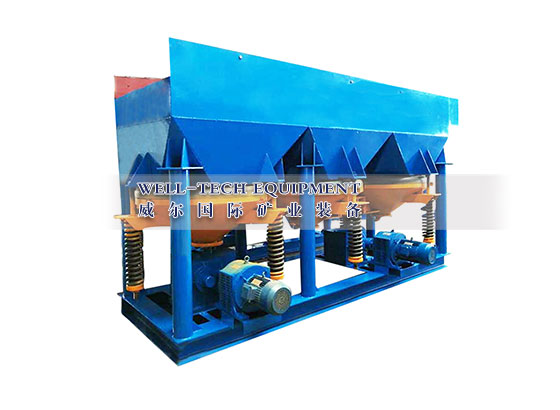

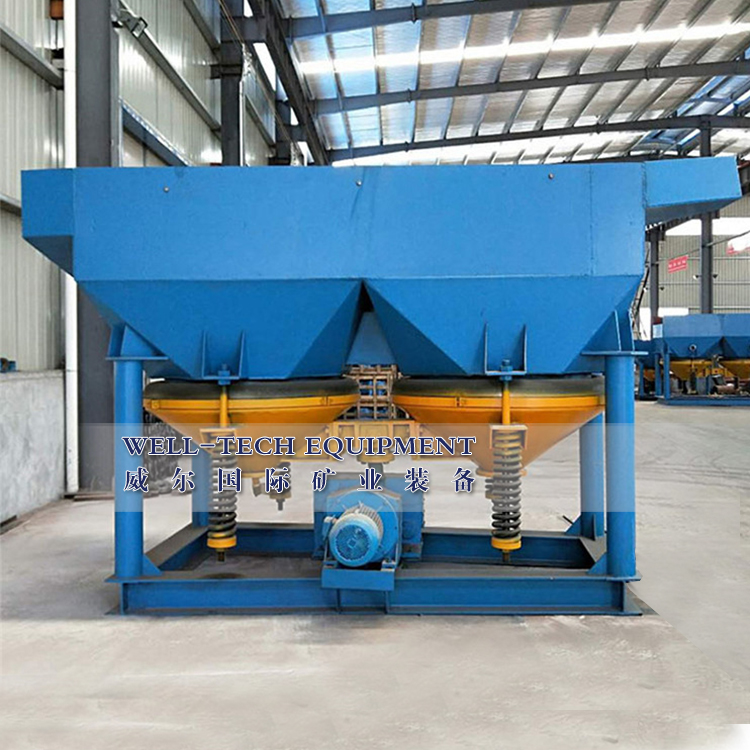

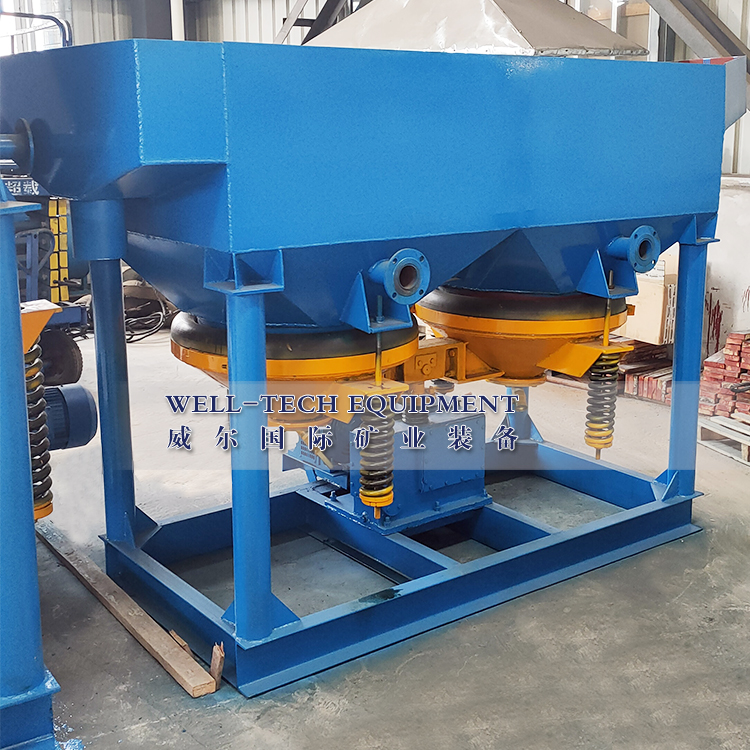

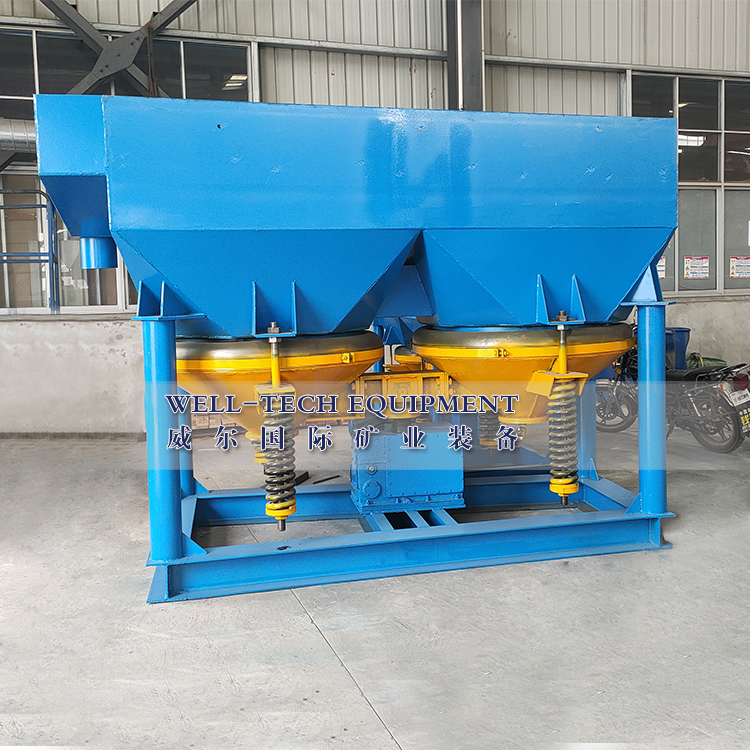

Jig Machine / Jigging Machine

Our Saw-tooth Wave Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow.


DescriptionParameter

Descriptions
Our Saw-tooth Wave Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for under size fraction.
In practice, contrast of Saw-tooth Wave Jig and Sine Wave Jig shows up raises of recovery of Saw-tooth Wave Jig: Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%.

Advantages and Characteristics
1 High capacity
2 High concentration ratio and high recovery
3 Easy to install, operate and maintain
4 The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5 Saving water 30-40% than ordinary jig
6 The pulsation speed very easy adjusted by regulator
7 Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc

Main Technical Parameters

Model

Hutch

Diaphragm

Feeding Size

(mm)

Makeup water

(m3/t)

Makeup water pressure

(Mpa)

Capacity

(t/h)

Power

(kw)

Dimensions

(mm)

Weight

(Kg)

Shape

Area

(m2)

Stroke

(mm)

Frequency of stroke

(r/min)

JT0.57-1

Trapezoid

0.57

8.5—12

10—17

12-21

80-180

<6

1-2

≥0.05

1.5-3

1.5

1550×780×1530

610

JT1-1

Trapezoid

1.04

<10

2-3

2.5-5

2.2

2270×1110×1890

900

JT2-2

Rectangle

2.28

<10

2-4

5-10

3

3225×1550×2050

1640

JT3-1

Trapezoid

3

12-30

50-125

<10

3-6

7.5-15

5.5

2745×2000×3030

3085

JT4-2

Rectangle

4

25-57

<25

4-8

8-20

7.5

4240×1990×2750

3098

JT4-2S

Rectangle

4

25-57

<25

4-8

8-20

4×2

4240×1990×2750

3500

JT5-2

Trapezoid

4.86

12-30

<10

3-6

12-25

7.5

3600×2000×2600

4500
