Descriptions

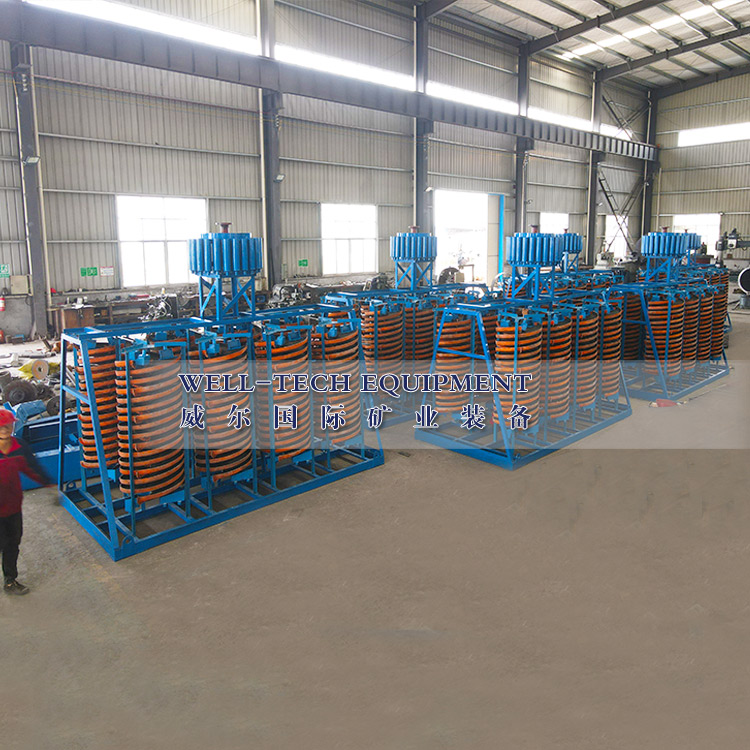

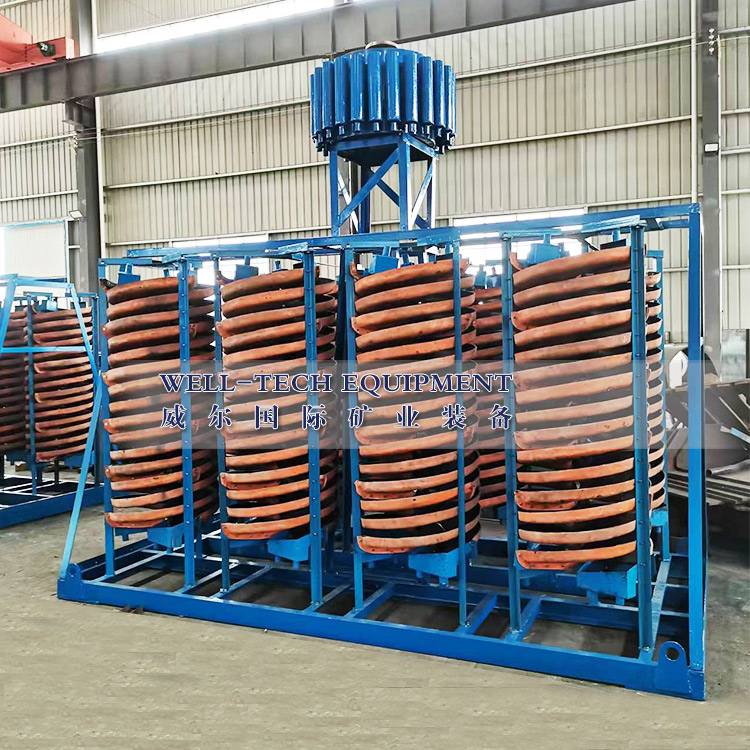

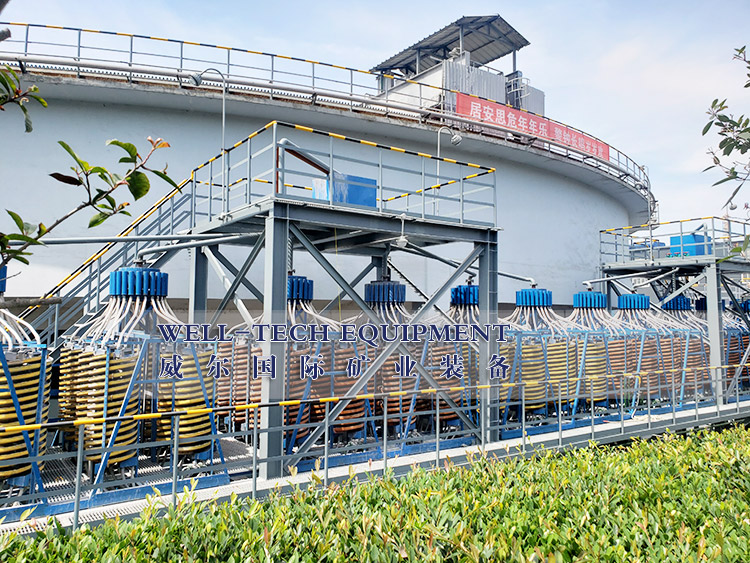

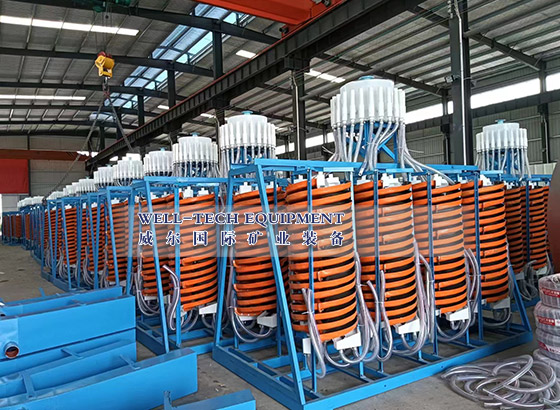

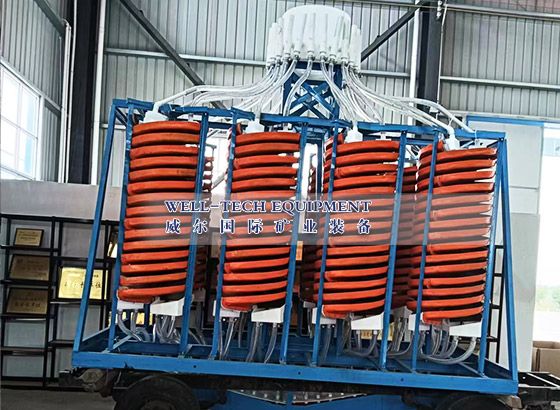

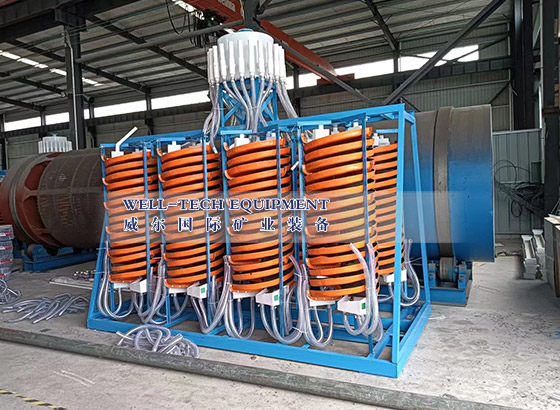

Spiral concentrator is our company’s concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream. The product is made of the fiberglass lined with wear-resistant resin and emery. It is the domestic advanced level, the new highly effective equipment, it has been widely used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon , other low-grade ores or non-metallic minerals which have a enough specific gravity difference.
Our company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified. We make the serialized with a special kind of grooved spiral separator to be selected by colored, ferrous metal mine, coal chemical industry, coal dressing, sulfur factory as well as the scientific research, the design department, the colleges and universities test chamber.
Advantages and Characteristics
1 Reasonable structure and small occupation area;
2 High recovery, high efficiency, and precise separation;
3 Non-required power;
4 Light in weight, anti corrosion, rust and wear resistant;
5 Simple installation and minimal maintenance requirements;
6 Low operating cost and long working life;
7 Reliable running with minimal operator attention;
8 Strong adaptability to fluctuation of feeding amount, density, size and grade;
9 The surface of emery forms strong friction the concentration effect surpass plastic surface.
Main Technical Parameters
Model
5LL-2000
5LL-1500
5LL-1200
5LL-900
5LL-600
5LL-400
Spiral Diameter(mm)
2000
1500
1200
900
600
400
Spiral Pitch(mm)
1200
800/680/540
720/540/360
660/540/400
450/360 /270
240/180
Starts
3
4
4
4
2
2
Feeding Sizes (mm)
4-0.04
0.8-0.037
0.3-0.03
0.3-0.03
0.2-0.02
0.2-0.02
Feeding Density (%)
20-45
30-60
25-35
25-55
25-55
25-55
Capacity (t/h)
15-40
6-8
4-6
2-3
0.4-0.8
0.15-0.2
Dimension
Length
2300
1560
1360
1060
700
460
Width
2300
1560
1360
1060
700
460
Height
6500
5230
5230
4000
2600
1500
Weight(Kg)
1100
800
600
400
150
50
(mm)
Model |
5LL-2000 |
5LL-1500 |
5LL-1200 |
5LL-900 |
5LL-600 |
5LL-400 |
|
Spiral Diameter(mm) |
2000 |
1500 |
1200 |
900 |
600 |
400 |
|
Spiral Pitch(mm) |
1200 |
800/680/540 |
720/540/360 |
660/540/400 |
450/360 /270 |
240/180 |
|
Starts |
3 |
4 |
4 |
4 |
2 |
2 |
|
Feeding Sizes (mm) |
4-0.04 |
0.8-0.037 |
0.3-0.03 |
0.3-0.03 |
0.2-0.02 |
0.2-0.02 |
|
Feeding Density (%) |
20-45 |
30-60 |
25-35 |
25-55 |
25-55 |
25-55 |
|
Capacity (t/h) |
15-40 |
6-8 |
4-6 |
2-3 |
0.4-0.8 |
0.15-0.2 |
|
Dimension |
Length |
2300 |
1560 |
1360 |
1060 |
700 |
460 |
Width |
2300 |
1560 |
1360 |
1060 |
700 |
460 |
|
Height |
6500 |
5230 |
5230 |
4000 |
2600 |
1500 |
|
Weight(Kg) |
1100 |
800 |
600 |
400 |
150 |
50 |
