Brief Introduction
The dry permanent high-intensity roller magnetic separator uses the magnetic source from high-performance permanent rare earth elements neodymium, iron and boron through aggregation. This machine is advantaged in light weight, high magnetic field intensity, low power consumption, stable performance and wide applications.
This machine is used for magnetic separation of manganese lean ore and only consumes about 0.2 kW.h for every separation of 1-ton manganese ore. It can aggregate one-off the manganese lean ores smaller than 15mm and enhance the manganese crystal grade by 3-18 degree. This provides an excellent solution to the long-existing problems that the manganese lean ores could not be fed into the furnace for smelting.
It is used for magnetic separation and recycling of rare earth ores. It can make full recycling of the rare earth tailings that are not recycled by the rocking bed, with a recycling ratio over 95%. It can also be used for one-off magnetic separation of zircon, rutile and niobium-tantalum ore.
Application
This machine is mainly used for separation and refining of the manganese ore, rare earth ore, niobium-tantalum ore, limonite, chromite, titanium ore, zircon, monazite, rutile, garnet and andalusite, as well as for removal of irons from non-metallic materials like quartz and feldspar.
Single roller series
|
Model
|
Magnetic intensity
(MT)
|
Power
(Kw)
|
Rotating speed
(r/min)
|
Feeding size
(mm)
|
Capacity
(t/h)
|
Weight
(Kg)
|
|
CGRф110×400
|
1100~1450
|
0.37
|
0~300
|
10~0
|
0.6~0.2
|
250
|
|
CGRф110×500
|
1100~1450
|
0.37
|
0~300
|
10~0
|
0.75~0.23
|
270
|
|
CGRф110×650
|
1100~1450
|
0.37
|
0~300
|
10~0
|
0.1~0.3
|
280
|
|
CGRф135×280
|
1100~1450
|
0.37
|
0~300
|
15~0
|
0.75~0.12
|
270
|
|
CGRф135×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.0~0.18
|
290
|
|
CGRф135×500
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.3~0.2
|
300
|
|
CGRф135×650
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.7~0.3
|
300
|
|
CGRф160×280
|
1100~1450
|
0.37
|
0~300
|
15~0
|
0.85~0.13
|
260
|
|
CGRф160×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.4~0.2
|
330
|
|
CGRф160×500
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.8~0.25
|
390
|
|
CGRф160×650
|
1100~1450
|
0.37
|
0~300
|
15~0
|
2.3~0.35
|
460
|
|
CGRф200×280
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.4~0.2
|
280
|
|
CGRф200×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
2~0.3
|
350
|
|
CGRф200×500
|
1100~1450
|
0.37
|
0~300
|
15~0
|
2.5~0.35
|
410
|
|
CGRф200×650
|
1100~1450
|
0.37
|
0~300
|
15~0
|
3.2~0.45
|
480
|
|
CGRф240×280
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.7~0.25
|
320
|
|
CGRф240×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
2.5~0.35
|
400
|
|
CGRф240×500
|
1100~1450
|
0.37
|
0~300
|
15~0
|
3~0.45
|
550
|
|
CGRф240×650
|
1100~1450
|
0.37
|
0~300
|
15~0
|
4~0.58
|
650
|
|
CGRф380×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
3.5~0.5
|
470
|
|
CGRф380×500
|
1100~1450
|
0.37
|
0~300
|
15~0
|
4.6~0.65
|
680
|
|
CGRф380×650
|
1100~1450
|
0.37
|
0~300
|
15~0
|
5.5~0.6
|
790
|

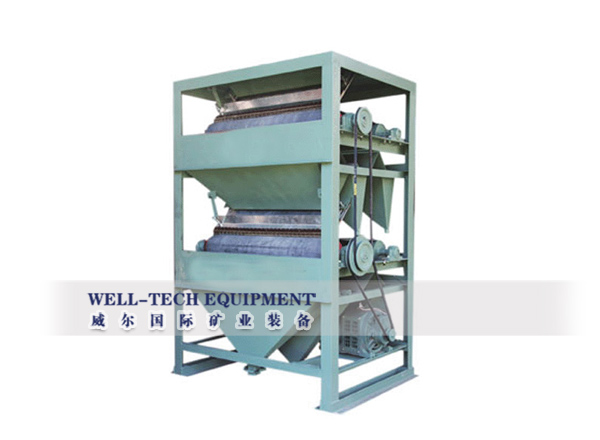

Double rollers series
|
Model
|
Magnetic intensity
(MT)
|
Power
(Kw)
|
Rotating speed
(r/min)
|
Feeding size
(mm)
|
Capacity
(t/h)
|
Weight
(Kg)
|
|
2CGRф110×400×280
|
1100~1450
|
0.37
|
0~300
|
10~0
|
0.8~0.23
|
300
|
|
2CGRф110×500×400
|
1100~1450
|
0.37
|
0~300
|
10~0
|
1.1~0.3
|
320
|
|
2CGRф110×650×400
|
1100~1450
|
0.37
|
0~300
|
10~0
|
1.3~0.36
|
360
|
|
2CGRф135×400×280
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.5~0.3
|
290
|
|
2CGRф135×500×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.9~0.4
|
320
|
|
2CGRф135×650×400
|
1100~1450
|
0.37
|
0~300
|
15~0
|
2.3~0.46
|
350
|
|
2CGRф135×650×500
|
1100~1450
|
0.55
|
0~300
|
15~0
|
2.5~0.5
|
380
|
|
2CGRф160×400×280
|
1100~1450
|
0.37
|
0~300
|
15~0
|
1.95~0.3
|
400
|
|
2CGRф160×500×400
|
1100~1450
|
0.55
|
0~300
|
15~0
|
2.6~0.4
|
460
|
|
2CGRф160×650×400
|
1100~1450
|
0.55
|
0~300
|
15~0
|
3~0.45
|
520
|
|
2CGRф160×650×500
|
1100~1450
|
0.55
|
0~300
|
15~0
|
3.3~0.5
|
580
|
|
2CGRф200×400×280
|
1100~1450
|
0.55
|
0~300
|
15~0
|
2.6~0.35
|
440
|
|
2CGRф200×500×400
|
1100~1450
|
0.55
|
0~300
|
15~0
|
3.4~0.46
|
570
|
|
2CGRф200×650×400
|
1100~1450
|
0.55
|
0~300
|
15~0
|
4~0.54
|
620
|
|
2CGRф200×650×500
|
1100~1450
|
0.75
|
0~300
|
15~0
|
4.4~0.6
|
660
|
|
2CGRф240×400×280
|
1100~1450
|
0.55
|
0~300
|
15~0
|
3.5~0.4
|
520
|
|
2CGRф240×500×400
|
1100~1450
|
0.75
|
0~300
|
15~0
|
4.7~0.5
|
650
|
|
2CGRф240×650×400
|
1100~1450
|
0.75
|
0~300
|
15~0
|
5.5~0.6
|
740
|
|
2CGRф240×650×500
|
1100~1450
|
0.75
|
0~300
|
15~0
|
6~0.7
|
780
|
|
2CGRф380×400×280
|
1100~1450
|
0.55
|
0~300
|
20~0
|
4.5~0.6
|
950
|
|
2CGRф380×500×400
|
1100~1450
|
0.75
|
0~300
|
20~0
|
6~0.77
|
1260
|
|
2CGRф380×650×400
|
1100~1450
|
0.75
|
0~300
|
20~0
|
7~0.9
|
1450
|
