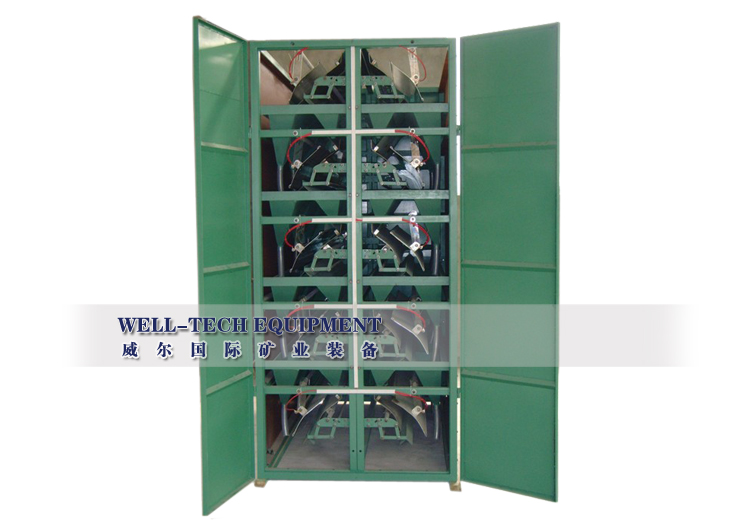

Arc Plate Electrostatic Separator

Arc Plate Electrostatic Separator is suitable to separation of conductive mineral and non-conductive mineral, thus to obtain high-grade conductive concentrates and non-conductive concentrates, e.g. rutile ore and zircon ore.


DescriptionParameter
Work principle
Arc Plate Electrostatic Separator performs separation under the electric intensity and gravity force based on the difference of minerals in their conductivity and the variation of electrostatic force applied on these minerals when they pass through the electric field.

Application
It is suitable to separation of conductive mineral and non-conductive mineral, thus to obtain high-grade conductive concentrates and non-conductive concentrates, e.g. rutile ore and zircon ore. It may be used in combination with single-disc separator, double-disc separator, permanent magnetic separator and electromagnetic separator. This machine is equipped with 0 – 45000V high-voltage generator, so that it can also be used for separating the high-phosphorus ore or rutile ore that is difficult to separate.

Technical Specifications

型号 Model

BXJ-2A4-30 双面四级

BXJ-2A5-60双面五级

处理量 Capacity

1-2T/H

1-2T/H

给料粒度 Feeding size

0.1-3mm

0.1-3mm

矿流速度 Feeding speed

10-15cm/s

10-15cm/s

弧板长度 Arc-Plate size

1600

1600

耗电功率 Power consumption

125W



高压电压 Operation voltage

0-60KV

0-60KV

高压电流 High voltage current

0-10MA

0-10MA

重量 Machine weight

1688KG

2100KG

外形尺寸 Overall size

2100*1600*2300mm

2100*1600*2500mm
