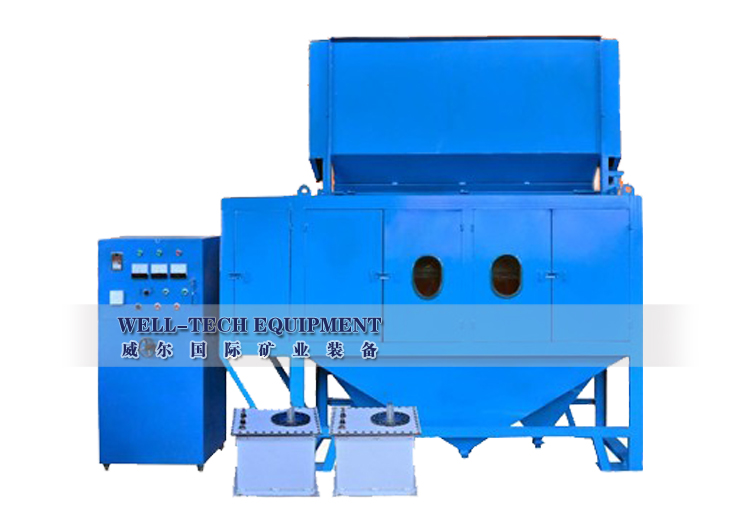

High Tension Electrostatic separator

Electrostatic separator is a product exclusively developed by our factory. It is a dry-type equipment which performs separation in high-voltage corona field based on the difference of materials in electric performance.


DescriptionParameter
Electrostatic separator is a product exclusively developed by our plant. It is a dry-type equipment which performs separation in high-voltage corona field based on the difference of materials in electric performance. It is suitable to mechanical pilot feeder of fine powder. Heating device is installed inside the separation drum. It features in wide range of electric field, powerful electric strength, stable electromechanical performance, high efficiency and low energy consumption. The complete machine is available in multiple structure arrangements, including single-layer, two-layer, three-layer and double-roller in parallel. The multi-layer electric separator can perform rough separating, cleaning, scavenging and spoil reclaiming within the machine as needed, resulting in simplified operation and enhanced efficiency.

Technical Specifications

规格 Model

BT380×600

BT380×800

BT380×1000

BT380×1500

筒体尺寸 Drum size (mm)

Ф380×600

Ф380×800

Ф380×1000

Ф380×1500

磁感应强度 Magnetic intensity (Gs)

7500~9000

7500~9000

7500~9000

7500~9000

传动功率 Power (Kw)

2.2

2.2

3

4

滚筒转速 Rotating speed (r/min)

0~300

0~300

0~300

0~300

给料粒度 Feeding size (mm)

﹤2

﹤2

﹤2

﹤2

处理能力 Capacity (t/h)

0.6~1.2

0.8~1.6

1~2

1.5~3

外形尺寸 Dimension (mm)

990×1430×1950

1190×1430×1950

1390×1430×1950

1890×1430×1950

机重 Weight (Kg)

950

1200

1300

1650
