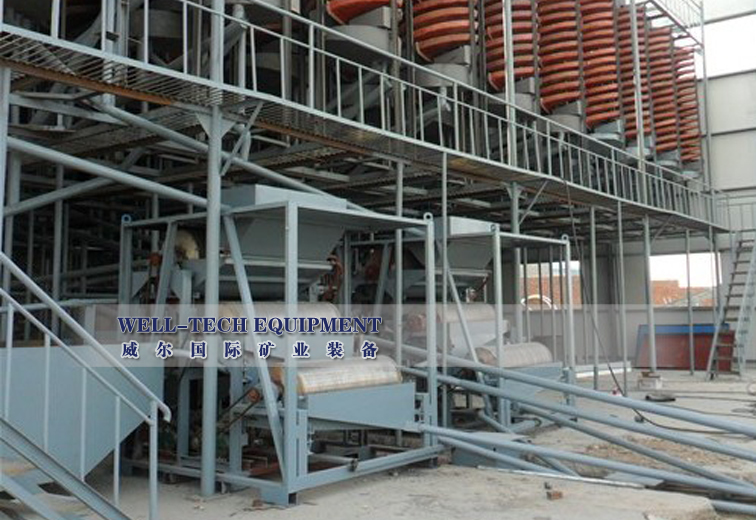

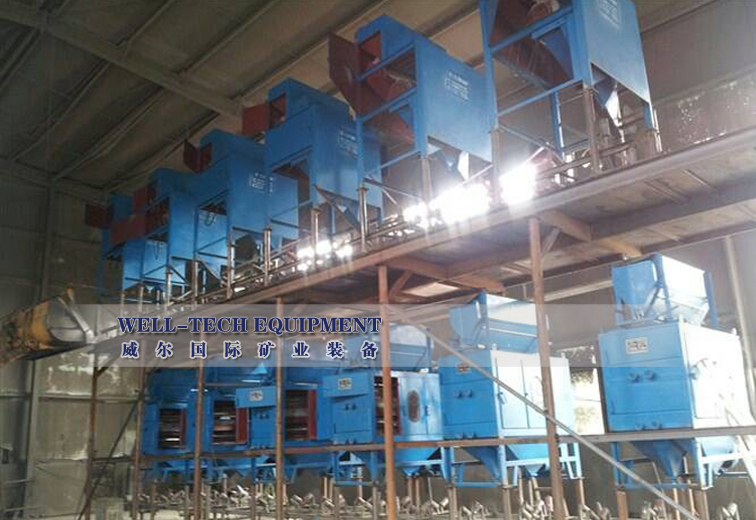

BT Dry Permanent Drum Magnetic Separator

BT Dry Permanent Drum Magnetic Separator is mainly used for separation and refining of ilmenite, chromite, garnet, quartz, feldspar etc.


Brief Introduction
BT dry permanent drum magnetic separator is dry type magnetic separator, Compared other magnetic separator this type of separators have characteristics such as light body, easy operation and maintenance, stable performance, low energy consumption, large handling capacity, clear dividing line of magnetic separation. The core component of the separator is made of high performance permanent material earth NdFeB, The magnetic strength of drum surface can reach 7500-9000Gs, it can be used for good magnetism difference mineral such as ilmenite, chromite, garnet, quartz, feldspar etc. The drum is made of no magnetism stainless steel let it can be durable in use, the separator adopts electromagnetic stepless speed regulation motor, through the rotary handle on the motor can get 1-5 times range of rotation speeds. The separator has a weak magnetic de-ironing drum on upside, it can remove iron directly before purify process.

Structure and Working Principle
This kind of machine is mainly composed of feeding device, electromagnetic stepless speed regulation motor (or frequency conversion stepless speed regulation motor), weak magnetic de-ironing drum, strong magnetic separation drum, ore separation plate, concentrate discharge hopper, middling and tailing discharge hopper.
The raw ores to be selected first remove the strong magnetic ore (Fe3O4) in the raw ores when passing from the hopper through the weak magnetic de-ironing drum. Then they pass the strong magnetic separation drum. Since the magnetic ores is under the action of magnetic force in the drum and non-magnetic minerals are under the action of rotating centrifugal force of drum, different tracks are left. Then coupled with combined regulation of ore separating plate, best ore separation effects can be achieved.

Technical Specifications

规格 Model

BT380×600

BT380×800

BT380×1000

BT380×1500

筒体尺寸 Drum size (mm)

Ф380×600

Ф380×800

Ф380×1000

Ф380×1500

磁感应强度 Magnetic intensity (Gs)

7500~9000

7500~9000

7500~9000

7500~9000

传动功率 Power (Kw)

2.2

2.2

3

4

滚筒转速 Rotating speed (r/min)

0~300

0~300

0~300

0~300

给料粒度 Feeding size (mm)

2

2

2

2

处理能力 Capacity (t/h)

0.6~1.2

0.8~1.6

1~2

1.5~3

外形尺寸 Dimension (mm)

990×1430×1950

1190×1430×1950

1390×1430×1950

1890×1430×1950

机重 Weight (Kg)

950

1200

1300

1650
