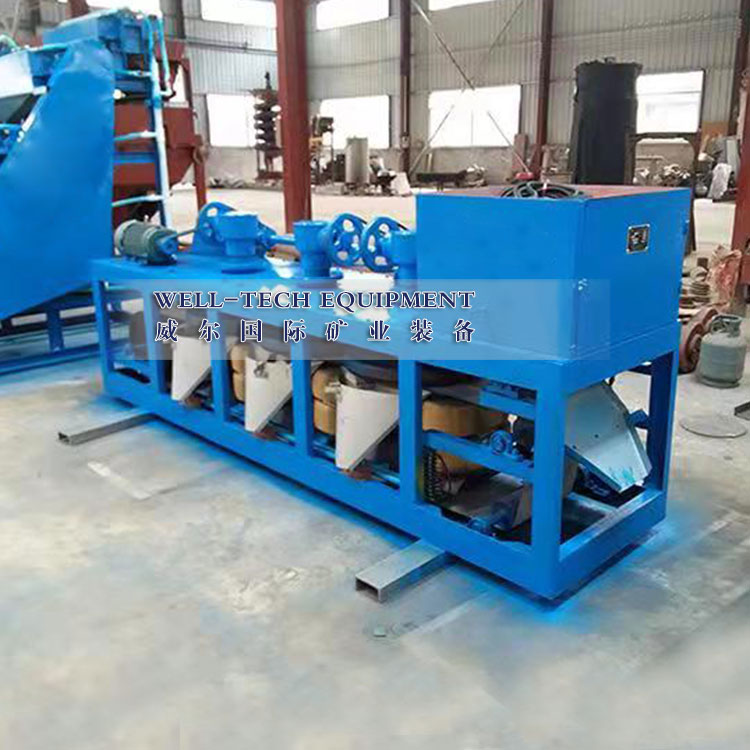

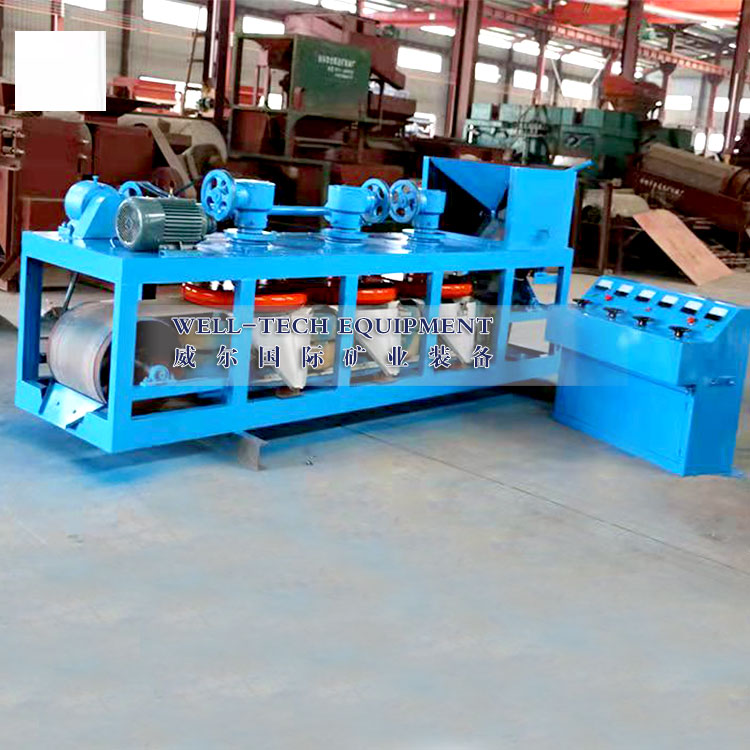

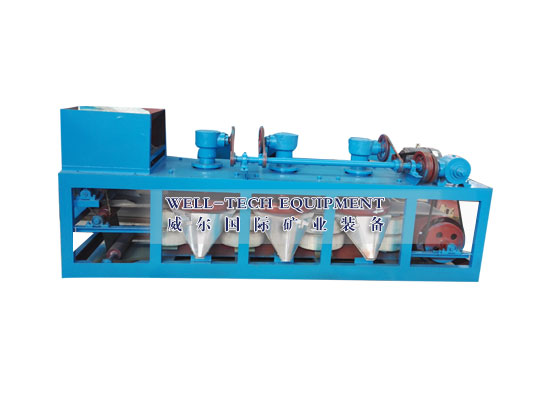

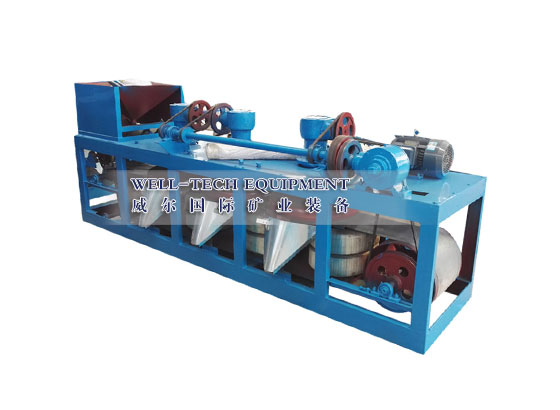

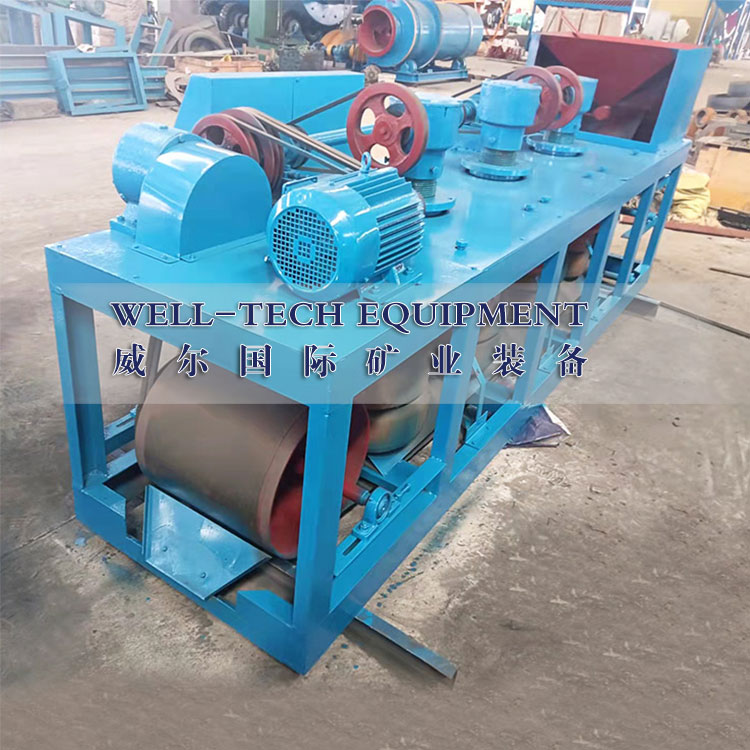

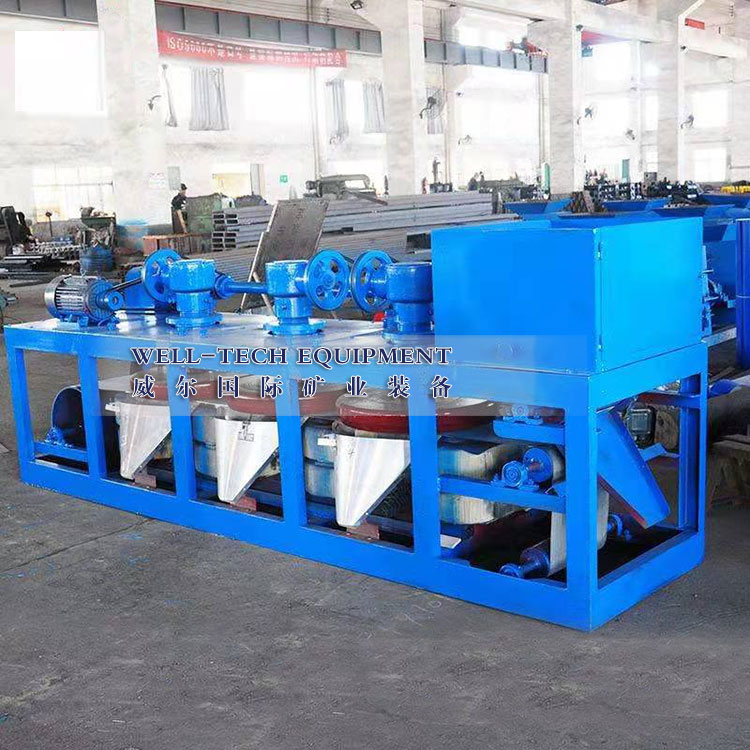

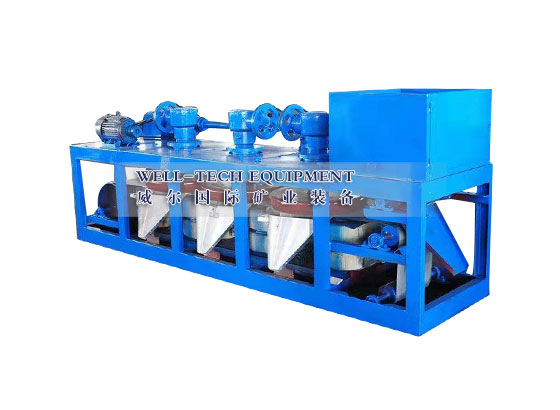

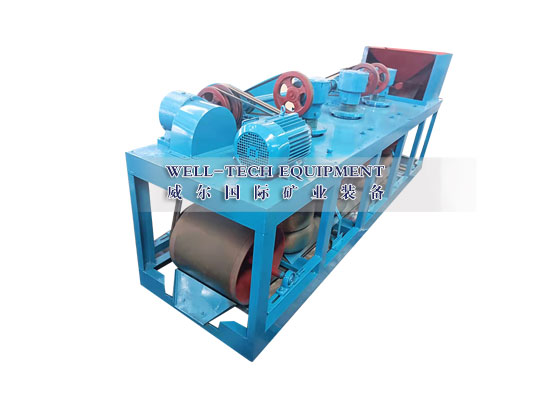

Three-discs High-intensity Magnetic Separator
Three-discs High-intensity Magnetic Separator has been wildly used for ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite,
columbium and tantalum ores, zircon, rutile, monazite, andalusite,
garnet, kyanite, feldspar, quartz and so on.
Working Principle
This machine consists of two sections, i.e. host unit (mechanical) and electrical unit (control cabinet). When the minerals to be separated are loaded into the bin, adjust the clearance between magnetic disc tooth tip and conveying belt to a desirable range (generally about 1mm) and adjust the DC current of control cabinet to appropriate value (generally 4-6 A), depending on the mineral properties, particle size and separation requirements. Feed the materials into the permanent magnetic feeding drum, where the high-conductivity minerals will be removed. Through a feeding plate, the minerals will be uniformly sprayed onto the belt conveyor (The mineral thickness generally between 0.2-0.8mm). When the machine is running, the belt conveyor will send the minerals down below the magnetic disc, where the paramagnetic minerals will be soon absorbed onto the tip of magnetic teeth. When the magnetic disc rotates to the low-intensity magnetic area, they will fall into the concentrate bin under the function of their gravity weight and centrifugal force. The diamagnetic minerals will be conveyed to the tailings bin via belt conveyor and discharged).
Application
This equipment is mainly used for dry separation of weak magnetic minerals such as ilmenite, rare earth ore, chromite, tungsten and tin ores, limonite, columbium and tantalum ores, zircon, rutile, monazite, andalusite, garnet, kyanite, feldspar, quartz and other minerals with magnetic differences or removal of iron in nonmetallic minerals.
|
型号规格 Model
|
单位Unit
|
3PC-600
|
|
磁场强度 Magnetic intensity
|
Gs
|
18000
|
|
磁盘数量 Number of magnetic disk
|
个
Piece
|
3
|
|
磁盘直径 Diameter of magnetic disk
|
mm
|
600
|
|
磁盘转速 Revolution of magnetic disk
|
r/min
|
36
|
|
电源 Power supply
|
V
|
380
|
|
励磁线圈 Exciting coil
|
个
Piece
|
8
|
|
配用电机Motor
|
kw
|
2.2
|
|
励磁功率 Exciting power
|
kw
|
1.6
|
|
线圈温度Coil temperature
|
℃
|
<80
|
|
线圈额定电流 Rated current of coil
|
A
|
1.3-1.8
|
|
供料宽度 Feeding width
|
mm
|
300
|
|
原料粒度 Feeding size
|
mm
|
≤2
|
|
处理量 Capacity
|
kg/h
|
100-500
|
|
外形尺寸 Dimension
|
mm
|
3200×900×1200
|
|
重量 Weight
|
kg
|
2400
|
