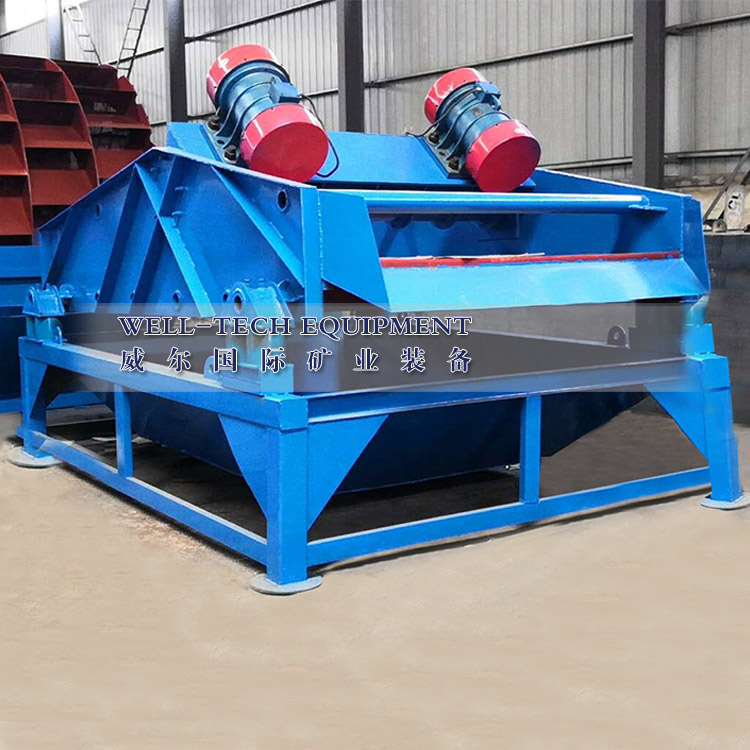

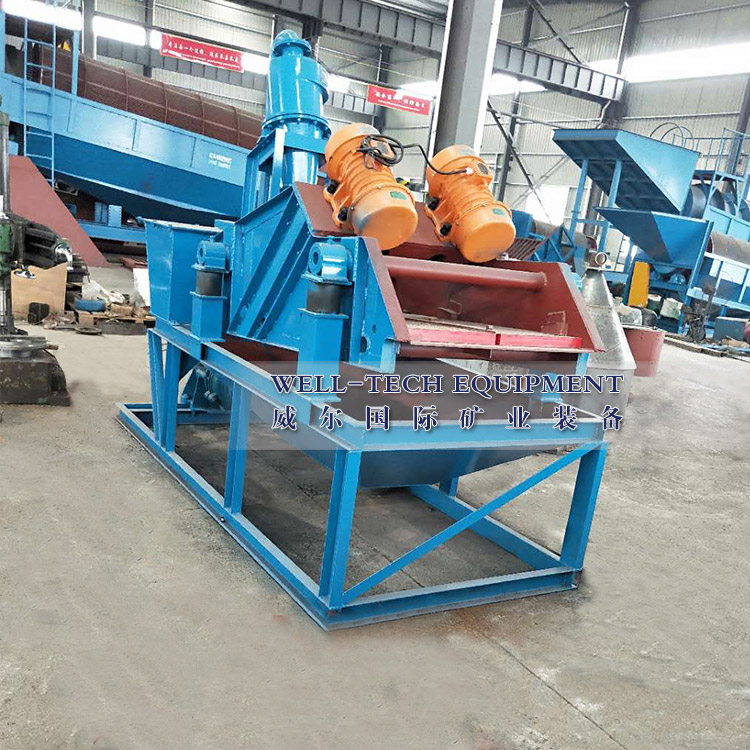

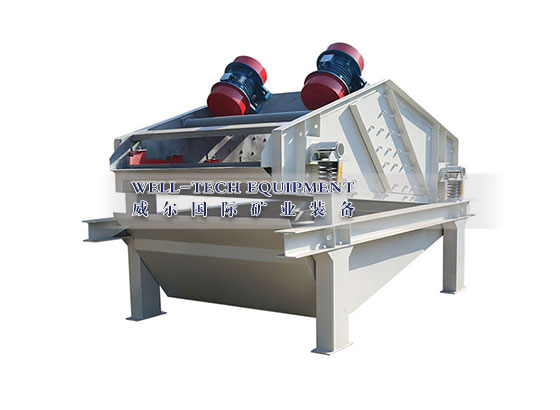

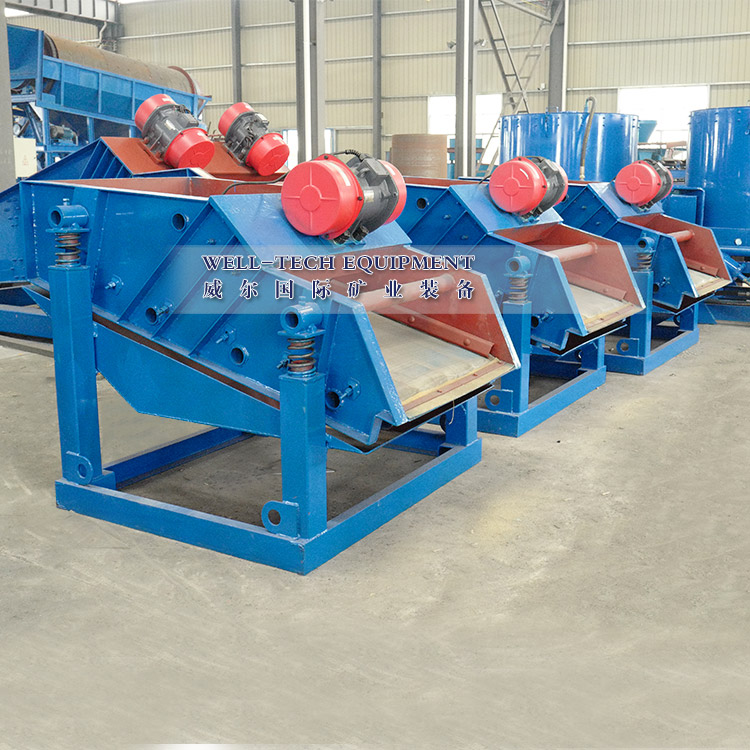

Dewatering Screen

The main deck of the screen slopes upwards at 5o and forms a 45o sloping angle with the back-deck section. The design is unique, screening and dewatering effect is good. The embedded modelar screen deck panels are easily replaced.


DescriptionParameter
Description
The main deck of the screen slopes upwards at 5o and forms a 45o sloping angle with the back-deck section. The design is unique, screening and dewatering effect is good. The embedded modelar screen deck panels are easily replaced. The wearable rubber impact damper is adopted and durable. It’s used for dewatering of tailings.

Main Technical Parameters

Model

Area of screen

(m2)

Power

(kw)

Capacity

(m3/h)

Feeding size

(mm)

Weight

(kg)

Dimension

(mm)

TS0720

1.4

0.75*2

5-10

≤10

0.8

2300*1000*750

TS0920

1.8

1.1*2

10-20

≤10

1.2

2300*1200*750

TS1020

2

1.5*2

10-30

≤10

1.6

2300*1300*750

TS1225

3

2.2*2

50-80

≤10

2.1

2800*1500*800

TS1530

4.5

3*2

100-120

≤10

3.2

3300*1800*800

TS1536

5.4

3*2

120-150

≤10

3.8

3683*1890*1421

TS1836

6.4

4*2

150-180

≤10

4.8

3715*2466*1855

TS1845

8.1

4*2

200-220

≤10

6.5

4515*2449*1987

TS2148

8.8

7.5*2

220-240

≤10

7.6

4915*2785*2142
