Log Washer

Log washer is mainly used to wash the manganese ore, iron ore, phosphate and other minerals, it is usually used to clean and separate the silt and stains from manganese ore, iron ore and other low-grade mineral. Also it suitable for scrubbing material which contains tough insoluble clays, conglomerates or soft stone.


Description
Log washer is mainly used to wash the manganese ore, iron ore, phosphate and other minerals, it is usually used to clean and separate the silt and stains from manganese ore, iron ore and other low-grade mineral. Also it suitable for scrubbing material which contains tough insoluble clays, conglomerates or soft stone.

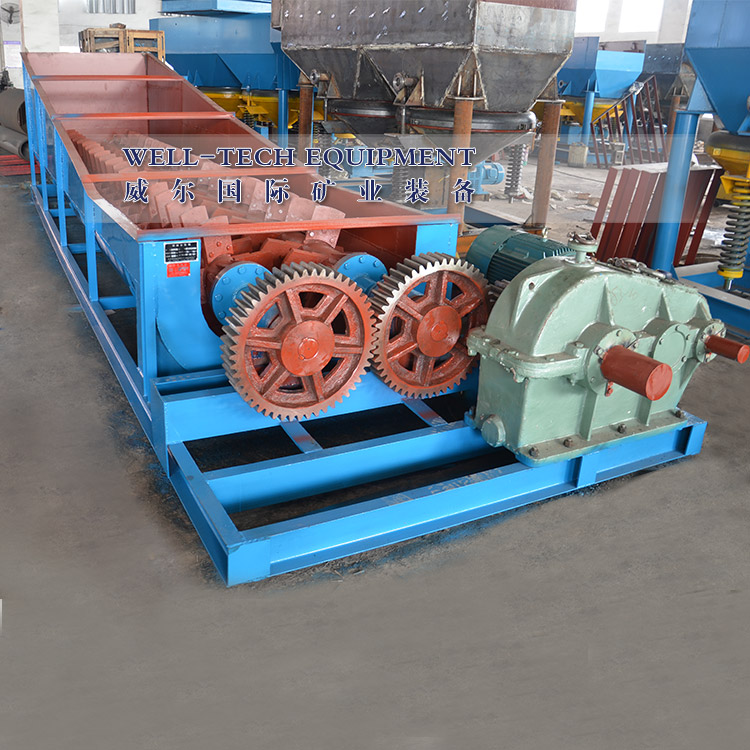

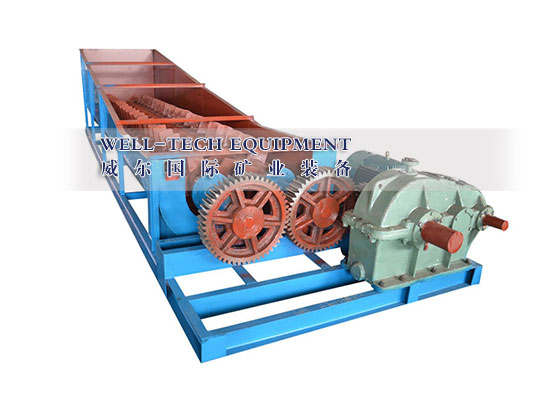

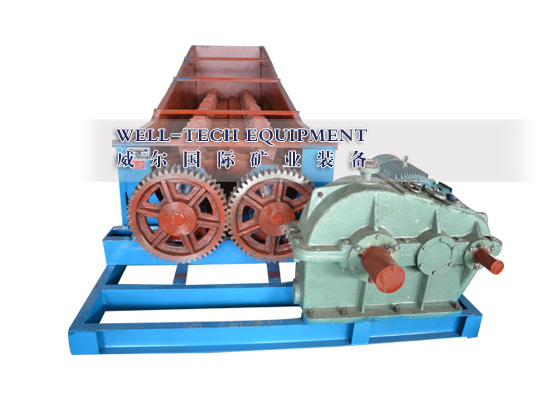

This machine drive the spiral stirring shaft depends on speed reducer and rotate in different directions, and the minerals which enter the tank were washed by water and stir strongly by blade. The sewage was overflowed at the end of tank, the cleaned minerals were lifted up along the blade and discharged at the beginning of tank.


Advantages and Characteristics

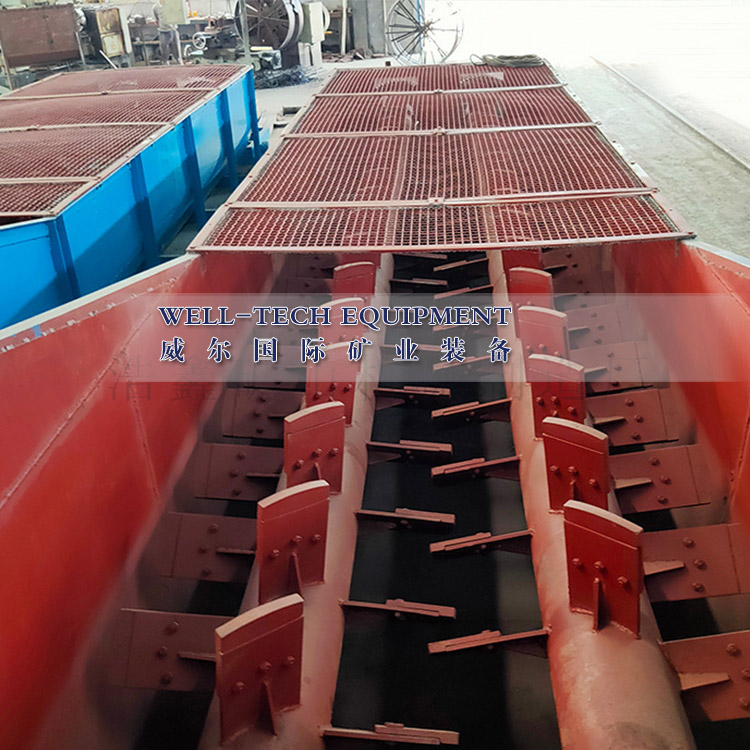

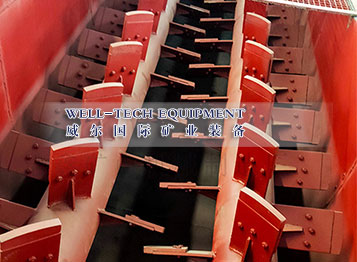

1 Durable washing and conveying paddles
2 Fabricated with heavy duty shafts
3 Oversize bearings and gears

Main Technical Parameters

Model

Spiral Dia.

(mm)

Rotating Speed

(r/min)

Feeding size

(mm)

Tank slope

(o)

Output

(t/h)

Power

(kw)

Weight

(t)

2RXL320

Φ320×3200

28

≤30

≤12

10

4

0.9

2RXL400

Φ400×4600

23

≤30

≤12

20

5.5

1.9

2RXL540

Φ540×4600

23

≤30

≤12

25

7.5

3.9

2RXL750

Φ750×7600

22.7

≤70

≤12

50

11

7.5

2RXL800

Φ800×7600

22

≤70

≤12

70

15

9.5

2RXL914

Φ914×7600

21

≤70

≤12

100

22

12.9
