Description

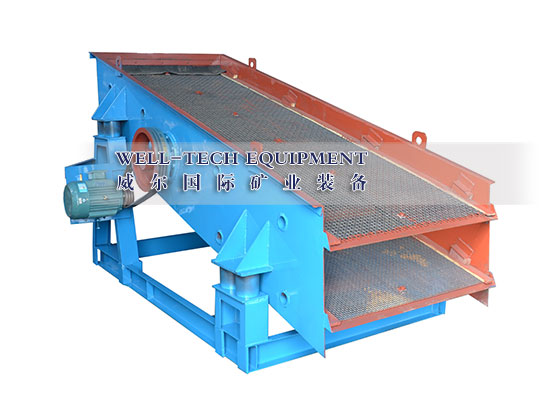

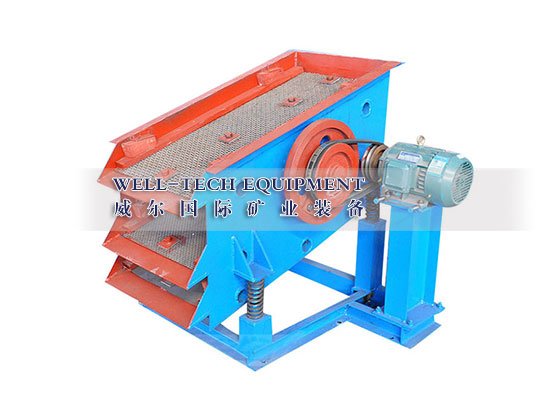

Automatic center vibrating screen can be used for coarse, fine and superfine size separating for ore and coal, also can be used for dewatering or desliming processing for other materials. The automatic center vibrating screen consists of vibration exciter, screening box, supporting device and motor. Motor through V-belt drives the axis of exciter rotating, due to imbalance on the rotating vibration exciter produce the centrifugal inertial force, it let the screening box start vibrating. Change eccentric weight of the vibration exciter can get different amplitudes.
Advantages and Characteristics
1 Due to strong vibrating on the screening box, cause material plugging reduced, so that the screen can get a high screening efficiency and productivity
2 Simple structure, convenient to replace the screen
3 Less power consumption
Main Technical Parameters
|
Model
|
Layer
|
Max.
Feeding size
(mm)
|
Sieve
size
(mm)
|
Capacity
(t/h)
|
Frequency
(r/min)
|
Angle
(°)
|
Motor
Power
(Kw)
|
Dimension
L*W*H
|
Weight
(kg)
|
|
SZZ600×1200
|
1
|
40
|
1-25
|
10-20
|
1000
|
15-25
|
2.2
|
1370×890×330
|
340
|
|
SZZ2600×1200
|
2
|
40
|
1-25
|
10-20
|
1000
|
15-25
|
2.2
|
1370×890×430
|
360
|
|
SZZ900×1800
|
1
|
40
|
1-25
|
20-25
|
1000
|
15-25
|
2.2
|
2150×1358×575
|
550
|
|
SZZ2900×1800
|
2
|
40
|
1-25
|
20-30
|
1000
|
15-25
|
3
|
2489×1358×770
|
620
|
|
SZZ1250×2500
|
1
|
100
|
5-40
|
150
|
850
|
15-20
|
5.5
|
2762×1714×680
|
1100
|
|
SZZ21250×2500
|
2
|
150
|
5-40
|
150
|
850
|
15-20
|
5.5
|
2702×1714×740
|
1300
|
|
SZZ1500×3000
|
1
|
100
|
1-40
|
220
|
800
|
15-25
|
7.5
|
3320×1449×787
|
2100
|
