Description
Spiral classifiers suitable for dewatering, de-medium, desliming and wet and dry classifying in mine.This machine is mainly used in the production flow of metal processing, according to the difference in sedimentation rate of mineral particles and mud, the ore with particle size 14-325 meshes can be classified, it also can separate waste mud or dewatering for the ore. According to liquid level the spiral classifier can be divided into high weir type and submersion (or sinking ) type, The overflow weir of high weir classifier is higher than the center of the spiral axis at lower end, but lower than the upper edge of the spiral blade. The length of liquid level is short, so its surface can directly gets the stirring effect by the spiral blade, therefore it suitable for coarse particle classification, usually the classified particle size is over 0.15mm. The spiral blade of submersion classifier at lower end completely submerged under the liquid level, the classifying area is big and smooth, suitable for classification for fine particle which is less than 0.15mm, its overflow productivity is higher.

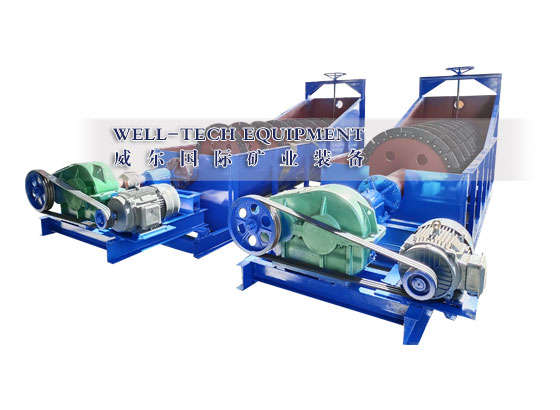

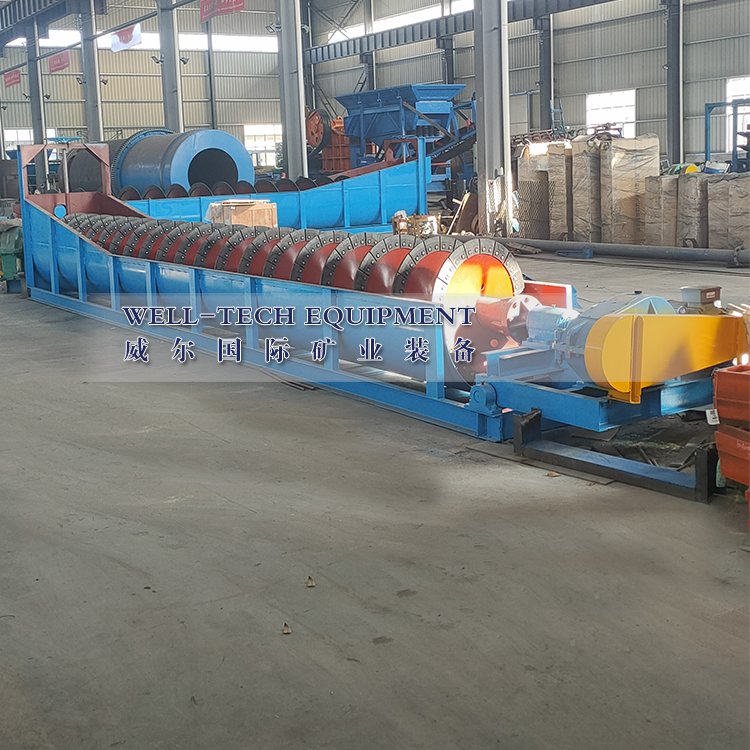

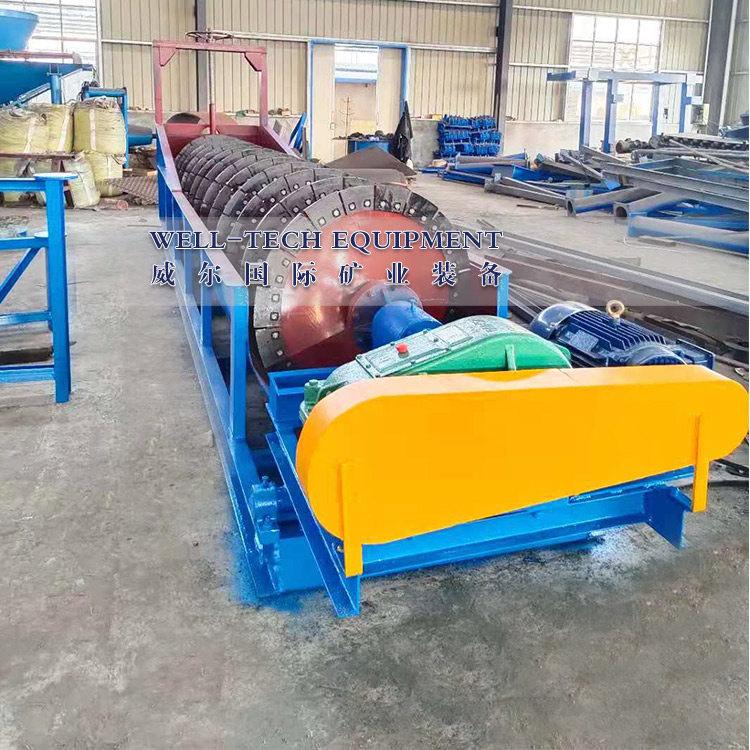

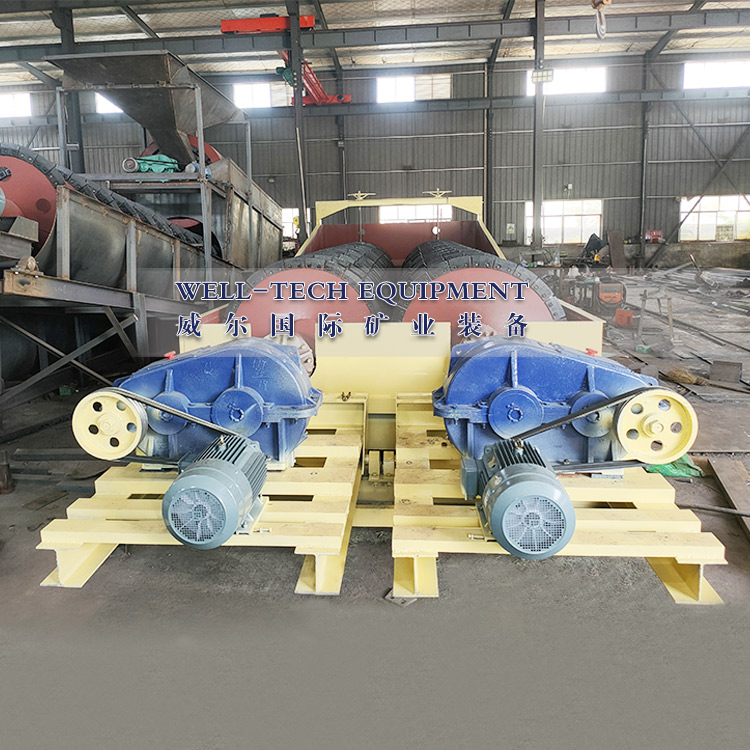

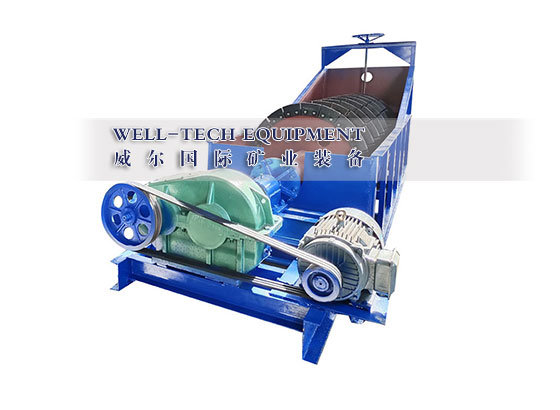

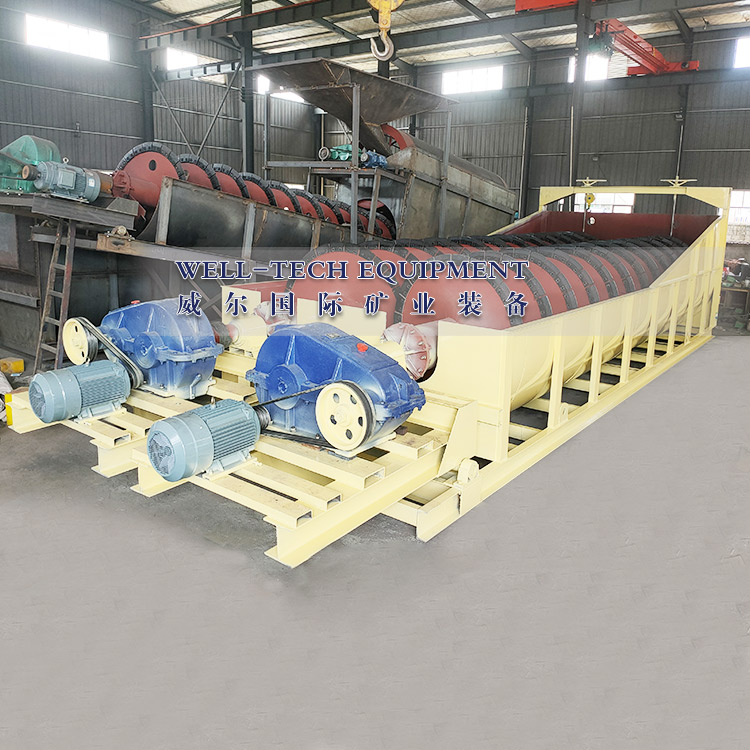

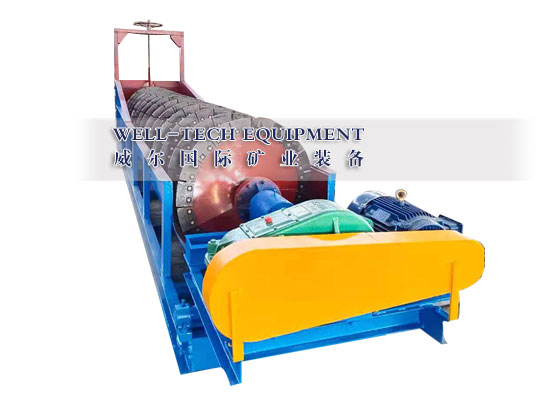

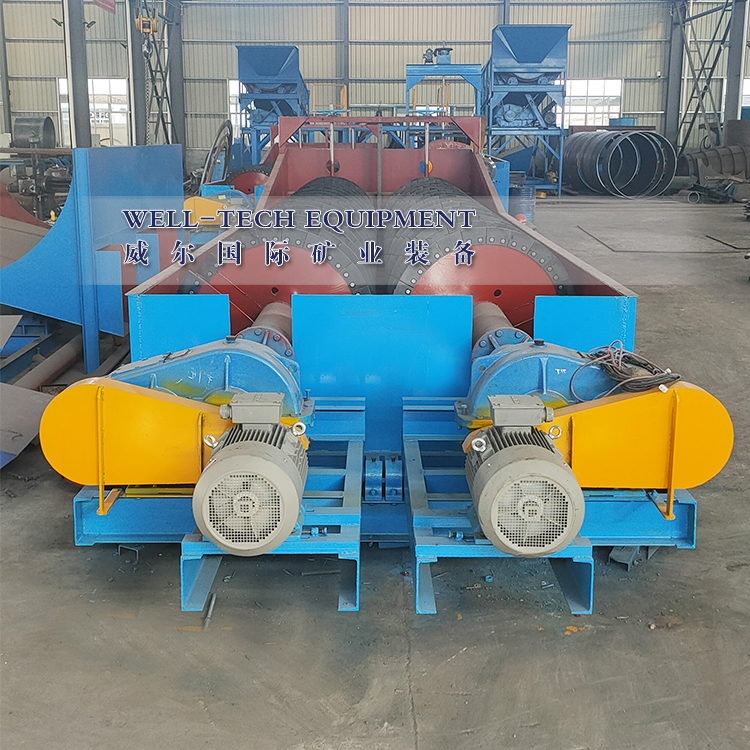

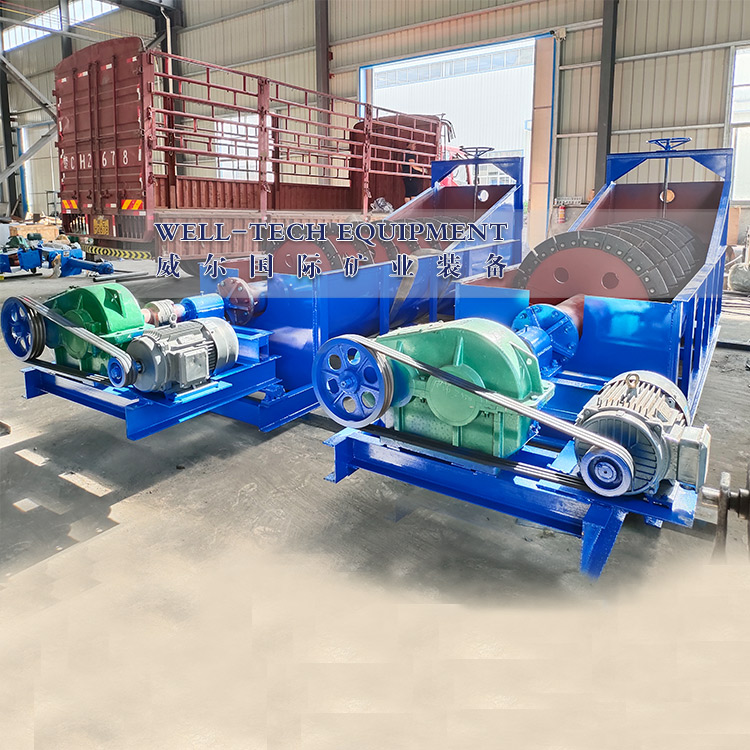

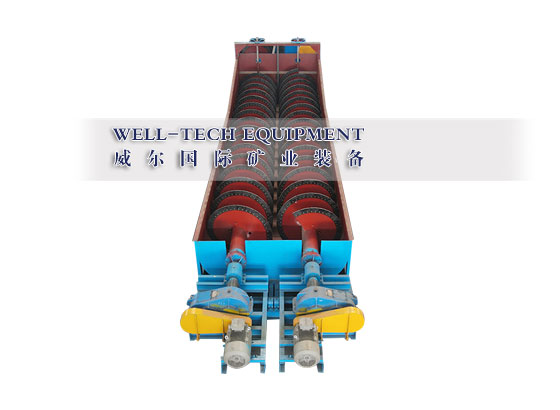

The shape of spiral classifier is a rectangular tank, the tank inclination is 12°to 18.5°, and the bottom of tank seems a semicircle. In the tank equipped with 1 or 2 long axis, and along the axis, continuously installed with spiral blade. The drive mechanism drives the spiral axis start rotation. Slurry is fed from the side of tank, it become settlement classified layer at the bottom. Coarse particles sink to the bottom and then spiral blade transport it to the discharge at the top, at same time it will be dewatered during this transportation, unsettled fine particles carried by slurry flow and discharges from the overflow weir. Classifying process is basically same with the desliming cone, on the classifier tank there is a lifting mechanism which can adjust the distance of blade and bottom , and the axis can be lifted up when close down to avoid that settled sand bury the blade. According to liquid level the spiral classifier can be divided into high weir type and submersion (or sinking ) type, The overflow weir of high weir classifier is higher than the center of the spiral axis at lower end, but lower than the upper edge of the spiral blade. The length of liquid level is short, so its surface can directly gets the stirring effect by the spiral blade, therefore it suitable for coarse particle classification, usually the classified particle size is over 0.15mm. The spiral blade of submersion classifier at lower end completely submerged under the liquid level, the classifying area is big and smooth, suitable for fine particle classification, which is less 0.15mm, and with higher overflow productivity. In addition, there is a low weir spiral classifier, its liquid level lower than the spiral bearing at the lower end, the liquid level is very small, but the stirring effect is strong, mainly used for washing gravel ore containing mud.
Main Technical Parameters
|
Type
|
Model
|
Spiral diameter
(mm)
|
Spiral rotation speed
(r/min)
|
Tank
|
Inclination angle
（°'）
|
Capacity
|
Power
(Kw)
|
Weight
(Kg)
|
|
Length
(mm)
|
Width
(mm)
|
Overflow
(m3)
|
Sand return
(m3)
|
Driving motor
|
Lifting motor
|
|
High Weir Type
Single Spiral
|
FLG-5
|
500
|
8.5-11.5
|
4500
|
555
|
14°-18°30'
|
32
|
143-261
|
1.1
|
0
|
1600
|
|
FLG-7
|
750
|
4.5-9.9
|
5500
|
830
|
14°-18°30'
|
65
|
256-564
|
3
|
0
|
2900
|
|
FLG-10
|
1000
|
3.5-7.6
|
6500
|
1112
|
14°-18°30'
|
85
|
473-1026
|
5.5
|
0
|
4400
|
|
FLG-12
|
1200
|
6
|
6500
|
1372
|
14°-18°30'
|
155
|
1170-1600
|
5.5
|
1.5
|
8800
|
|
FLG-15
|
1500
|
2.5-6
|
8265
|
1664
|
14°-18°30'
|
235
|
1140-2740
|
7.5
|
2.2
|
11680
|
|
FLG-20
|
2000
|
3.6-5.5
|
8400
|
2200
|
14°-18°30'
|
400
|
3890-5940
|
11/15
|
3
|
20450
|
|
FLG-24
|
2400
|
3.64
|
9130
|
2600
|
14°-18°30'
|
580
|
6800
|
15
|
3
|
25650
|
|
FLG-30
|
3000
|
3.2
|
12500
|
3200
|
14°-18°30'
|
890
|
11650
|
22
|
4
|
37000
|
|
High Weir Type
Double Spiral
|
2FLG-12
|
1200
|
6
|
6500
|
2600
|
14°-18°30'
|
310
|
2340-3200
|
5.5×2
|
1.5×2
|
15840
|
|
2FLG-15
|
1500
|
2.5-6
|
8250
|
3200
|
14°-18°30'
|
470
|
2280-5480
|
7.2×2
|
2.2×2
|
22100
|
|
2FLG-20
|
2000
|
3.6-5.5
|
8400
|
4280
|
14°-18°30'
|
800
|
7780-11880
|
11×2
15×2
|
3×2
|
36400
|
|
2FLG-24
|
2400
|
3.67
|
9130
|
5100
|
14°-18°30'
|
1160
|
13600
|
30
|
3×2
|
45874
|
|
2FLG-30
|
3000
|
3.2
|
12500
|
6300
|
14°-18°30'
|
1785
|
23300
|
45
|
4×2
|
73030
|
