Mobile Trommel Washing Plant

The mobile trommel washing plant is a optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation. Its advantage: less investment, less labor, fast return of investment, simple operation, mobile etc.


Descriptions

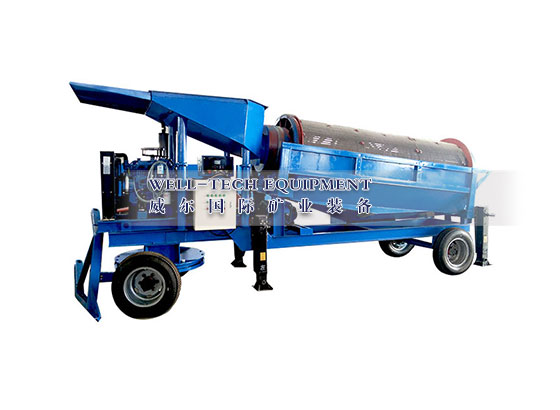

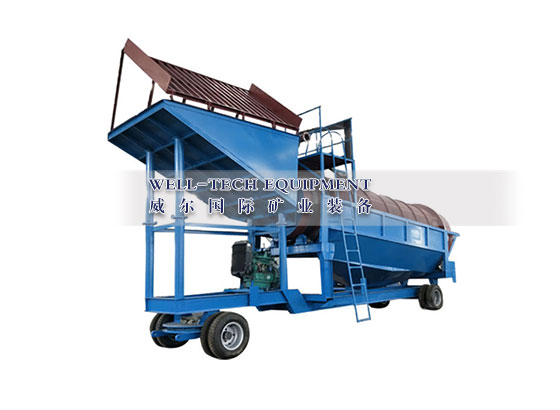

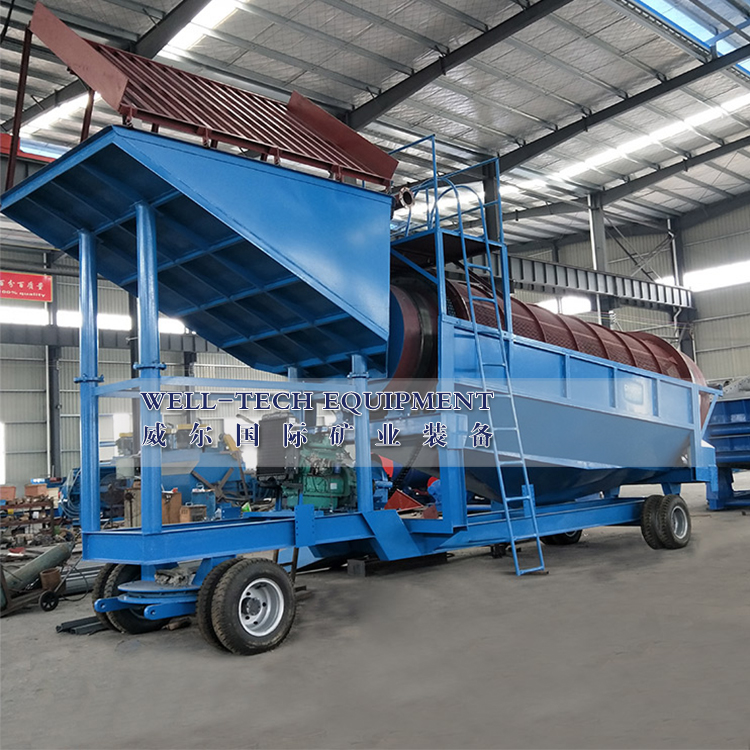

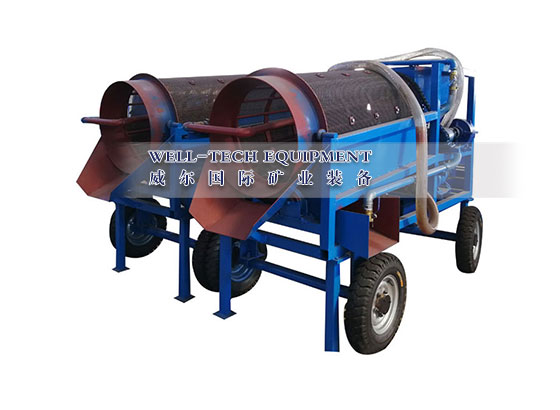

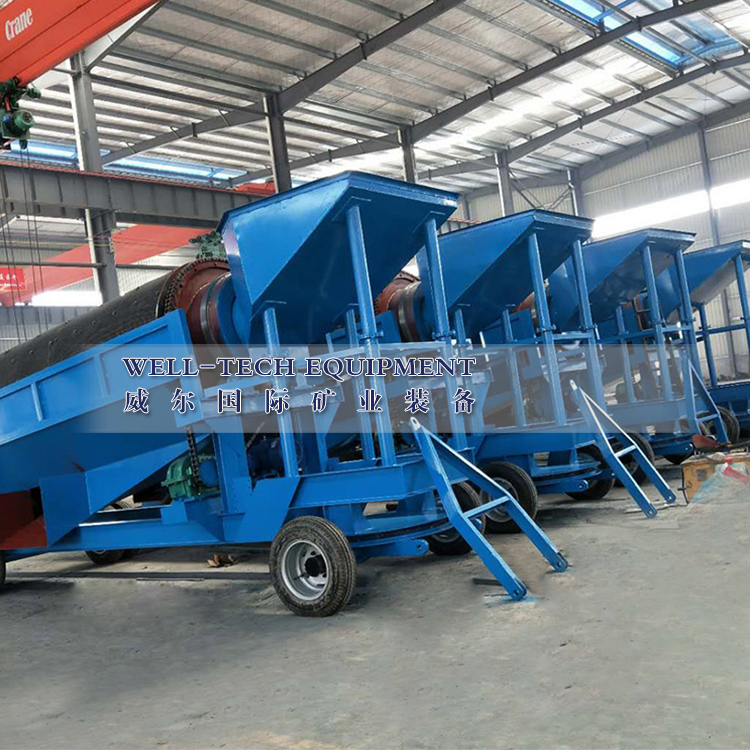

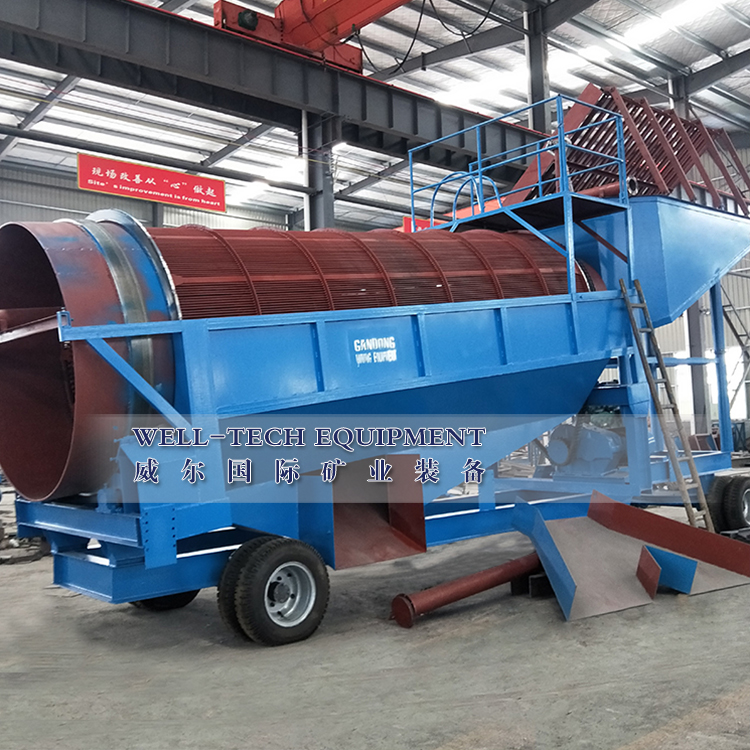

Mobile trommel washing plant is composed by hopper, trommel, chassis, tires, turntable, generator, water pump, gearing, control panel and gold recovery sluice. The mobile trommel screen is a optimized removable platform for gold recovery, applicable to small or medium scale of placer gold ore processing that need mobile operation. Its advantage: less investment, less labor, fast return of investment, simple operation , mobile etc.

The whole drum adopts strong and reinforced roller support and gear side drive, or chain pulley drive. The screen using high manganese steel woven net , It has large processing capacity, high efficiency , long service life , and easy to replace, no clogging. The chassis using heavy duty beam and equipped with six tires has sturdy construction, high load capacity, moreover the front wheel can achieve 180o turn , flexible move, let the mobile platform can easily cope with all kinds of complicated road. In addition, the chassis equipped with other four mechanical support legs, they can reinforce the bearing capacity of the whole chassis, ensure the equipment run more smoothly , reliable and safe during load running . Generator & motor separated drive, or direct diesel engine drive, low failure rate, easy maintenance. The gold recovery sluice covered by professional gold recovery carpet made of polyethylene non-woven, strong catch ability, high efficiency, it is also effective for fine particle gold.



The drum can be divided into heavy duty and light duty.

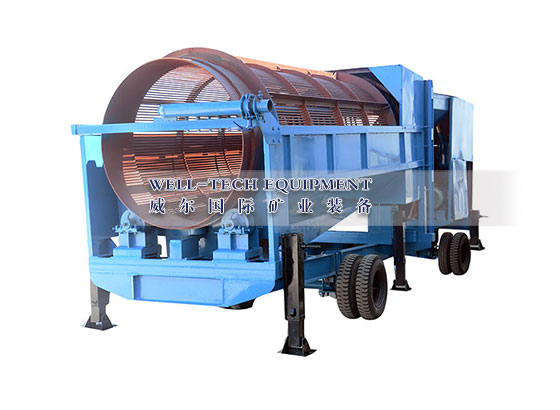

Heavy duty: the drum has a double-layer structure, inner layer with dense steel bar structure, which can prevent large material impact the screen directly, greatly improved the service life and screening efficiency for the outer screen.

Light duty: the drum has a single layer screen, it is used in the material that no large material included, its advantage is light, which can reduce the weight of the whole equipment and energy consumption.


Main Technical Parameters

Model

Capacity
(t/h)

Power
(kw)

Drum diameter

(mm)

Drum length

(mm)

Screen size
(mm)

Dimension
(mm)

Weight
(kg)

MGT1030

30-50

Diesel engine

1000

3000

320

5860*1400*2550

3900

MGT1230

50-80

1200

3000

5860*1600*2600

5500

MGT1545

80-120

1500

4500

8310*2180*3030

8600

MGT1848

120-180

1800

4800

8500*2450*4000

9300
