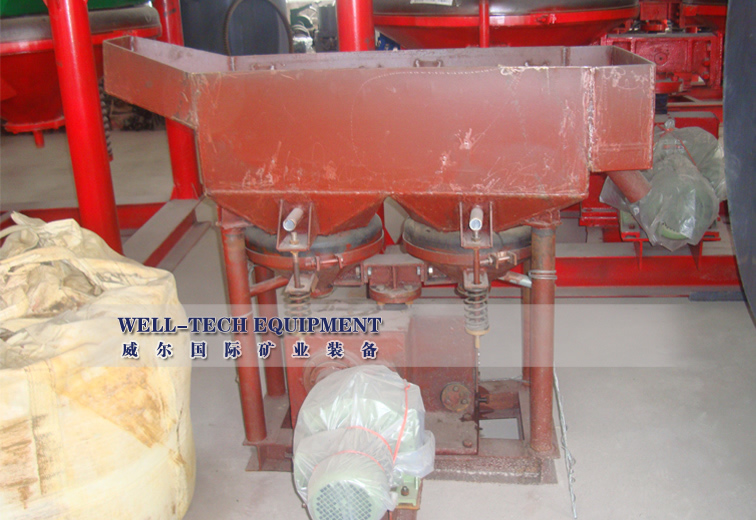

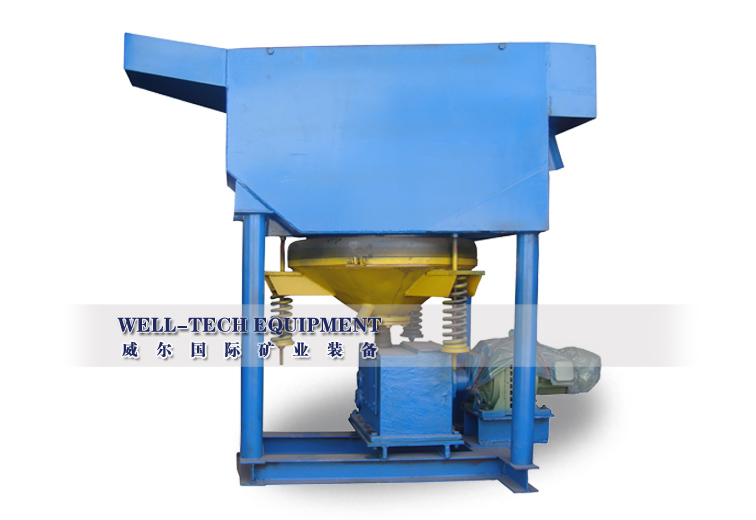

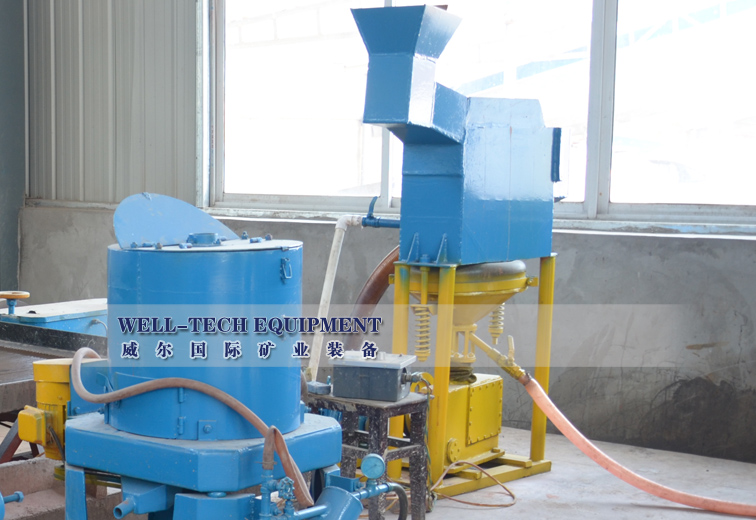

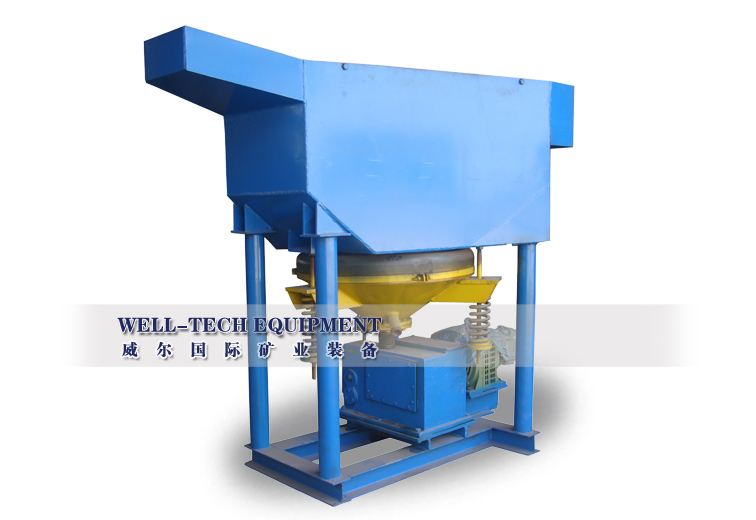

Laboratory Jig Machine

Saw-tooth Wave Laboratory Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow.


DescriptionParameter

Saw-tooth Wave Laboratory Jig is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine Wave Jig. The difference between Saw-tooth Wave Jig and Sine Wave Jig is that the pulsation curve for jigging is saw-tooth wave shape, with speedy upward flow and slow downward flow.

Advantages and Characteristics
1 High capacity
2 High concentration ratio and high recovery
3 Easy to install, operate and maintain
4 The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5 Saving water 30-40% than ordinary jig
6 The pulsation speed very easy adjusted by regulator
7 Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc

Main Technical Parameters

Model

Hutch

Diaphragm

Feeding Size

(mm)

Makeup water

(m3/t)

Makeup water pressure

(Mpa)

Capacity

(t/h)

Power

(kw)

Dimensions

(mm)

Weight

(Kg)

Shape

Area

(m2)

Stroke

(mm)

Frequency of stroke

(r/min)

JT0.57-1

Trapezoid

0.57

8.5—12

10—17

12-21

80-180

<6

1-2

≥0.05

1.5-3

1.5

1550×780×1530

610

JT1-1

Trapezoid

1.04

<10

2-3

2.5-5

2.2

2270×1110×1890

900
