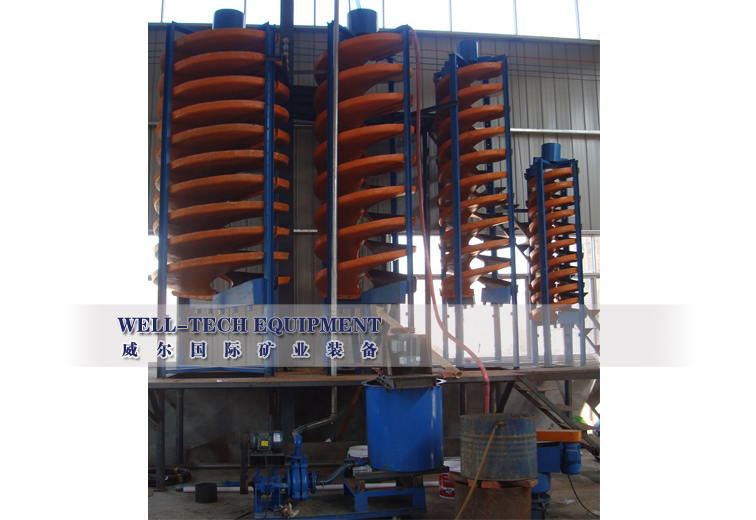

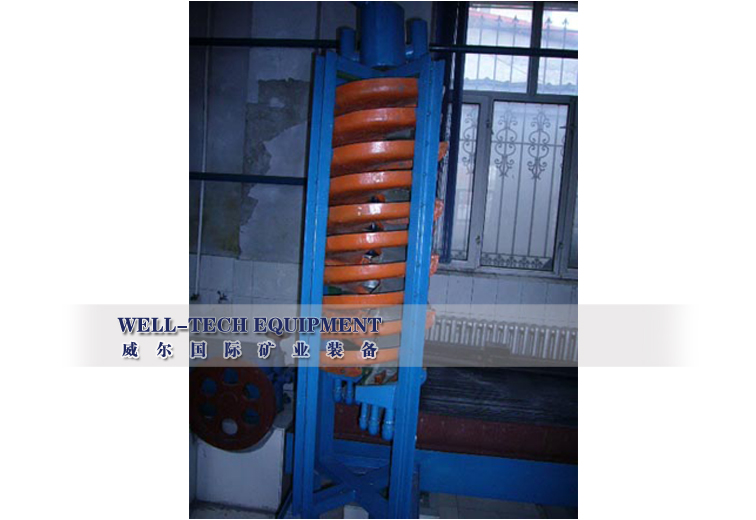

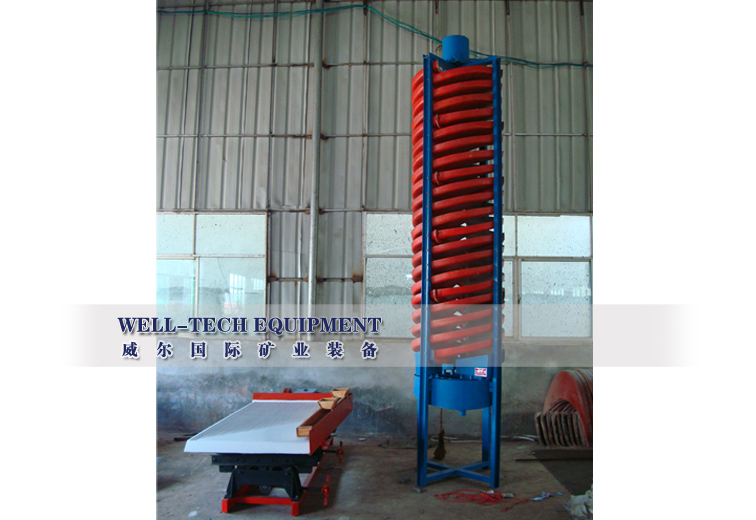

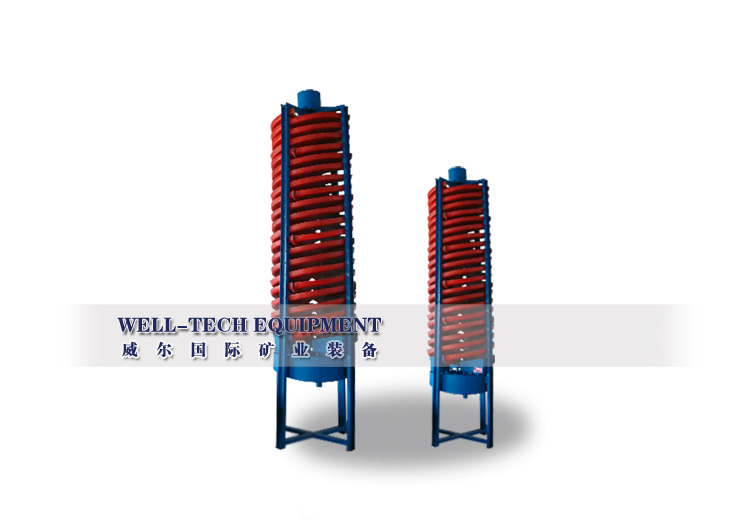

Laboratory Spiral Chute

Laboratory Spiral Chute is made of the fiberglass lined with wear-resistant resin and emery. It is the domestic advanced level, the new highly effective equipment, it has been widely used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon , other low-grade ores or non-metallic minerals which have a enough specific gravity difference.


DescriptionParameter
Laboratory Spiral Chute is made of the fiberglass lined with wear-resistant resin and emery. It is the domestic advanced level, the new highly effective equipment, it has been widely used in to enrichment the particle size 0.3-0.02 millimeters fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon , other low-grade ores or non-metallic minerals which have a enough specific gravity difference.

Our company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified. We make the serialized with a special kind of grooved spiral separator to be selected by colored, ferrous metal mine, coal chemical industry, coal dressing, sulfur factory as well as the scientific research, the design department, the colleges and universities test chamber.

Model

5LL-600

5LL-400

Spiral Diameter（mm）

600

400

Spiral Pitch（mm）

450/360 /270

240/180

Starts

2

2

Feeding Sizes (mm)

0.2-0.02

0.2-0.02

Feeding Density (%)

25-55

25-55

Capacity (t/h)

0.4-0.8

0.15-0.2

Dimension
(mm)

Length

700

460

Width

700

460

Height

2600

1500

Weight（Kg）

150

50
