Brief Introduction

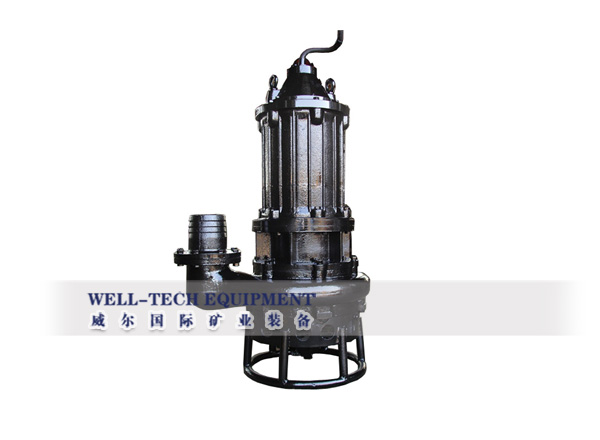

Submersible slurry pump adopt world advanced techniques, designed for abrasion-resistant material, low energy consumption, long wear life and easy maintenance. Add a set of mix impeller to the bottom of the pump, which can help the slurry highly speed flow and highly concentration transport without any assistant equipment. Excellent seal equipment can balance the pressure of seal chamber to keep the mechanical seal work effectively. The motor was designed for protection equipment including overheating protection and inlet test, so that it can work for long hours under rugged environment. It also can be designed for condensation test and bearing thermoscope to meet your need.
Advantages and Characteristics
1.Excellent performance, light weight, small volume, easy to install;
2.No suction lift limited, high efficiency,
3.Low investment, no vacuum pump required;
4.Easy to operate, no mixer required;
5.Easy to manage, no constructing foundation required;
6.Easy to control the density of slurry by adjust the depth of the pump;
7.No noise and shake under the water, working credibly.
|
型号
Model
|
流量
Flow (m3/h)
|
扬程
Head
(m)
|
功率
Power
(Kw)
|
转速
Speed
(r/min)
|
间断通过最大粒度
Particle max handled occasionally
(mm)
|
|
80ZQ40-15-5.5
|
40
|
15
|
5.5
|
1440
|
10
|
|
80ZQ30-30-7.5
|
30
|
30
|
7.5
|
1440
|
20
|
|
80ZQ40-40-18.5
|
40
|
40
|
18.5
|
1460
|
12
|
|
100ZQ60-25-11
|
60
|
25
|
11
|
1460
|
21
|
|
100ZQ100-18-11
|
100
|
18
|
11
|
1460
|
21
|
|
100ZQ80-30-15
|
80
|
30
|
15
|
1460
|
21
|
|
100ZQ150-15-15
|
150
|
15
|
15
|
960
|
24
|
|
100ZQ100-30-22
|
100
|
30
|
22
|
1480
|
28
|
|
100ZQ130-40-30
|
130
|
40
|
30
|
1480
|
24
|
|
100ZQ100-50-37
|
100
|
50
|
37
|
1480
|
24
|
|
100ZQ160-38-45
|
160
|
38
|
45
|
1480
|
24
|
|
100ZQ200-40-55
|
200
|
40
|
55
|
1480
|
24
|
|
150ZQ150-20-18.5
|
150
|
20
|
18.5
|
980
|
32
|
|
150ZQ150-25-22
|
150
|
25
|
22
|
980
|
32
|
|
150ZQ200-15-22
|
200
|
15
|
22
|
980
|
32
|
|
150ZQ150-30-30
|
150
|
30
|
30
|
980
|
32
|
|
150ZQ100-35-30
|
100
|
35
|
30
|
980
|
32
|
|
150ZQ200-30-45
|
200
|
30
|
45
|
980
|
32
|
|
150ZQ250-35-55
|
250
|
35
|
55
|
980
|
32
|
|
150ZQ220-45-55
|
220
|
45
|
55
|
1480
|
32
|
|
200ZQ300-40-75
|
300
|
40
|
75
|
980
|
48
|
|
200ZQ350-35-75
|
350
|
35
|
75
|
980
|
48
|
|
200ZQ450-30-90
|
450
|
30
|
90
|
980
|
48
|
|
200ZQ480-37-110
|
480
|
37
|
110
|
980
|
48
|
|
200ZQ500-50-132
|
500
|
50
|
132
|
980
|
48
|
|
200ZQ470-60-160
|
470
|
60
|
160
|
980
|
48
|
|
300ZQ1000-18-110
|
1000
|
18
|
110
|
740
|
96
|
|
300ZQ1000-22-132
|
1000
|
22
|
132
|
740
|
96
|
