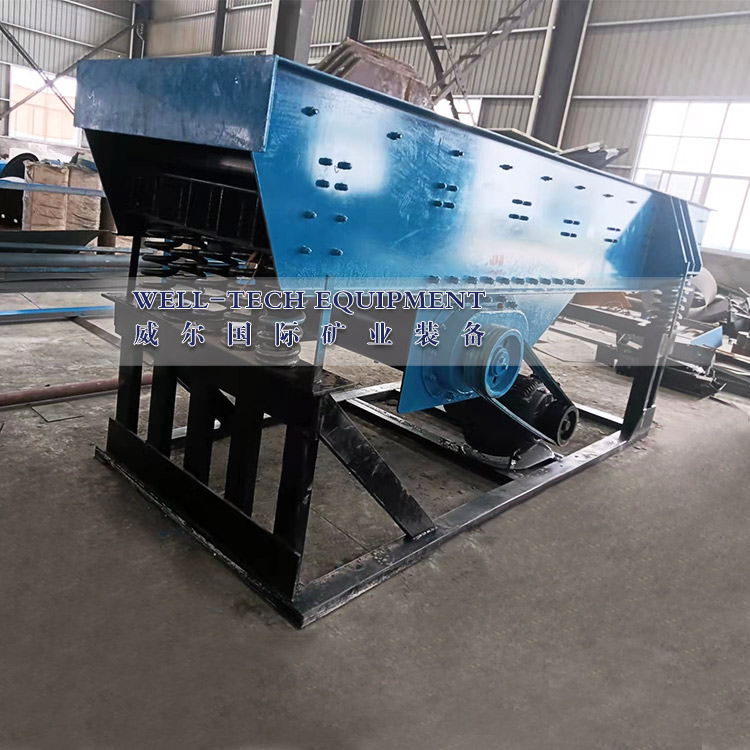

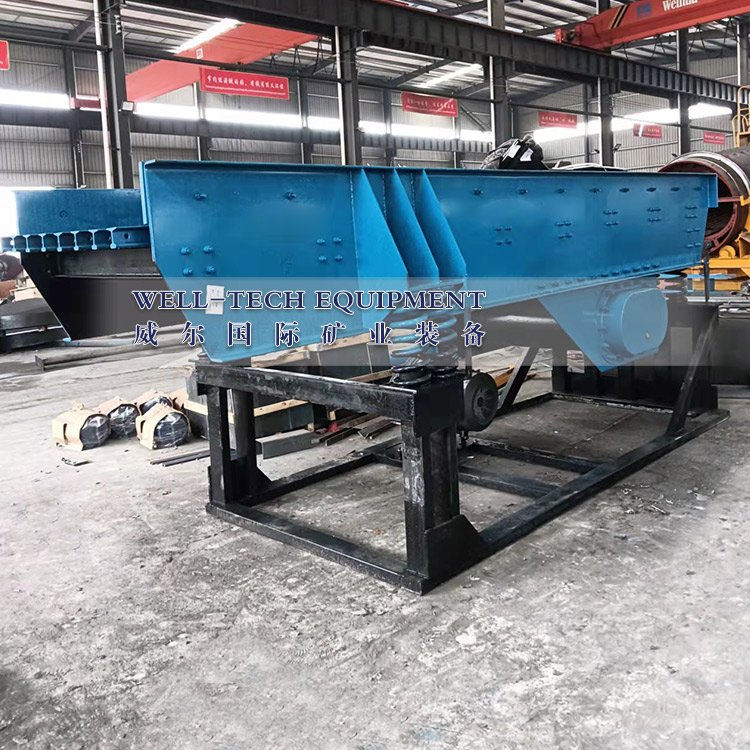

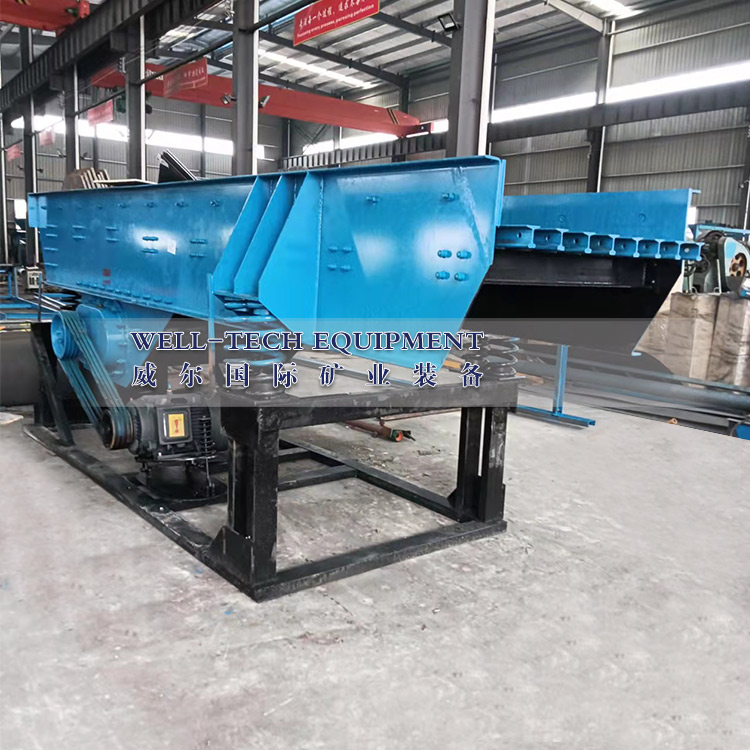

ZSW Vibrating Feeder

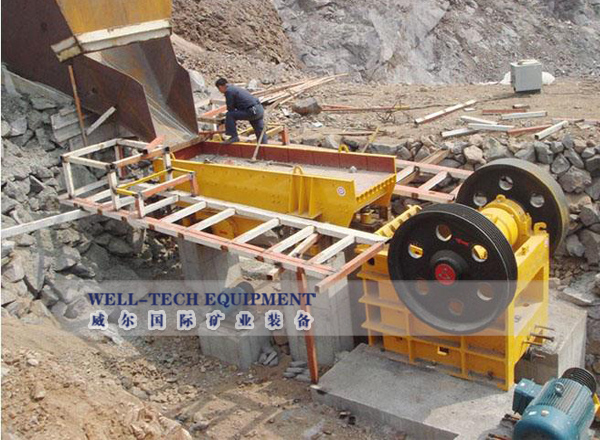

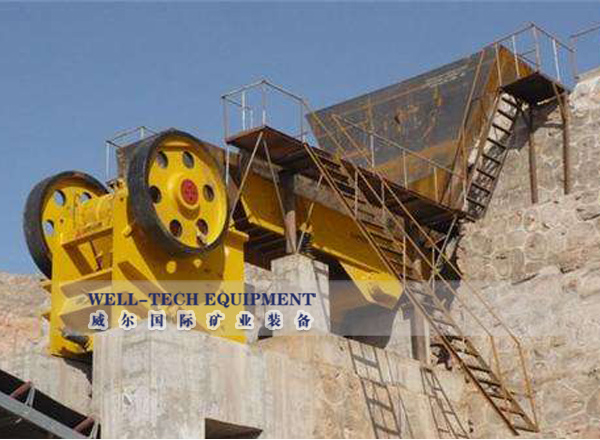

The ZSW Vibrating Feeder is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line.


Brief Introduction
The ZSW Vibrating Feeder is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line.
ZSW Vibrating Feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
ZSW Vibrating Feeder can feed the materials in bulk or cubic evenly, Which has the features of even feeding, It is widely used in sand making production line, stone crushing line, etc.

Advantages and Characteristics
1. Big allowedness for feeding size and big capacity;
2. Compact structure, stable vibration, reliable operation, long service life;
3. Pre-screening for material, various impurities removed.



型号

Model

料槽尺寸

Feed trough size

(mm)

最大进料粒度

Max feed size

(mm)

偏心轴转速

Eccentric shaft speed

(r/min)

处理能力

Capacity

(t/h)

功率

Power

(Kw)

重量

Weight

(T)

外形尺寸

Dimension

(mm)

ZSW380*96

3800*960

<500

500-714

90-100

11

3.98

3882*2224*2121

ZSW-490*96

4900*960

<500

500-800

120-240

15

5

4957*2277*2150

ZSW-490*110

4900*1100

<580

500-800

120-280

15

5.32

4957*2400*2150

ZSW-590*110

5900*1100

<600

750

350

22

6.13

6000*2500*2150

ZSW-600*130

6000*1300

<750

400-800

400-560

22

7.8

6082*2580*2083
