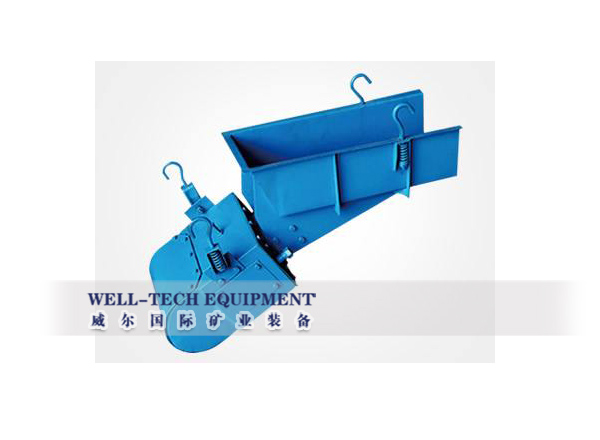

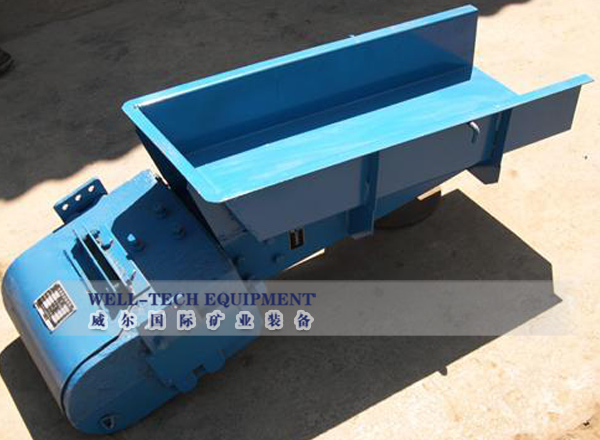

GZ type electromagnetic vibrating feeder used for the materials from the storage bin supply to the receiving device uniformly or quantitatively, is the necessary equipment to implement automated assembly line.
Working principle
The electromagnetic vibrating feeder utilizes electromagnetic vibrating device to drive minerals to reciprocate in the direction of dip. When the vertical component of accelerated speed of feeder exceeds accelerated speed, minerals are tossed upward and leap forward in parabolic fashion. It takes 1/5 second to finish the rising and falling. The chute vibrates for one time and subsequently the minerals are tossed for one time. The chute vibrate at a frequency 3000/minute. Correspondingly, minerals are tossed upward and leap forward. So minerals can continuously and uniformly move forward and feeding is achieved.
Application
1. Bulk, granular and powder-like material of the uniform continuous feeding.
2. Belt conveyor, bucket elevator, screening equipment, cement mill, crusher, grinder and the viscosity of the industrial sector of the powder feed material feeding device.
3. Automatic batching, quantitative packaging and etc.
4. Widely used in mining, metallurgy, building materials, coal, light industry, chemical industry, electric power, machinery, food, medicine and other industries.
Advantages and Characteristics
1.Small volume, light weight, simple structure, convenient installation, convenient repair, low operation cost.
2.Adoption the principle of the mechanical vibration, and less energy consumption.
3.Change the volume of flow at any time.
4.Centralized control and automatic control of production process.
5.Small wear of feeding tank.
6.The feeding tank made of alloy-steel plate could convey heat and corrosive materials.
Model |
Capacity |
Feeding size |
Double amplitude |
Vibration frequency |
Voltage |
Working current (A) |
Effective power |
Weight |
||
Level |
-10° |
Working |
Display |
|||||||
GZ1 |
5 |
7 |
50 |
1.75 |
3000 |
220 |
1.34 |
1 |
0.06 |
77 |
GZ2 |
10 |
14 |
50 |
3.0 |
2.3 |
0.15 |
151 |
|||
GZ3 |
25 |
35 |
75 |
4.6 |
3.5 |
0.2 |
233 |
|||
GZ4 |
50 |
70 |
100 |
8.4 |
7 |
0.45 |
460 |
|||
GZ5 |
100 |
140 |
150 |
12.7 |
10.6 |
0.65 |
668 |
|||
GZ6 |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1271 |
|
GZ7 |
250 |
350 |
300 |
24.6 |
20 |
2.5 |
1920 |
|||
GZ8 |
400 |
560 |
300 |
39.4 |
32 |
4.0 |
3040 |
|||
GZ9 |
600 |
840 |
500 |
47.6 |
38.6 |
5.5 |
3750 |
|||
GZ10 |
750 |
1050 |
500 |
39.4×2 |
32×2 |
4.0×2 |
6491 |
|||
GZ11 |
1000 |
1400 |
500 |
47.6×2 |
38.6×2 |
5.5×2 |
7680 |
Model |
Capacity |
Feeding size |
Double amplitude |
Vibration frequency |
Voltage |
Working current (A) |
Effective power |
Weight |
||
Level |
-10° |
Working |
Display |
|||||||
GZ1 |
5 |
7 |
50 |
1.75 |
3000 |
220 |
1.34 |
1 |
0.06 |
77 |
GZ2 |
10 |
14 |
50 |
3.0 |
2.3 |
0.15 |
151 |
|||
GZ3 |
25 |
35 |
75 |
4.6 |
3.5 |
0.2 |
233 |
|||
GZ4 |
50 |
70 |
100 |
8.4 |
7 |
0.45 |
460 |
|||
GZ5 |
100 |
140 |
150 |
12.7 |
10.6 |
0.65 |
668 |
|||
GZ6 |
150 |
210 |
200 |
1.5 |
380 |
16.4 |
13.3 |
1.5 |
1271 |
|
GZ7 |
250 |
350 |
300 |
24.6 |
20 |
2.5 |
1920 |
|||
GZ8 |
400 |
560 |
300 |
39.4 |
32 |
4.0 |
3040 |
|||
GZ9 |
600 |
840 |
500 |
47.6 |
38.6 |
5.5 |
3750 |
|||
GZ10 |
750 |
1050 |
500 |
39.4×2 |
32×2 |
4.0×2 |
6491 |
|||
GZ11 |
1000 |
1400 |
500 |
47.6×2 |
38.6×2 |
5.5×2 |
7680 |
